Front Bumper Fascia Extension Replacement (DX)

WARNING: This page is about a different car, the 2009 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

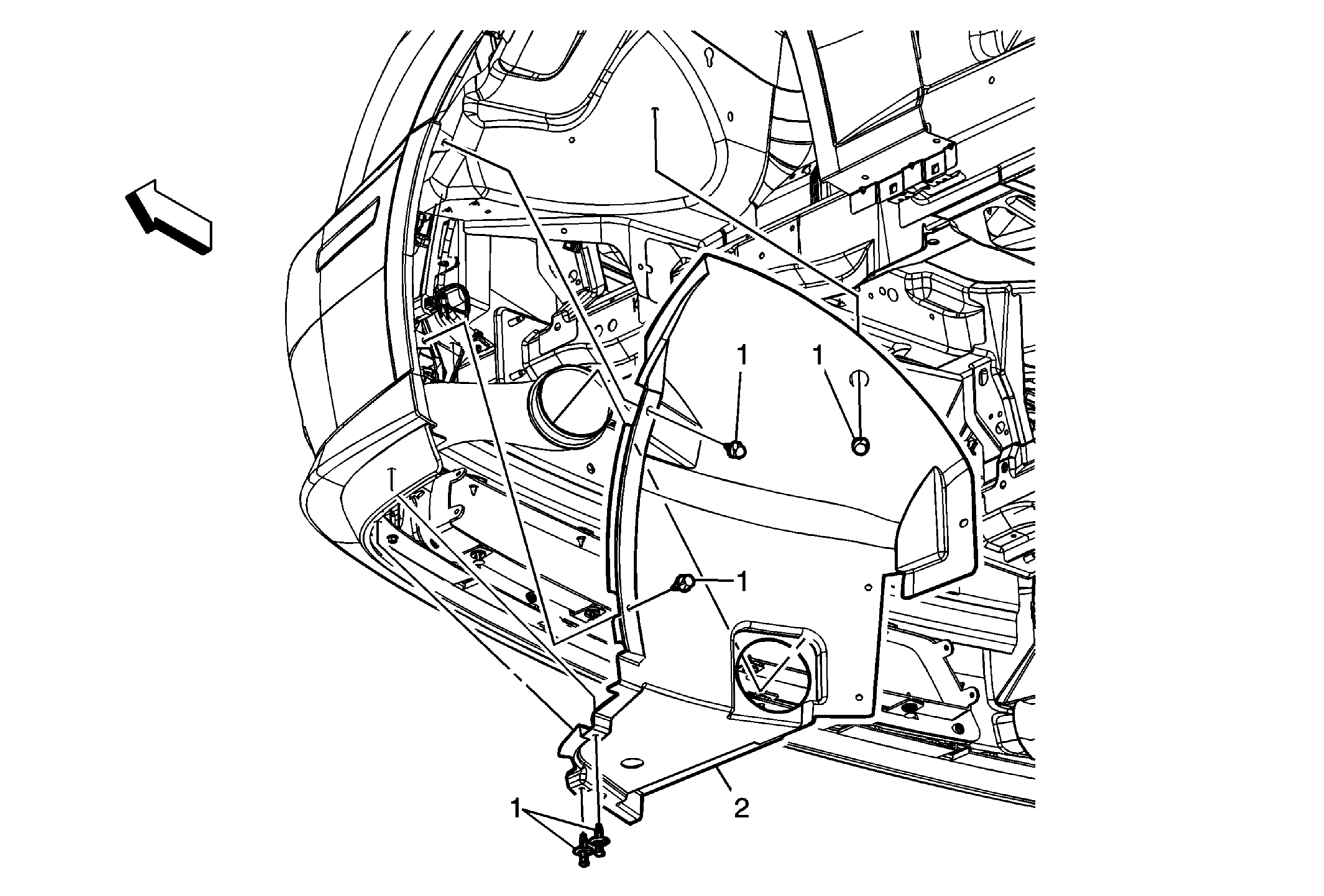

Fig 1: Locating Front Bumper Fascia Extension Fasteners (DX)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the plastic retainer holding the engine splash shield to the body. Refer to Engine Splash Shield Replacement . Remove the front wheelhouse liner to front fascia extension plastic retainer. Refer to Front Wheelhouse Liner Replacement . Remove the front air deflector. Refer to Front Air Deflector Replacement .
1	Front Bumper Fascia Extension Plastic Retainer (Qty: 5)
2	Front Bumper Fascia Extension

Callout

Component Name

Preliminary Procedures

Remove the plastic retainer holding the engine splash shield to the body. Refer to Engine Splash Shield Replacement .
Remove the front wheelhouse liner to front fascia extension plastic retainer. Refer to Front Wheelhouse Liner Replacement .
Remove the front air deflector. Refer to Front Air Deflector Replacement .

Front Bumper Fascia Extension Plastic Retainer (Qty: 5)

Front Bumper Fascia Extension
