Torque Converter Fluid Seal Replacement

WARNING: This page is about a different variant/trim than selected.

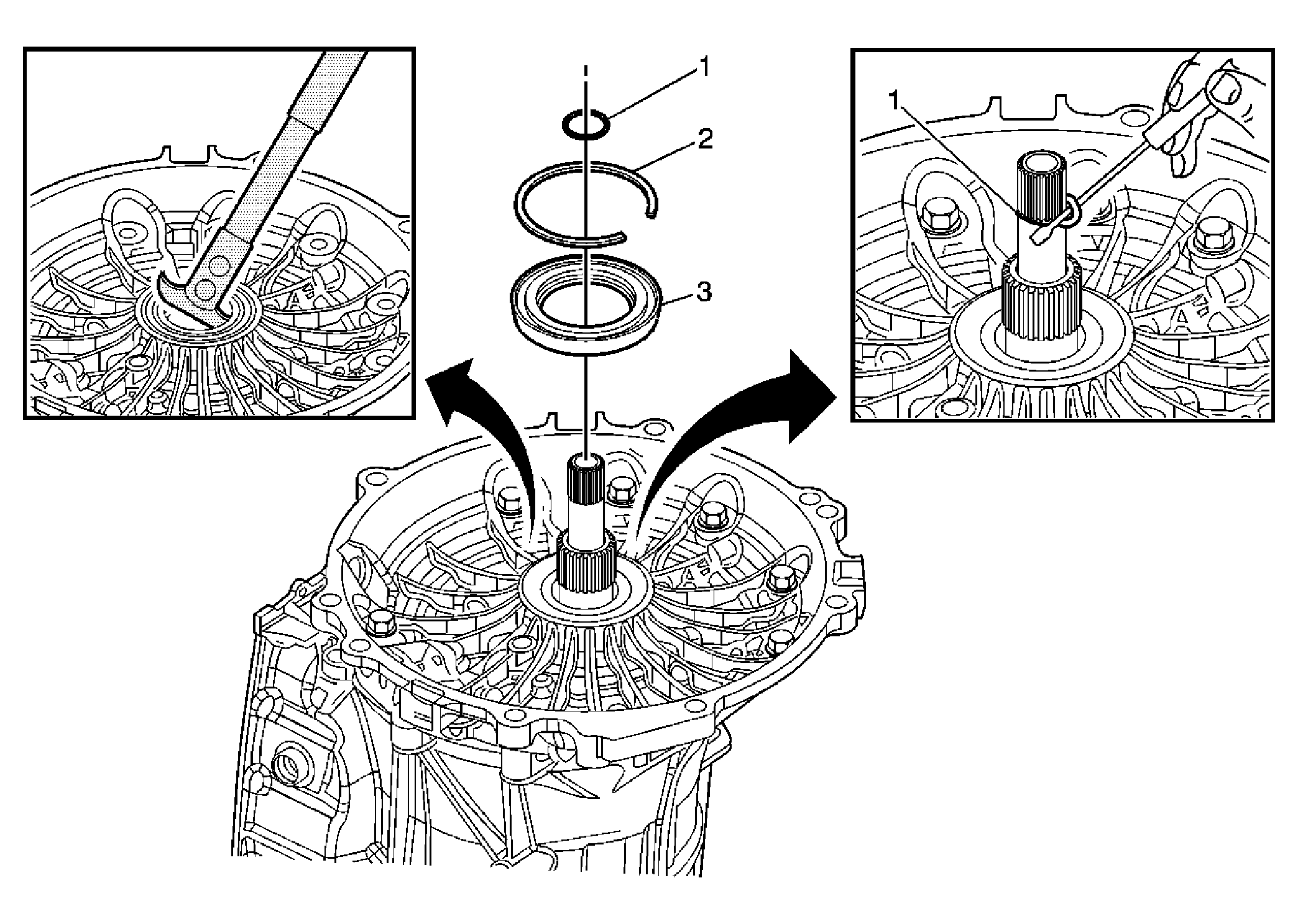

Fig 1: Torque Converter Fluid Seal

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the transmission. Refer to Transmission Replacement . Remove the torque converter. Refer to Torque Converter Replacement .
1	NEW Turbine Shaft (O-Ring) Seal Tip: Use a small screw driver to remove the seal.
2	Torque Converter Fluid Seal Retaining Ring
3	Torque Converter Fluid Seal Assembly Tip: Use the J 45000 to remove the seal.
