Manual Shift Shaft and Seal Replacement

WARNING: This page is about a different variant/trim than selected.

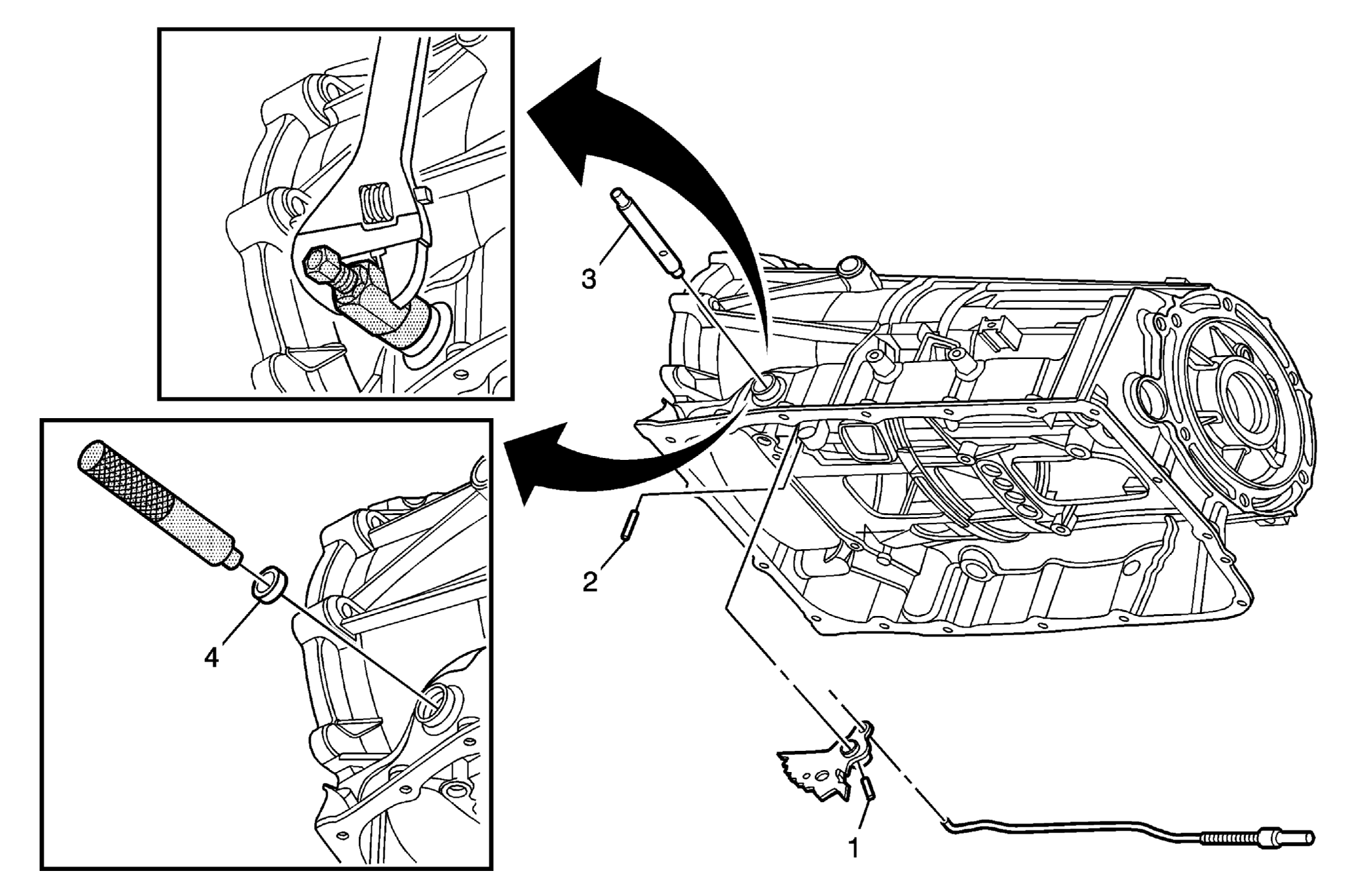

Fig 1: Manual Shift Shaft and Seal Replacement

GM1657044

Courtesy of GENERAL MOTORS CORP.

Manual Shift Shaft and Seal Replacement

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the transmission fluid pan. Refer to Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement . Remove the manual shaft detent assembly roller. Refer to Control Valve Lower Body and Upper Body Replacement .
1	Manual Shaft Detent Lever Hub Pin Procedure: Discard the pin. Replace with a NEW pin. Tip: "Walk" the pin out using side cutters.
2	Manual Shift Shaft Pin Procedure: Discard the pin. Replace with NEW pin. Tip: "Walk" the pin out using side cutters.
3	Manual Shift Shaft
4	Manual Shift Shaft Seal Procedure The manual shaft must be removed to replace the manual shaft seal. Use the J 45201 to remove the seal from the transmission case. See Special Tools . Use the J 43909 to install the seal into the transmission case.
