Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Supercharger Bypass Regulator Solenoid Valve
    GM1614014Courtesy of GENERAL MOTORS CORP.
  1. Remove the engine sight shield. Refer to Intake Manifold Sight Shield Replacement .
  2. Disconnect the electrical connector (3) from the supercharger bypass regulator solenoid valve (2).
  3. Disconnect the vacuum line fittings (4, 5) from the supercharger bypass regulator solenoid valve.
  4. Remove the supercharger bypass regulator solenoid valve from the bracket.
  5. Remove the bolt (1) and bracket if necessary.

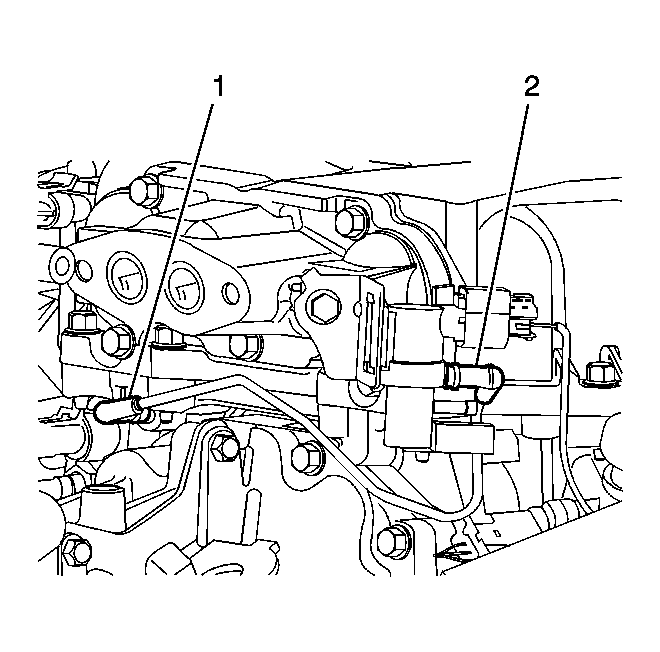

    6. Fig 2: Vacuum Supply Line And Fittings
    GM1614017Courtesy of GENERAL MOTORS CORP.
  6. Inspect the bypass regulator solenoid valve vacuum supply line and fittings (1, 2). Replace the vacuum line if necessary.

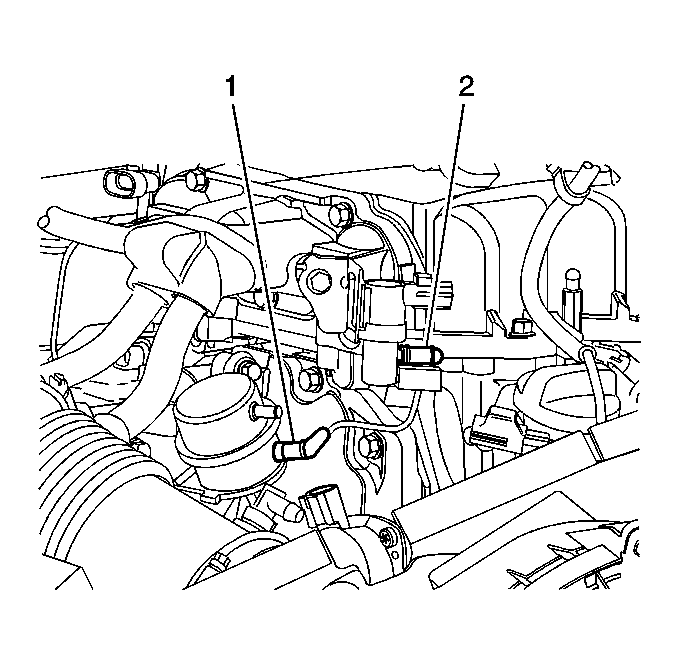

    7. Fig 3: Vacuum Supply Line And Fittings
    GM1614019Courtesy of GENERAL MOTORS CORP.
  7. Inspect the bypass regulator solenoid valve to bypass valve actuator vacuum line and fittings (1, 2). Replace the vacuum line if necessary.
