Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the intake manifold sight shield. Refer to Intake Manifold Sight Shield Replacement .

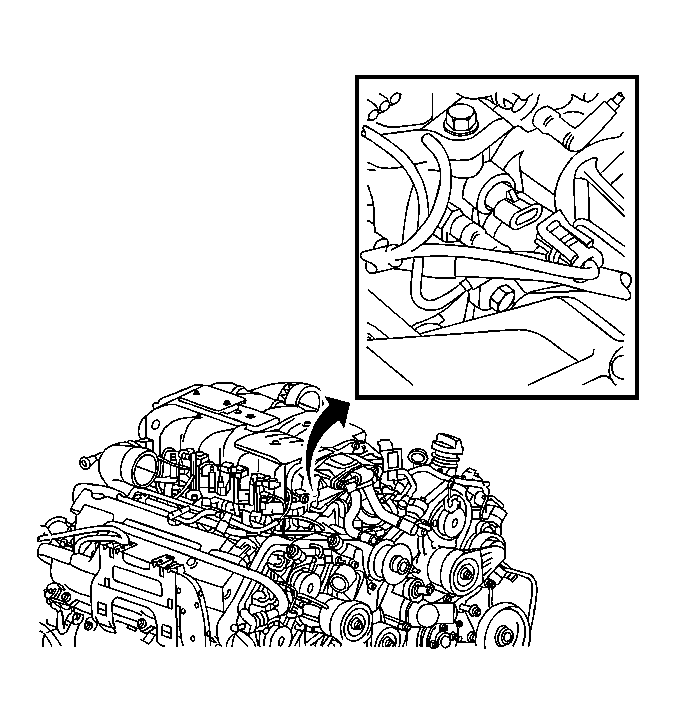

    2. Fig 1: Intake Air Temperature (IAT) Sensor Connector
    GM1645247Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the intake air temperature (IAT) sensor 2 electrical connector.

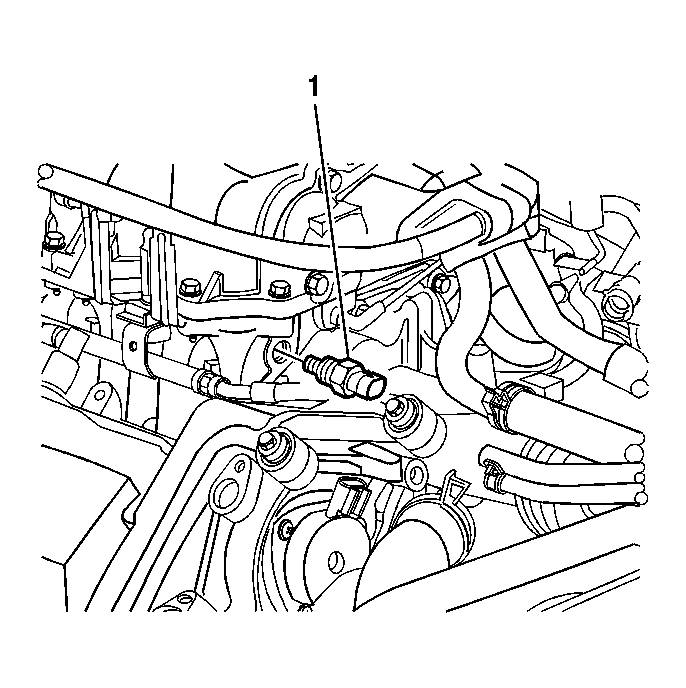

    3. Fig 2: Intake Air Temperature (IAT) Sensor
    GM1613989Courtesy of GENERAL MOTORS CORP.
  3. Remove the IAT sensor 2 (1).
