Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Camshaft Sprockets & Related Components
    GM1276768Courtesy of GENERAL MOTORS CORP.
  1. Remove the left intake camshaft actuator (6). Refer to Camshaft Position Actuator Replacement - Bank 2 (Left Side) Intake .
  2. Remove the left exhaust camshaft actuator (9). Refer to Camshaft Position Actuator Replacement - Bank 2 (Left Side) Exhaust .
    3. Fig 2: View Of Left Intake Camshaft
    GM928420Courtesy of GENERAL MOTORS CORP.
  3. Remove the left intake camshaft. Refer to Intake Camshaft Removal - Left Side .

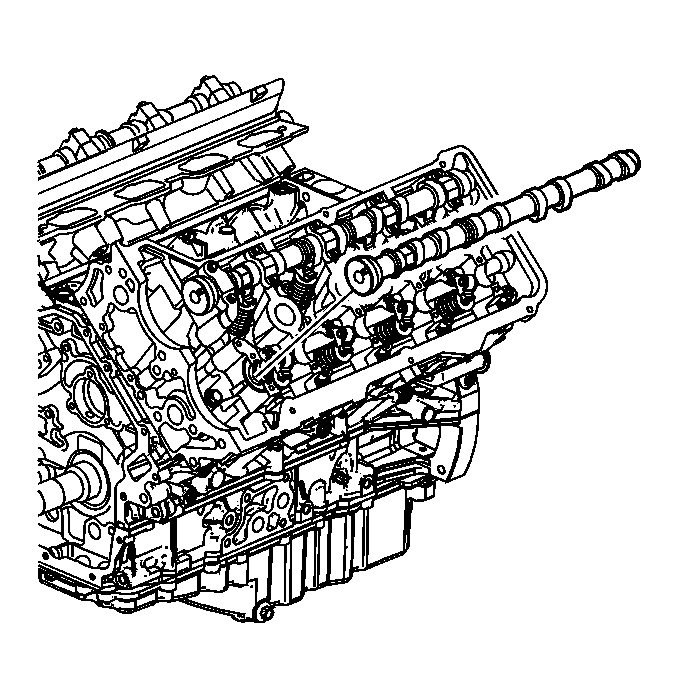

    4. Fig 3: View Of Left Exhaust Camshaft
    GM928409Courtesy of GENERAL MOTORS CORP.
  4. Remove the left exhaust camshaft. Refer to Exhaust Camshaft Removal - Left Side .
  5. Clean and inspect the camshafts. Refer to Camshaft Cleaning and Inspection .
