Intake Camshaft Removal - Left Side - Off Vehicle

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Intake Camshaft Bearing Cap Markings
    GM721592Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Bearing caps must remain with their original cylinder head and in their original location. Do not mix bearing caps.
  1. Observe the markings on the bearing caps. Each bearing cap is marked in order to identify its location. The markings have the following meanings:
    • The arrow points toward the front of the engine.
    • The "I" indicates the intake camshaft.
    • The number indicates the journal position from the front of the engine.

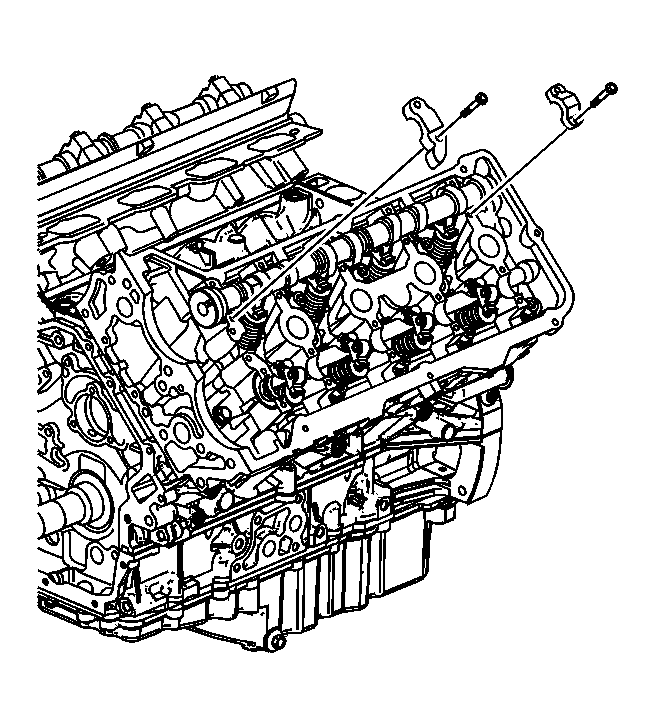

    2. Fig 2: View Of Left Intake Camshaft Bearing Caps
    GM928413Courtesy of GENERAL MOTORS CORP.
  2. Remove the left intake camshaft bearing cap bolts.
  3. Remove the left intake camshaft bearing caps. Store the bearing caps in a clean shop towel.

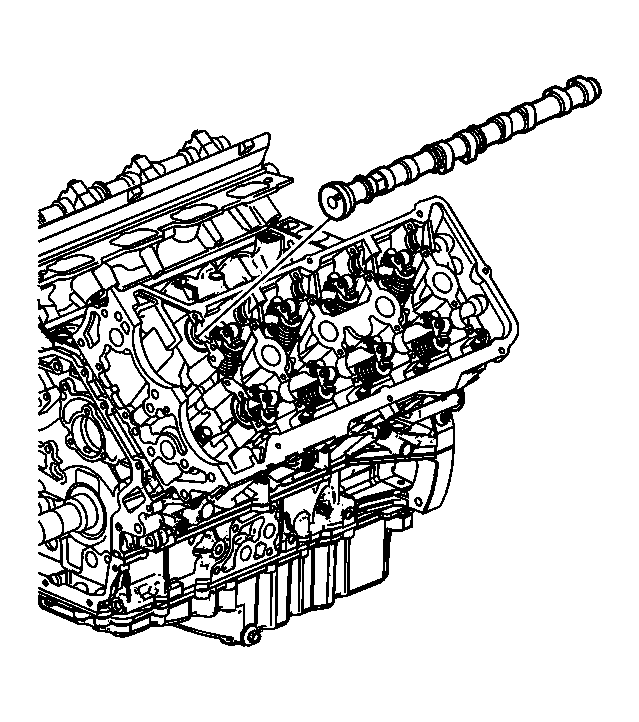

    4. Fig 3: View Of Left Intake Camshaft
    GM928420Courtesy of GENERAL MOTORS CORP.
  4. Remove the left intake camshaft. Place the camshaft in a secure location.
  5. Cover the camshaft with an oil soaked towel in order to prevent corrosion.
