Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine sight shield. Refer to Intake Manifold Sight Shield Replacement .
  2. Remove the front and rear sections of the supercharger inlet duct assembly. Refer to Supercharger Inlet Duct Assembly Replacement .
  3. Remove the supercharger assembly. Refer to Supercharger Replacement .
  4. Remove the water outlet housing. Refer to Water Outlet Housing Replacement (LC3) .
  5. Remove the supercharger drive belt tensioner. Refer to Drive Belt Tensioner Replacement - Supercharger .

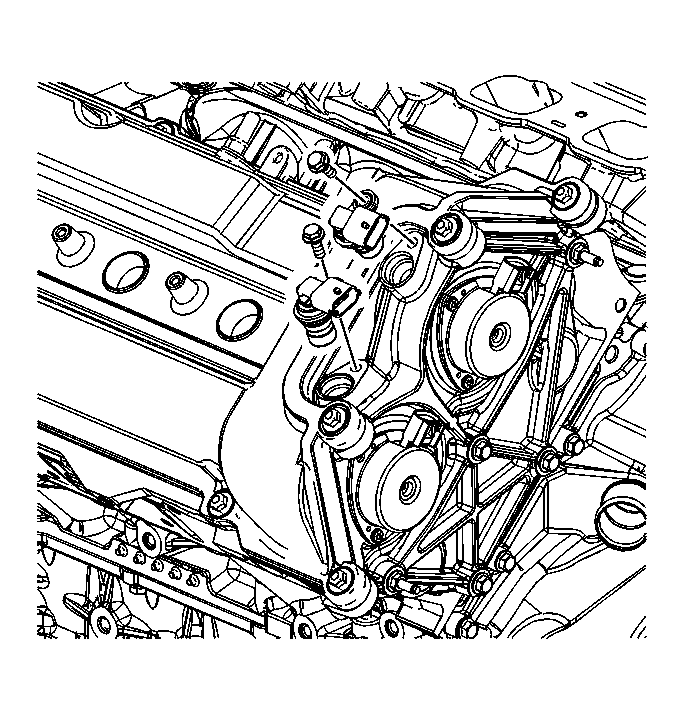

    6. Fig 1: View Of Right Intake Camshaft Sensor & Right Exhaust Camshaft Sensor
    GM928266Courtesy of GENERAL MOTORS CORP.
  6. Remove the right exhaust camshaft sensor. Refer to Camshaft Position Sensor Replacement - Bank 1 (Right Side) Exhaust .
  7. Remove the right intake camshaft sensor. Refer to Camshaft Position Sensor Replacement - Bank 1 (Right Side) Intake .
  8. Remove the right camshaft cover. Refer to Camshaft Cover Replacement - Right Side .
  9. Remove the cam sensor harness from the retainers.
    10. Fig 2: View Of Right Intake Camshaft Position Actuator Solenoid
    GM1276389Courtesy of GENERAL MOTORS CORP.
  10. Remove the right intake camshaft position actuator solenoid bolts.
  11. Remove the right intake camshaft position actuator solenoid.
  12. Remove the right intake camshaft position actuator solenoid alignment plug and discard.
    13. Fig 3: View Of Right Exhaust Camshaft Position Actuator Solenoid
    GM1276390Courtesy of GENERAL MOTORS CORP.
  13. Remove the right exhaust camshaft position actuator solenoid bolts.
  14. Remove the right exhaust camshaft position actuator solenoid.
  15. Remove the right exhaust camshaft position actuator solenoid alignment plug and discard.

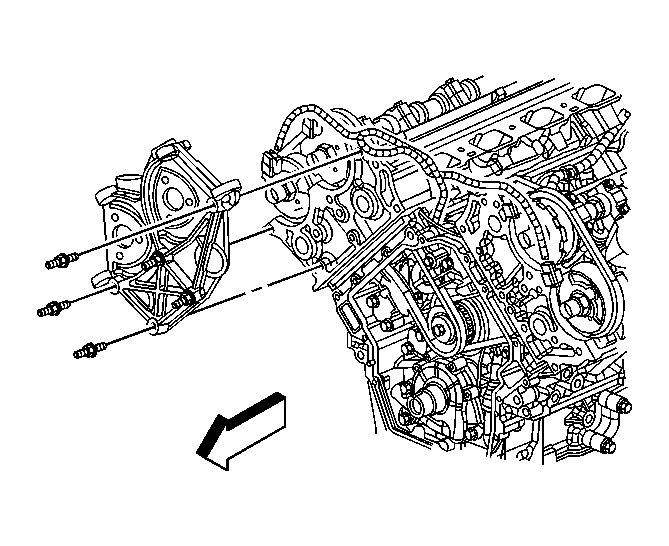

    16. Fig 4: View Of Right Camshaft Position Actuator Housing
    GM1276305Courtesy of GENERAL MOTORS CORP.
  16. Remove the right camshaft position actuator housing bolts.
  17. Remove the right camshaft position actuator housing.
