Belt Idler Pulley Replacement

WARNING: This page is about a different variant/trim than selected.

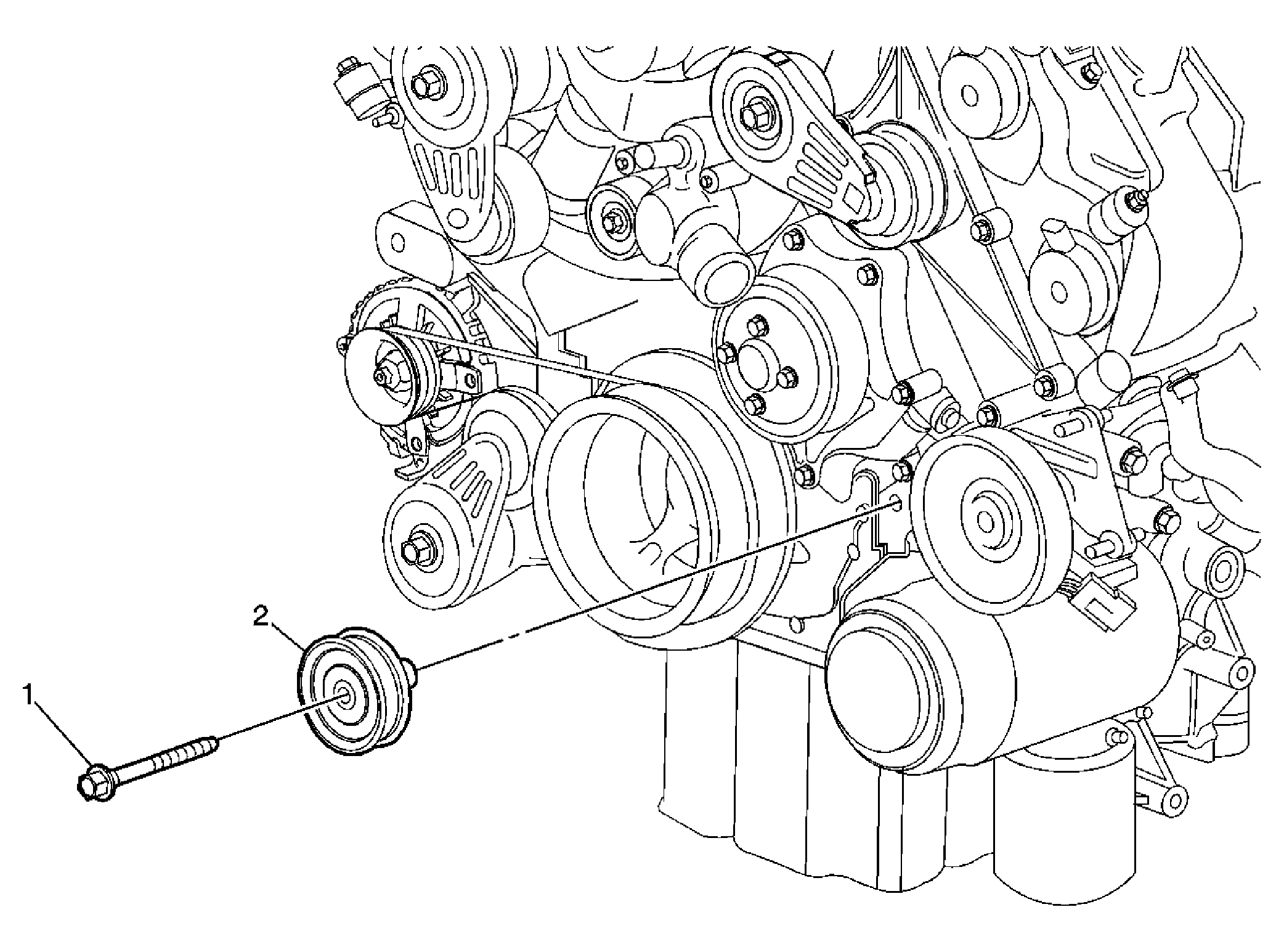

Fig 1: Belt Idler Pulley

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedures: Remove the air conditioning, power steering, and water pump drive belt. Refer to Water Pump and Air Conditioning Compressor and Power Steering Pump Belt Replacement .
1	Drive Belt Idler Pulley Bolt Tighten: 50 N.m (37 lb ft)
2	Drive Belt Idler Pulley Assembly Tip: Rotate the tensioner in a clockwise direction during belt removal and installation. Remove and install the idler pulley and bolt as an assembly.
