Instrument Cluster Replacement (Left Hand Drive)
WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

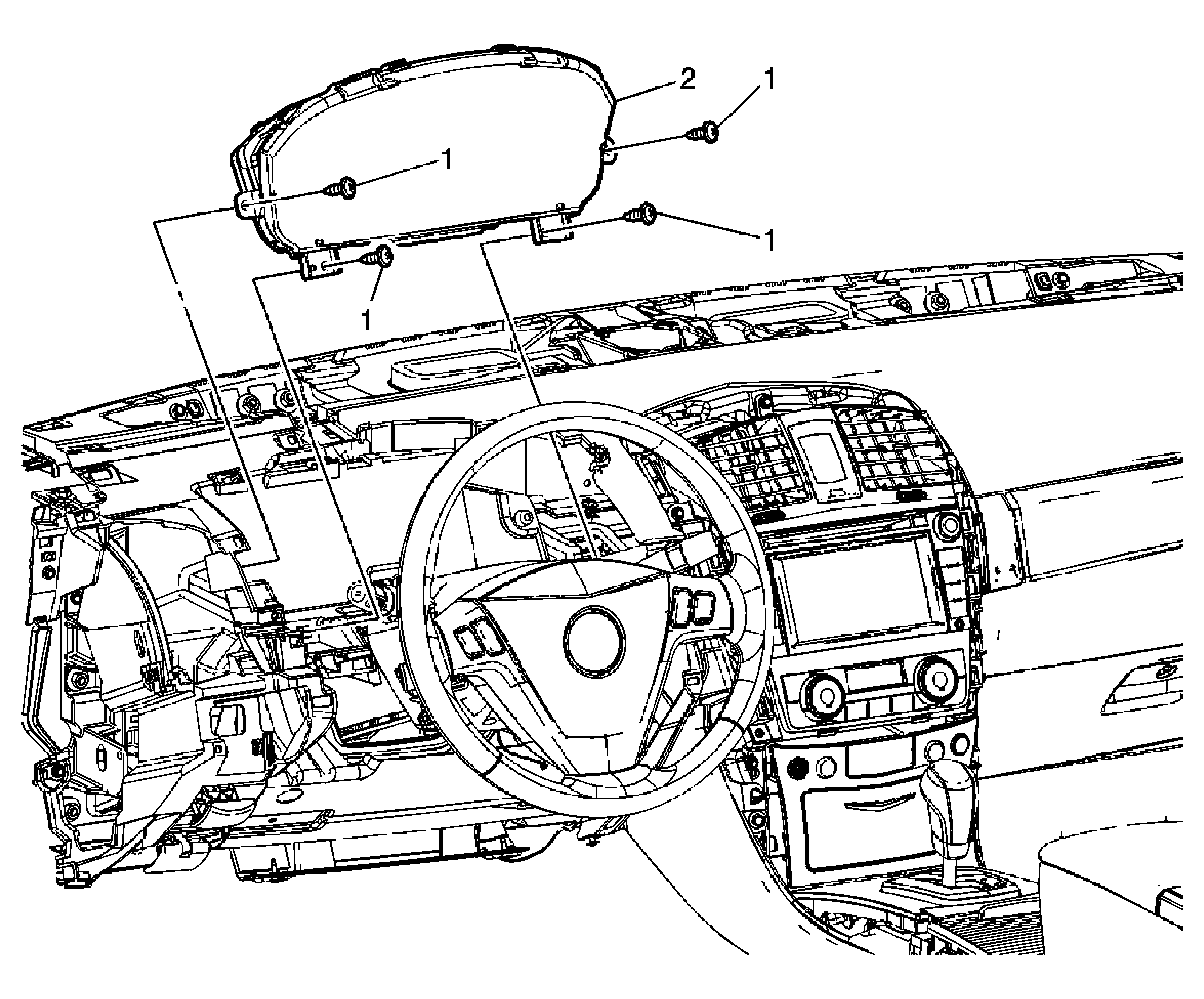

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel cluster trim plate. Refer to Instrument Cluster Trim Panel Replacement (Left Hand Drive) or Instrument Cluster Trim Panel Replacement (Right Hand Drive) . |
|
| 1 | Instrument Panel Cluster Assembly Screw (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Instrument Panel Cluster Assembly Procedure: Disconnect the electrical connections. |
