Knee Bolster Replacement (Left Hand Drive)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

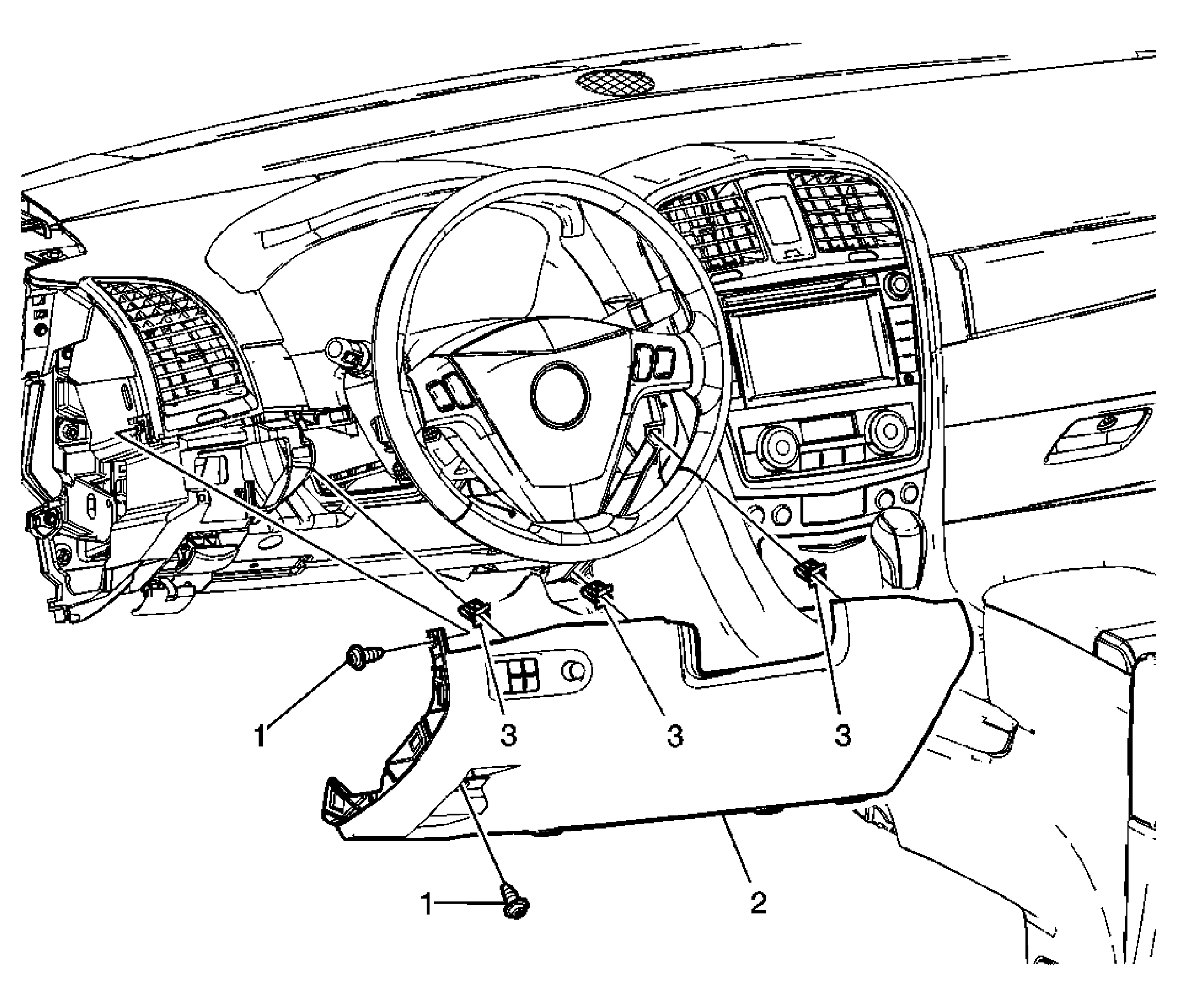

Fig 1: Knee Bolster (Left Hand Drive) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the left instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement - Left Side (Left Hand Drive) or Instrument Panel Outer Trim Cover Replacement - Left Side (Right Hand Drive) . Remove the left instrument panel closeout/insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Left Hand Drive) or Instrument Panel Insulator Panel Replacement - Left Side (Right Hand Drive) .
1	Instrument Panel Knee Bolster Trim Panel Assembly Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Instrument Panel Knee Bolster Trim Panel Assembly Procedure Disconnect the electrical connections. When replacing the instrument panel knee bolster trim panel, transfer all necessary components.
3	Retainer Clip (Qty: 3)
