Instrument Panel Insulator Panel Replacement - Left Side (Right Hand Drive)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

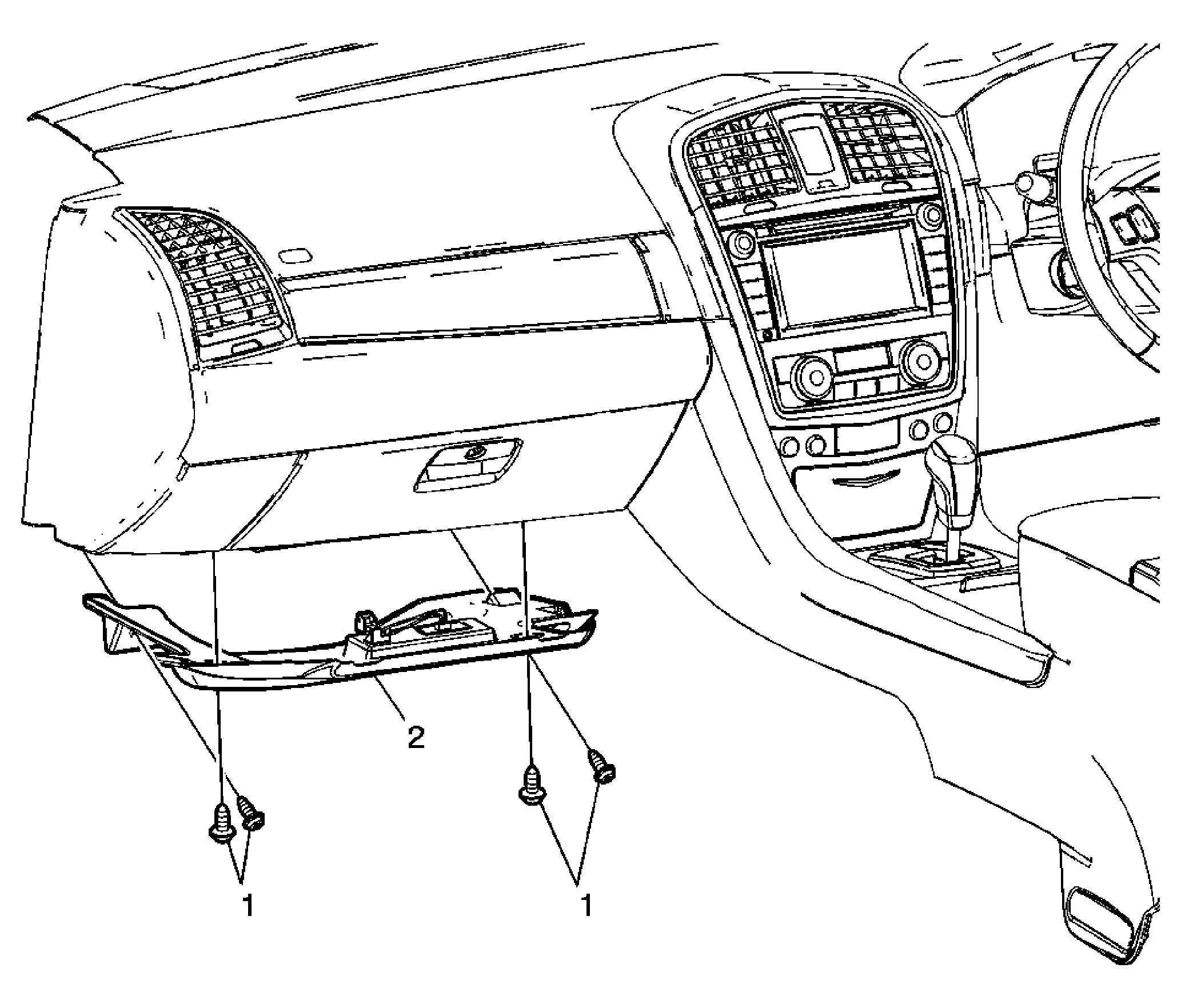

Fig 1: Instrument Panel Insulator Panel - Left Side (Right Hand Drive) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Closeout/Insulator Assembly Screw (Qty: 6) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Instrument Panel Closeout/Insulator Assembly - Left Procedure Disconnect the electrical connections. When replacing the instrument panel closeout/insulator assembly, transfer all necessary components.

Callout

Component Name

Instrument Panel Closeout/Insulator Assembly Screw (Qty: 6)

NOTE: Refer to Fastener Notice .

Tighten: 2 N.m (18 lb in)

Instrument Panel Closeout/Insulator Assembly - Left

Procedure

Disconnect the electrical connections.
When replacing the instrument panel closeout/insulator assembly, transfer all necessary components.
