Ignition Module Installation - Right

WARNING: This page is about a different variant/trim than selected.

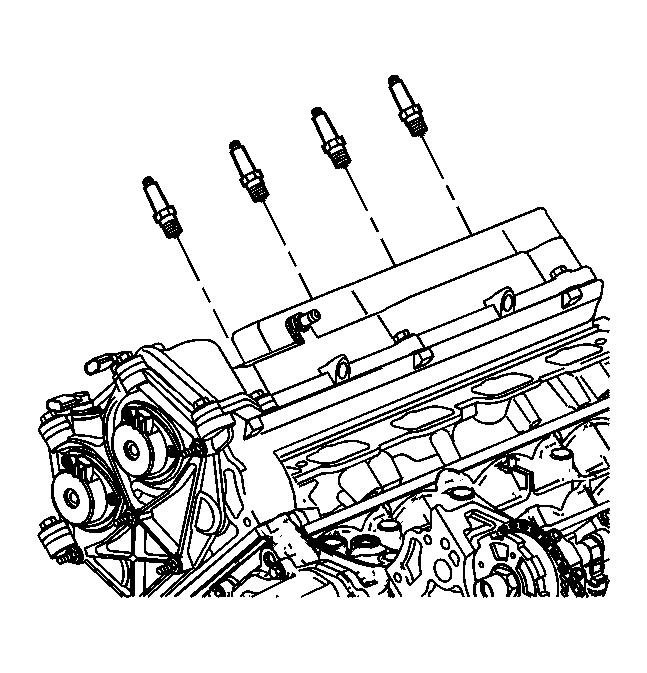

    Fig 1: View Of Right Spark Plugs
    GM928261Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the right spark plugs.

    Tighten:  Tighten the spark plugs to 15 N.m (11 lb ft).

    2. Fig 2: View Of Ignition Coils
    GM928257Courtesy of GENERAL MOTORS CORP.
  2. Carefully, install the right ignition coil assembly.
    3. Fig 3: Locating Ignition Coil Assembly Bolts & Ball Studs
    GM1254566Courtesy of GENERAL MOTORS CORP.
  3. Install the ignition coil assembly bolts (708) and ball studs (709).

    Tighten:  Tighten the right ignition cassette bolts and ball studs to 10 N.m (89 lb in).

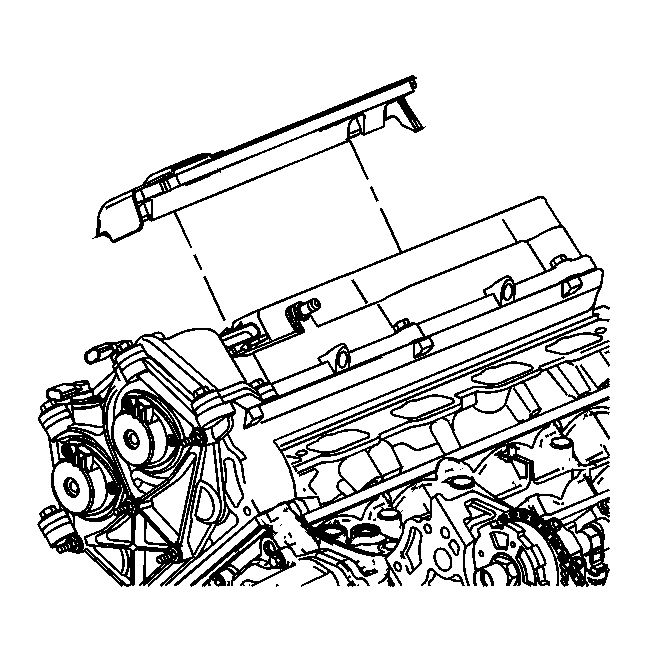

    4. Fig 4: View Of Ignition Coil Assembly Cover
    GM948146Courtesy of GENERAL MOTORS CORP.
  4. Install the right ignition coil assembly cover.
