Installation Procedure

WARNING: This page is about a different variant/trim than selected.

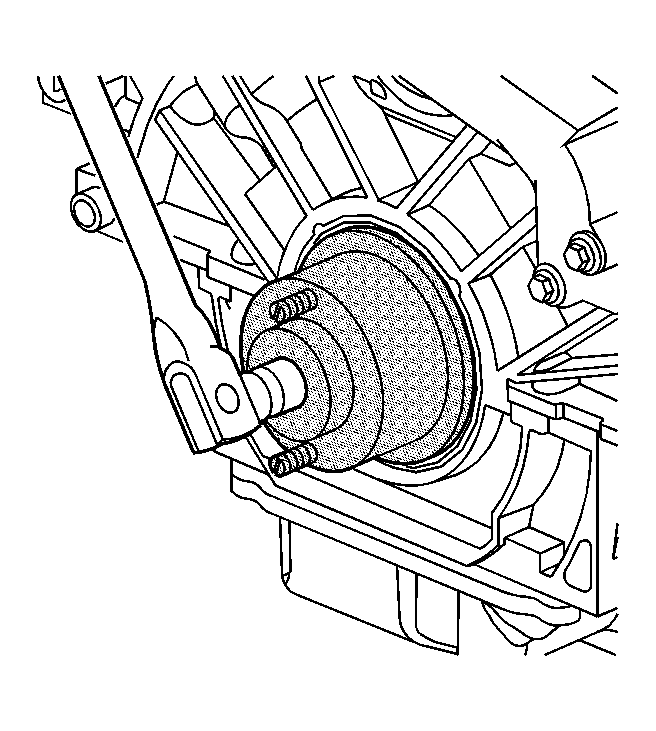

    Fig 1: Installing Rear Crankshaft Oil Seal Using The J 45930
    GM871813Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Make sure the drain is clear before installing the new crankshaft rear oil seal. Failure to clear the drain could cause the crankshaft rear oil seal to leak.
  1. Using theJ 45930  install the rear crankshaft oil seal. See Special Tools . Refer to Crankshaft Rear Oil Seal Installation .
  2. Install the flywheel. Refer to Engine Flywheel Replacement .
