Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the upper intake manifold with the lower intake manifold. Refer to Intake Manifold Replacement - Lower .
  2. Remove the left bank camshaft cover. Refer to Camshaft Cover Replacement - Left .
  3. Remove the camshaft sensors. Refer to Camshaft Position (CMP) Sensor Replacement - Bank 2 (Left) Exhaust and Camshaft Position (CMP) Sensor Replacement - Bank 2 (Left) Intake in Engine Controls - 3.6L (LY7).
  4. Remove the camshaft position actuator solenoid. Refer to Camshaft Position (CMP) Actuator Solenoid Replacement - Bank 2 (Left) Intake in Engine Controls - 3.6L (LY7).
  5. Remove the crankshaft balancer. Refer to Crankshaft Balancer Removal .

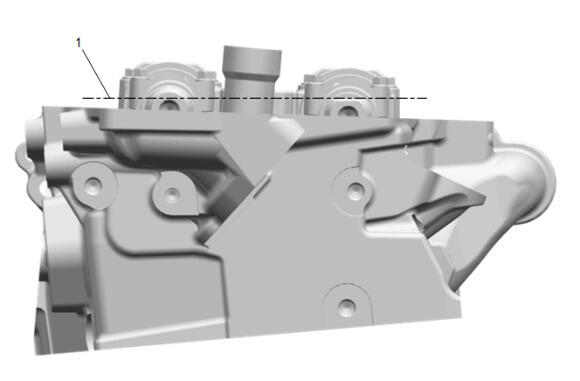

    6. Fig 1: Positioning Camshaft Flats Parallel With Camshaft Cover Rail
    GM1306293Courtesy of GENERAL MOTORS CORP.
  6. Rotate the crankshaft with the EN 46111  until the camshafts are in a neutral (low tension) position. The camshaft flats will be parallel with the camshaft cover rail (1).
    7. Fig 2: Preventing Camshaft/Engine Rotation Using Open-End Wrench
    GM1340931Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Torque Reaction Against Timing Drive Chain Notice in Cautions and Notices.
    IMPORTANT:
    • Use an open-end wrench at the camshaft hex to prevent camshaft/engine rotation.
    • DO NOT remove the camshaft position actuator bolt at this time.
  7. Loosen the camshaft position actuator bolt.
    8. IMPORTANT: Ensure that the tips of the EN 46108  are fully engaged into the timing chain (3 and 4).

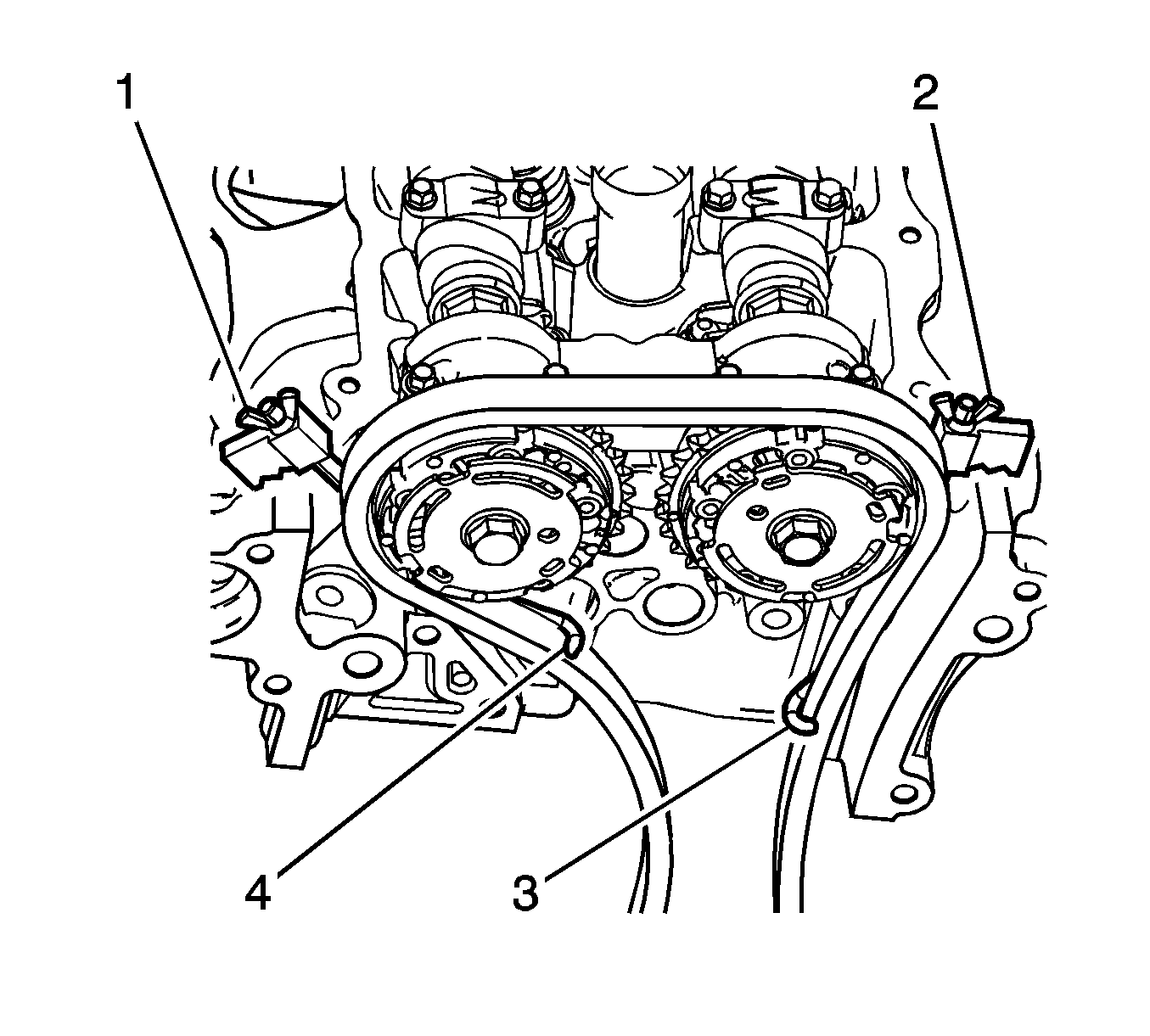

    Fig 3: Installing EN 46108 In Order To Retain Timing Chain
    GM1341287Courtesy of GENERAL MOTORS CORP.
  8. Install the EN 46108  (1 and 2) in order to retain the timing chain.

    Firmly tighten the EN 46108  nuts.

    9. Fig 4: Locating Left Secondary Camshaft Drive Chain Timing Marks
    GM1306391Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the camshaft timing chain and the camshaft position actuators are marked for proper assembly.
  9. Mark the timing chain and the respective locations on the camshaft position actuators (1-4).
  10. Remove the camshaft position actuator bolt.
  11. Remove the camshafts. Refer to Camshaft Removal - Left .
