Crankshaft Balancer Removal

Tools Required

• EN 46106  Flywheel Holding Tool
• J 24420-C  Harmonic Balancer Puller
• J 38416-2  Crankshaft Button

Fig 1: View Of Tool EN 46106
Courtesy of GENERAL MOTORS CORP.
1. Install the EN 46106  through the starter mounting hole.

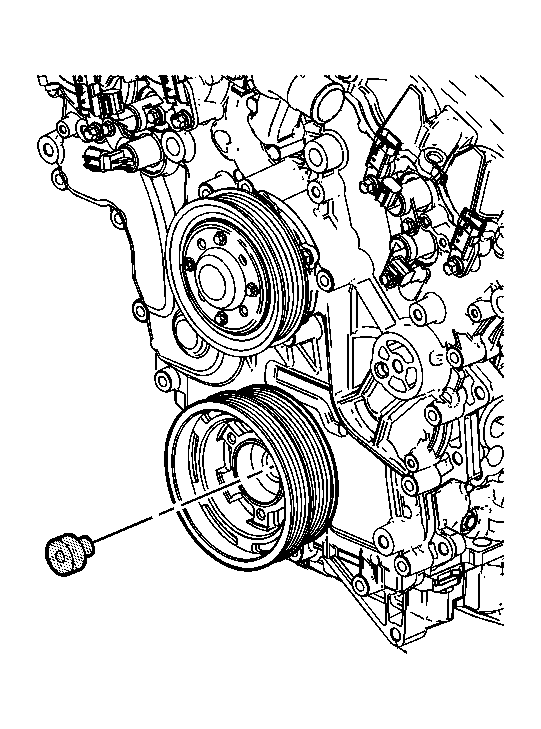

Fig 2: View Of Crankshaft Balancer & Bolt
Courtesy of GENERAL MOTORS CORP.
2. Remove the crankshaft balancer bolt.
Fig 3: Installing J 38416-2 To Nose Of Crankshaft
Courtesy of GENERAL MOTORS CORP.
3. Install the J 38416-2  in the nose of the crankshaft.

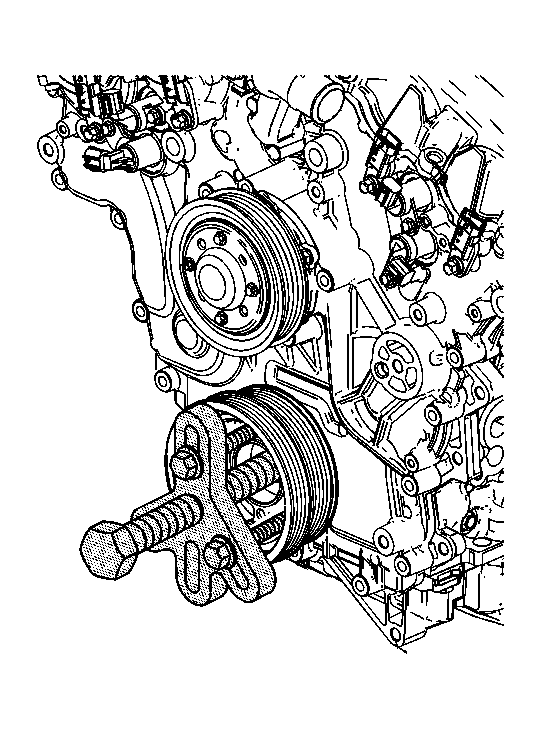

Fig 4: Using J 24420-V To Remove The Crankshaft Balancer
Courtesy of GENERAL MOTORS CORP.
4. Install the J 24420-C  in order to remove the crankshaft balancer.
Fig 5: Removing & Installing Crankshaft Balancer
Courtesy of GENERAL MOTORS CORP.
5. Pull the crankshaft balancer off by tightening the center bolt on the J 24420-C  until the crankshaft balancer pulls off of the crankshaft end.
6. Remove the J 24420-C  from the crankshaft balancer.
