Installation Procedure

Position the console assembly on the floor in the vehicle.
Connect the console electrical connectors.
Lift up on the rear of the center console and slide the center console (1) forward in order to align the front edges of the center console with the lower I/P.
Place the rear of the center console (1) onto the rear studs.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the 2 fasteners (2) from the center console (1) to lower I/P.
Tighten

Tighten the fasteners (2) to 2 N.m (18 lb in).

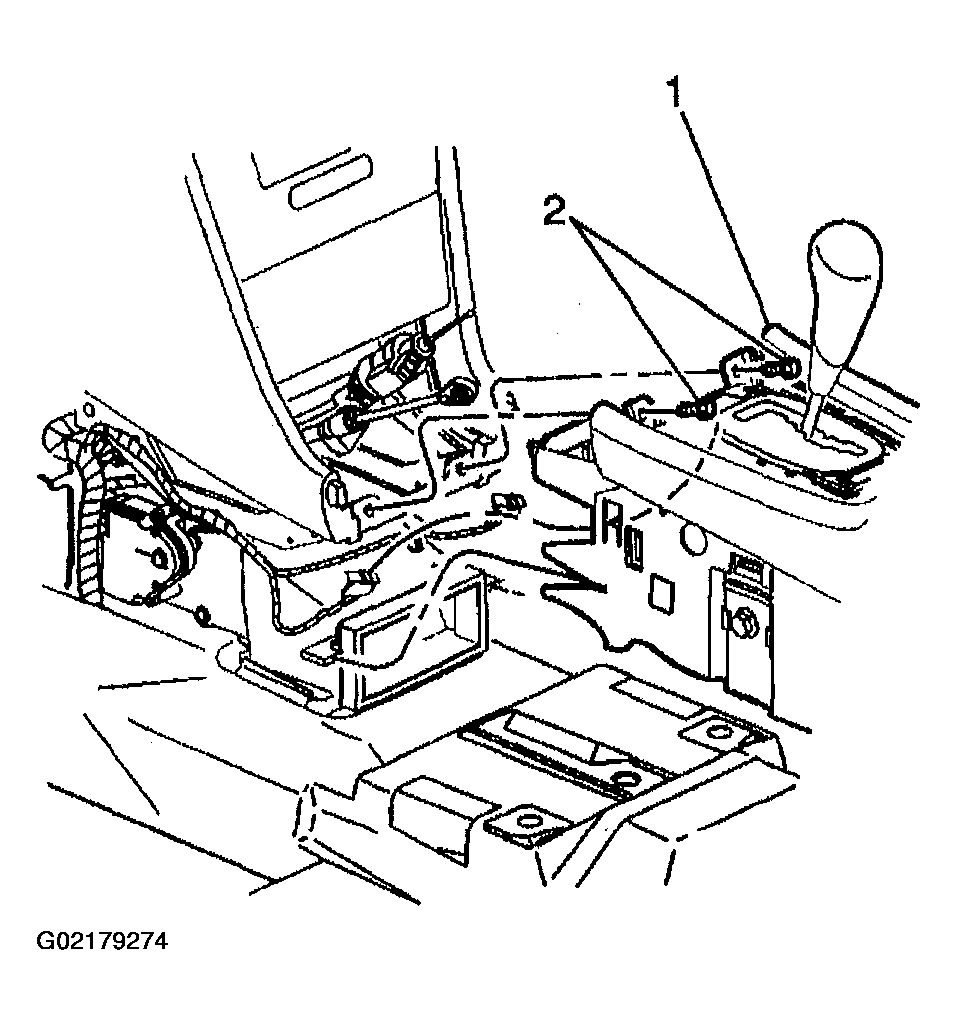

Fig 1: Installing Console To Lower Instrument Panel Fasteners
Courtesy of GENERAL MOTORS CORP.
Install the 2 nuts (2) to the floor studs in the center console compartment.
Tighten

Tighten the fasteners (2) to 10 N.m (89 lb in).
Install the fasteners (1) to the metal bracket arms on the console.
Tighten

Tighten the fasteners (1) to 10 N.m (89 lb in).

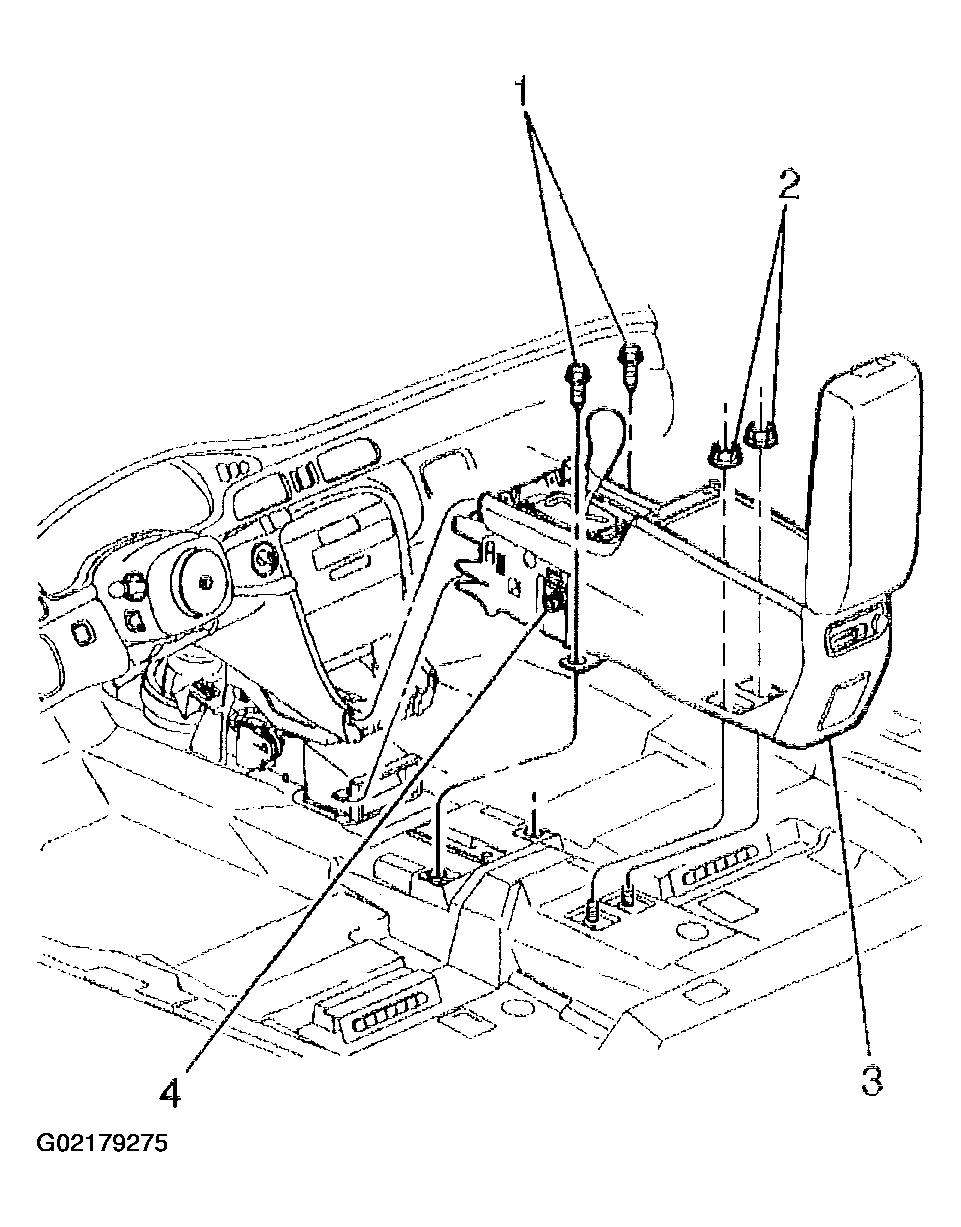

Fig 2: Installing Metal Bracket Arms Fasteners
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connectors (1, 2, 3) on both sides of the console.

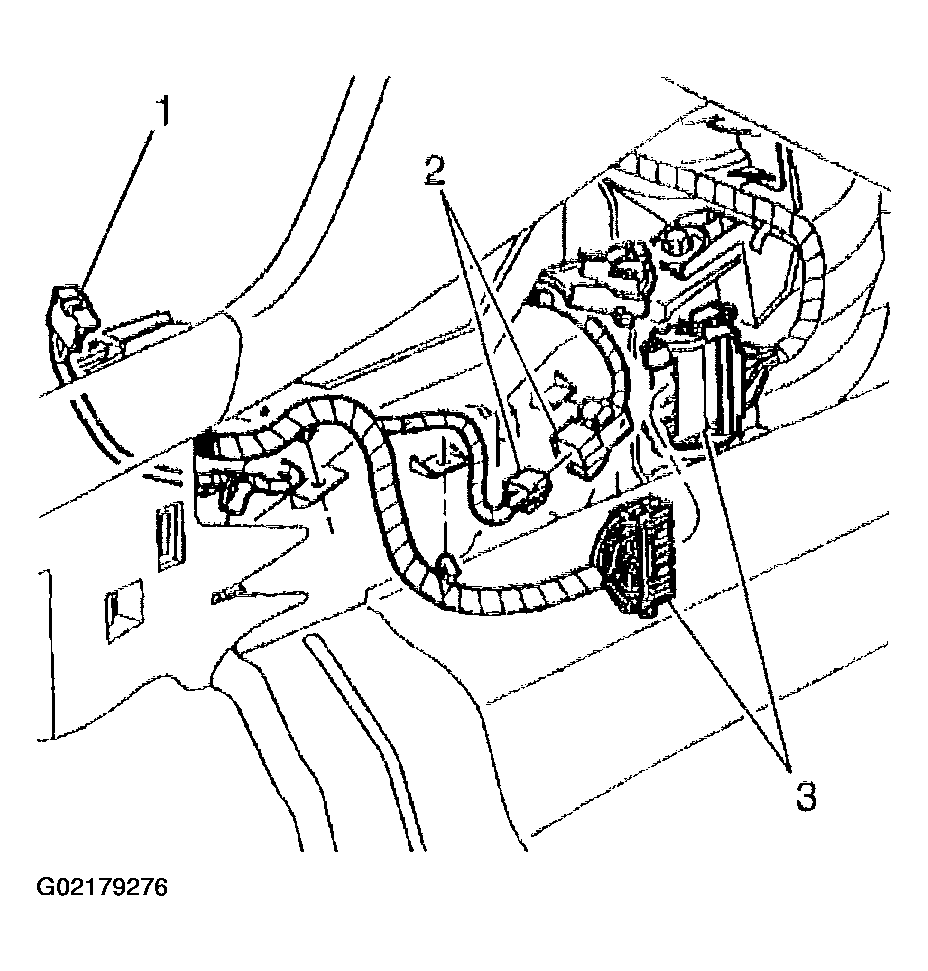

Fig 3: Connecting Console Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Install the cover (1) to the floor of the storage bin.
Install the park lock cable to the shifter. Refer to PARK LOCK CABLE REPLACEMENT (LHD) or PARK LOCK CABLE REPLACEMENT (RHD) in Automatic Transmission-4T80-E.
Connect the shift cable to the shifter. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE REPLACEMENT in Automatic Transmission-4T80-E.
Install the left console panel. Refer to CONSOLE TRIM PANEL REPLACEMENT - LEFT .
Install the right console panel. Refer to CONSOLE TRIM PANEL REPLACEMENT - RIGHT .
Install the console trim plate. Refer to TRIM PLATE REPLACEMENT - CONSOLE .
Install the storage bins or the CD changer as needed. Refer to CONSOLE STORAGE BIN REPLACEMENT or REMOTE CD CHANGER REPLACEMENT in Entertainment.
Enable the SIR. Refer to ZONE 7 and ZONE 9 in Air Bag Restraint Systems.

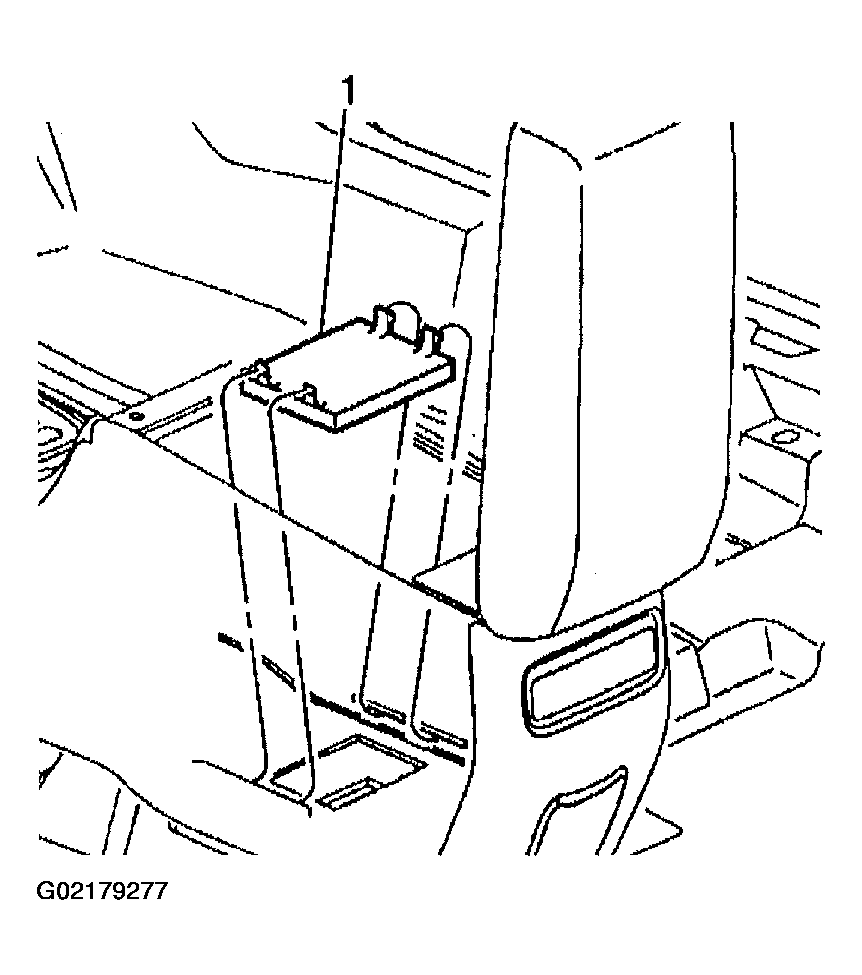

Fig 4: Installing Floor Storage Bin Cover
