Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.

Disable and inflatable restraint steering wheel module. Refer to SIR Disabling and Enabling ZONE 3 in SIR.
Remove the inflatable restraint steering wheel module coil. Refer to SIR COIL ASSEMBLY .
Remove and discard the bearing retainer using J 23653-SIR and J 42137 . See Special Tools and Equipment .

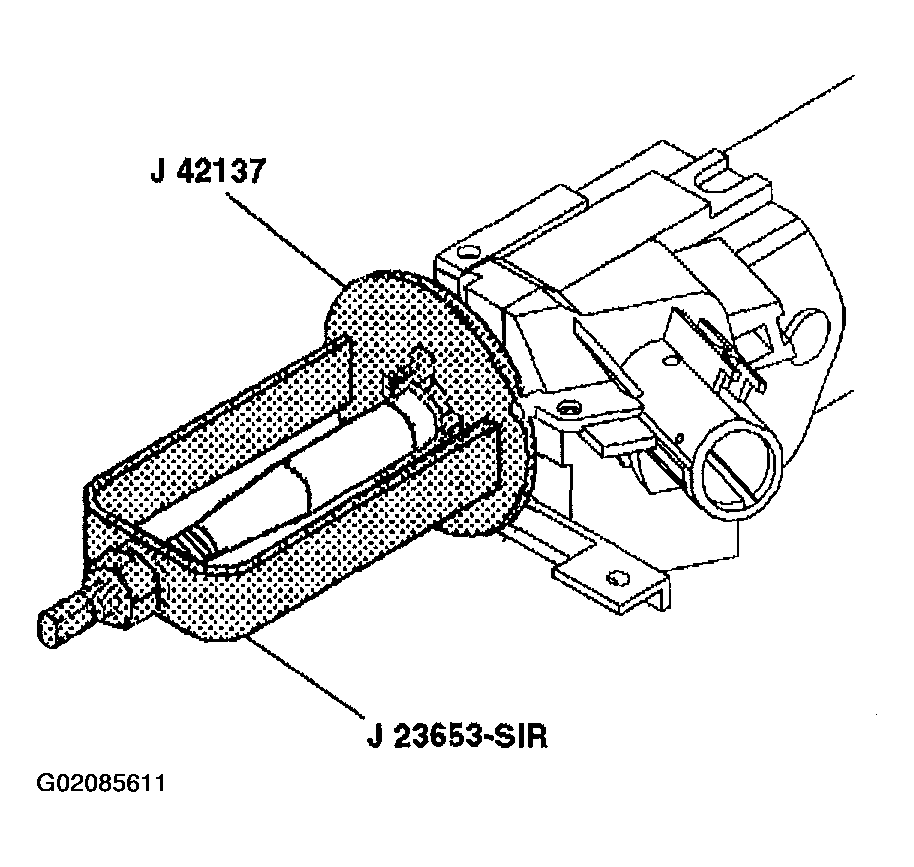

Fig 1: Removing Bearing Retainer
Courtesy of GENERAL MOTORS CORP.
Remove the shaft lock (2) or the cam orientation plate (1).
Important: Do not wipe the lubricant off the turn signal cancel cam assembly.
Remove the turn signal cancel cam assembly (3).
Remove the upper bearing spring (4).
Remove the upper bearing inner race seat (5).
Remove the inner race (6).

Fig 2: Turn Signal Cancel Cam And Upper Bearing Inner Race
Courtesy of GENERAL MOTORS CORP.
