Zone 3

  1. Turn steering wheel to place vehicle wheels in straight-ahead position. Turn ignition off and remove key.

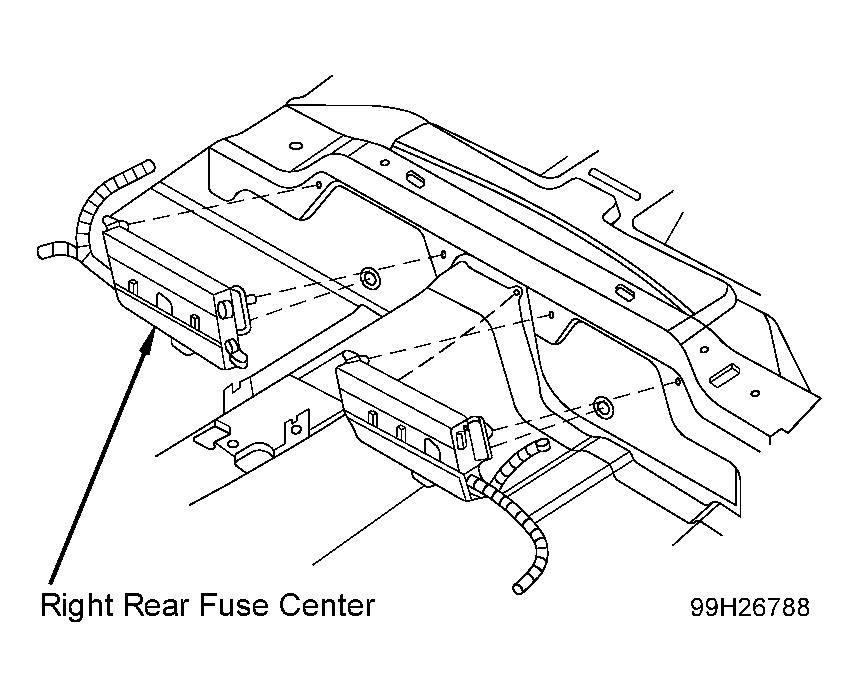

  2. Remove rear seat cushion. See REAR SEAT CUSHION  under REMOVAL & INSTALLATION. Remove SIR fuse (10-amp) from right rear fuse center, located under rear seat cushion. See Figure.
  3. Remove left end of instrument panel. Remove Connector Position Assurance (CPA) clip from driver-side air bag module connector. See Fig 1. Disconnect driver-side air bag module connector from harness connector.

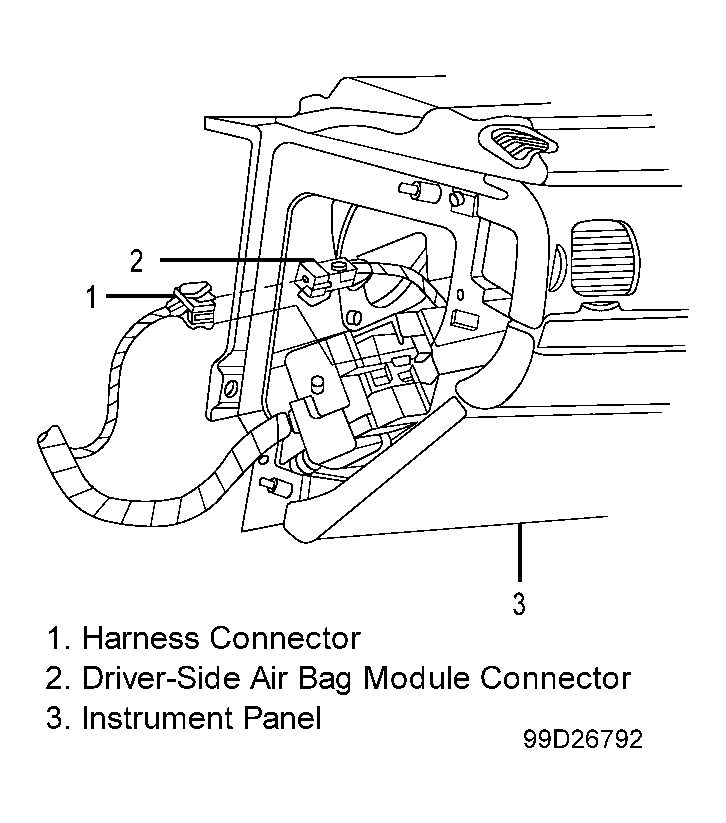

Fig 1: Identifying Driver-side Air Bag Module Connector
G99D26792Courtesy of GENERAL MOTORS CORP.
