Installation Procedure

  1. Install the steering wheel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the steering wheel retaining nut.

    Tighten

    Tighten the nut to 41 N.m (30 lb ft).

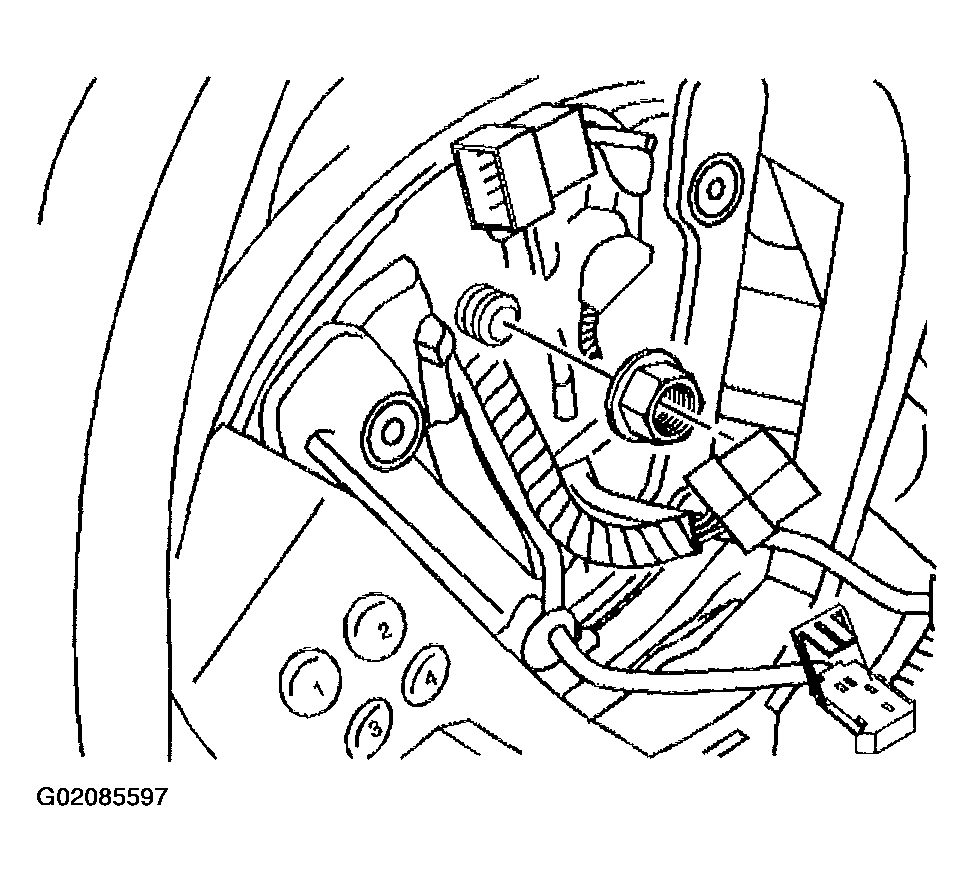

    Fig 1: Steering Wheel Retaining Nut
    G02085597Courtesy of GENERAL MOTORS CORP.
  3. Connect the steering column electrical connector.
  4. Install the inflator module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) in SIR.
  5. Enable the SIR system. Refer to SIR Disabling and Enabling ZONE 3 in SIR.

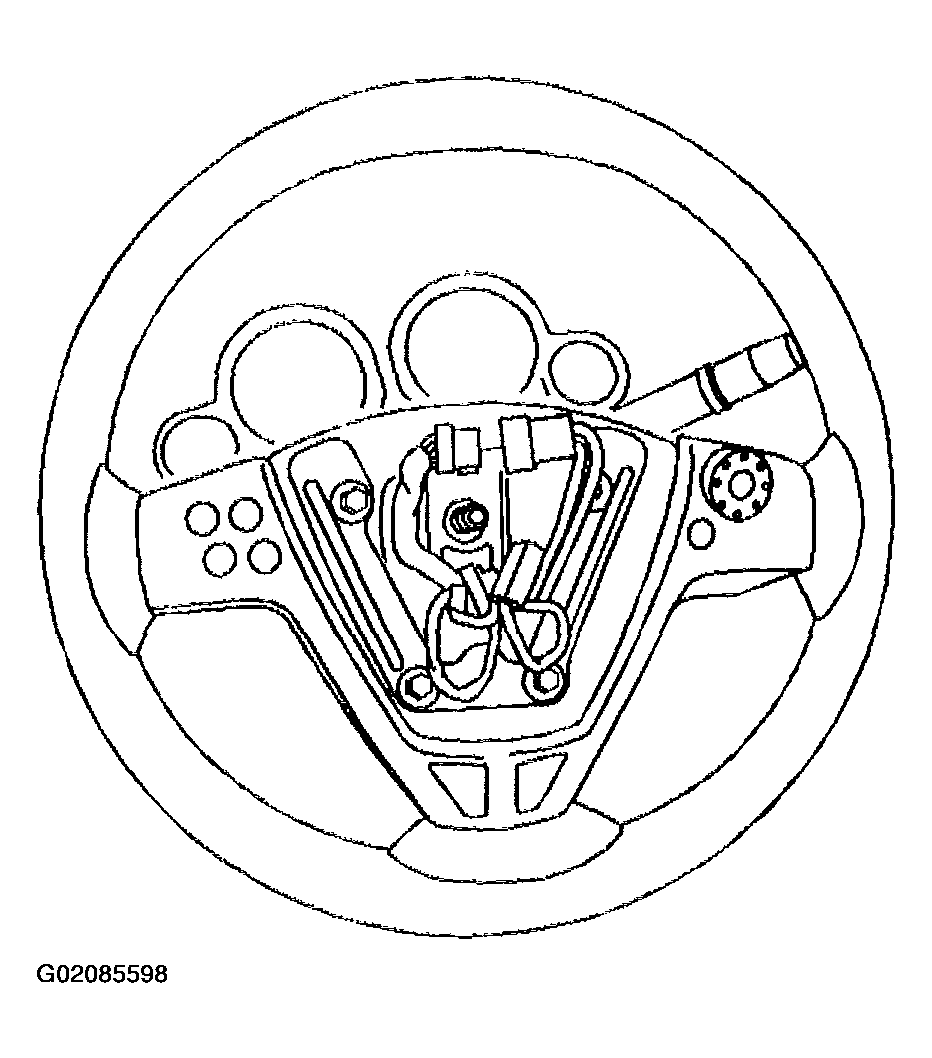

    Fig 2: Steering Column Electrical Connector
    G02085598Courtesy of GENERAL MOTORS CORP.
