Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to SIR Disabling and Enabling ZONE 3 in SIR.
  2. Remove the steering wheel inflatable restraint module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) in SIR.
  3. Disconnect the electrical connectors for the steering wheel control switch.

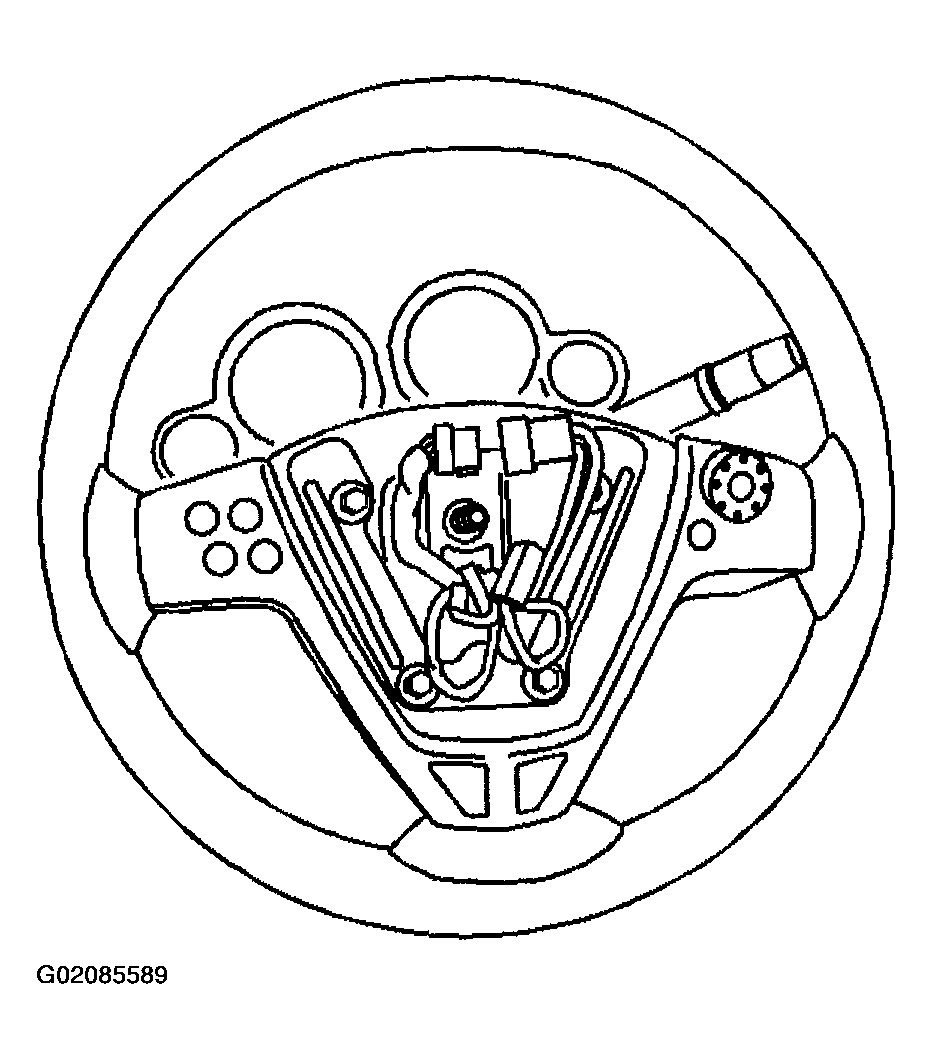

    Fig 1: Electrical Connectors For Steering Wheel Control Switch
    G02085589Courtesy of GENERAL MOTORS CORP.
  4. Remove the steering wheel control switch retaining screws.
  5. Remove the steering wheel control harness retainer and screw.
  6. Carefully pull the steering wheel control switch assembly away from the steering wheel in order to release the steering wheel control switch assembly from the steering wheel.
  7. Remove the steering wheel control switch assembly from the steering wheel.
  8. Remove the wire harness from the steering wheel control switch assembly.

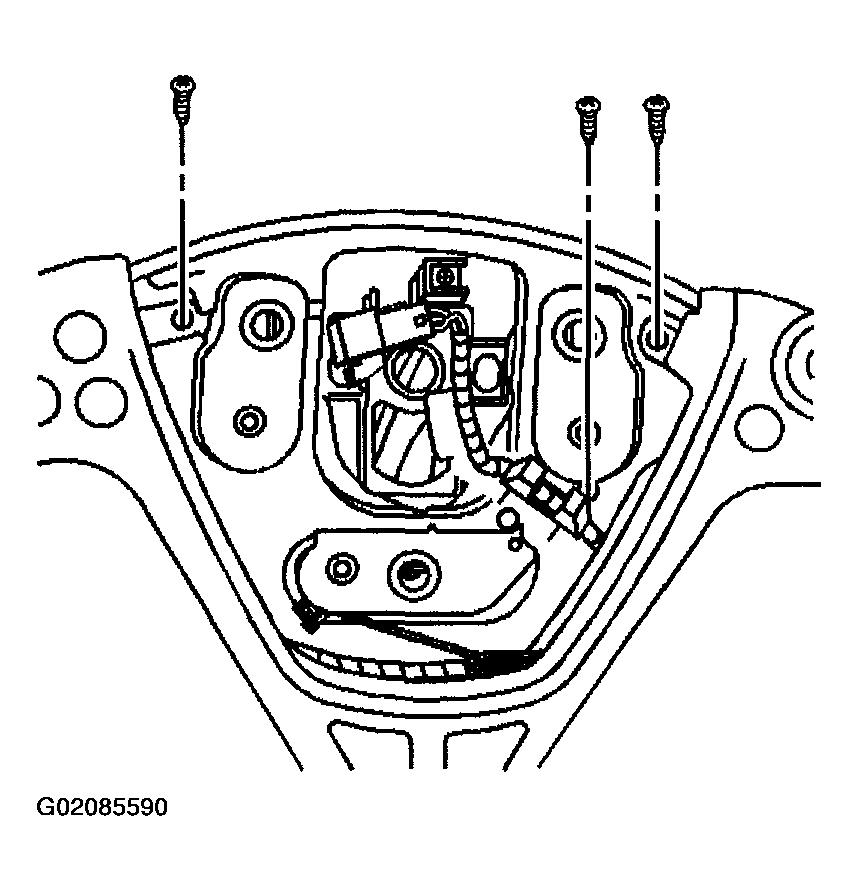

    Fig 2: Steering Wheel Control Switch Retaining Screws
    G02085590Courtesy of GENERAL MOTORS CORP.
