Installation Procedure

  1. Install the wire harness to the steering wheel control switch assembly.
  2. Align the steering control switch assembly engagement tabs to the steering wheel.

    Push in on the steering wheel control switch assembly in order to secure the control switch assembly to the steering wheel.

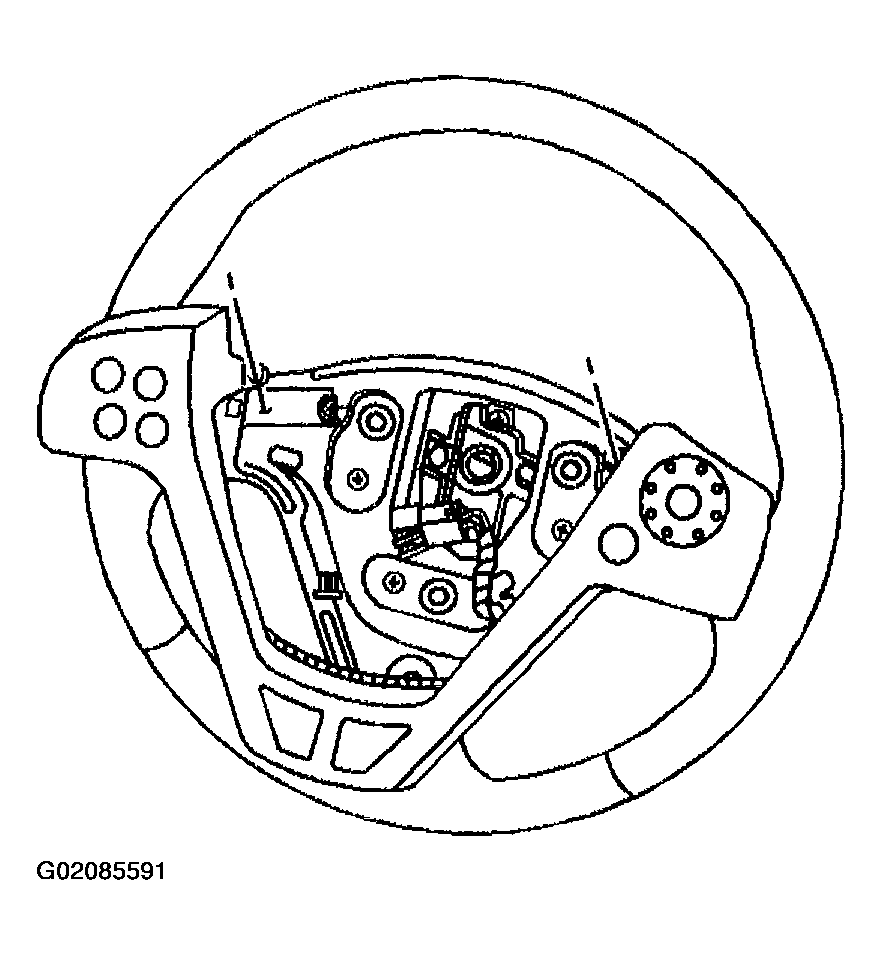

    Fig 1: Securing Control Switch Assembly To Steering Wheel
    G02085591Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the steering wheel control harness retainer and screw.

    Tighten

    Tighten the screw to 2.3 N.m (20 lb in).

  4. Install the steering wheel control switch assembly screws.

    Tighten

    Tighten the screws to 2.3 N.m (20 lb in).

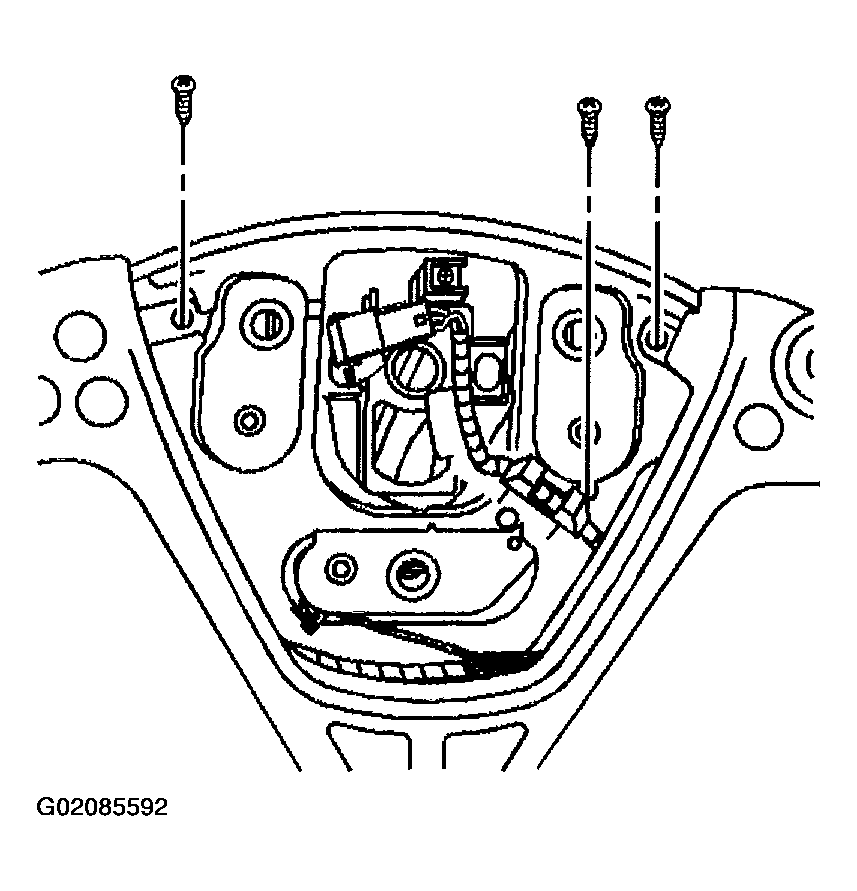

    Fig 2: Steering Wheel Control Harness Retainer And Screws
    G02085592Courtesy of GENERAL MOTORS CORP.
  5. Connect the steering wheel control electrical connector.
  6. Secure the connector to the retaining clip.
  7. Install the steering wheel inflatable restraint module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) in SIR.
  8. Enable the SIR. Refer to SIR Disabling and Enabling ZONE 3 in SIR.

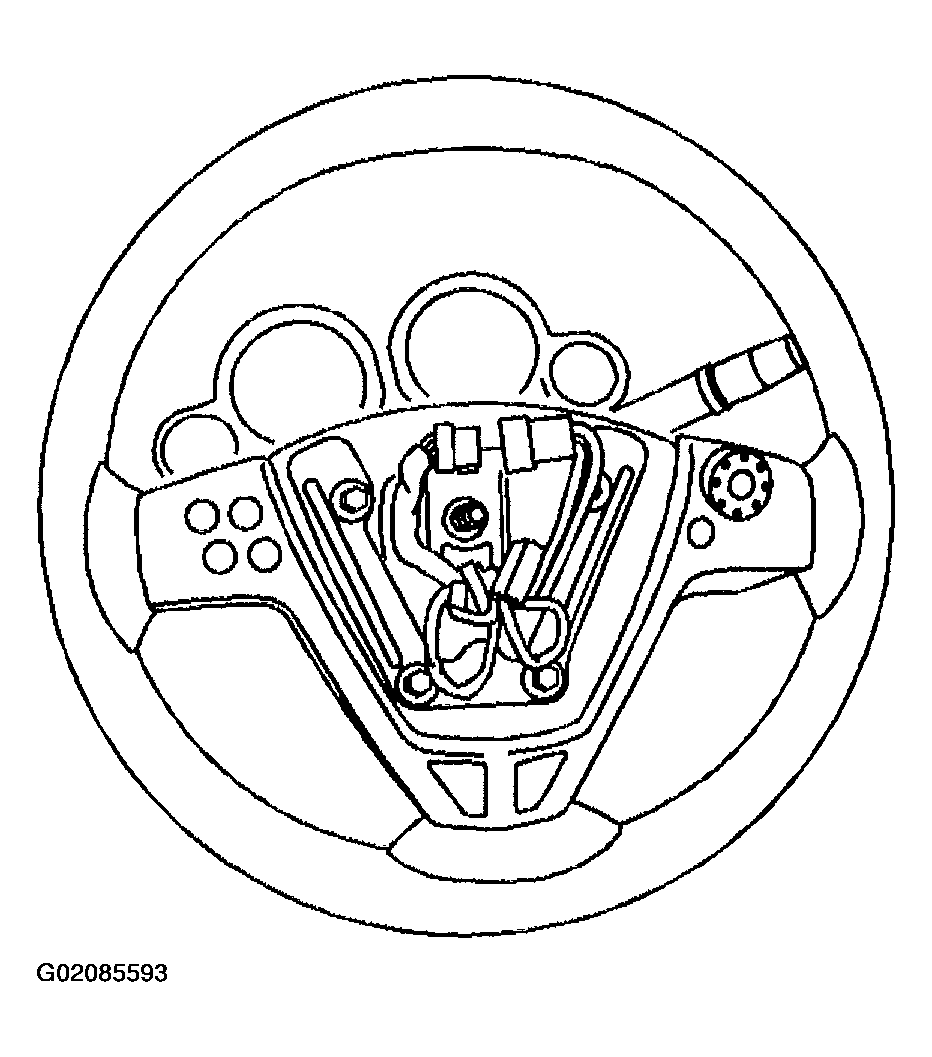

    Fig 3: Steering Wheel Control Electrical Connector
    G02085593Courtesy of GENERAL MOTORS CORP.
