Installation Procedure

  1. Install the upper steering column trim cover (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the retaining screws (1) to the upper steering column trim cover (2).

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

    Fig 1: Retaining Screws To Upper Steering Column Trim Cover
    G02085572Courtesy of GENERAL MOTORS CORP.
  3. Install the lower steering column trim cover by matching the tabs slots on the trim cover with the locking tabs on the upper trim cover and tilting the lower trim cover up.

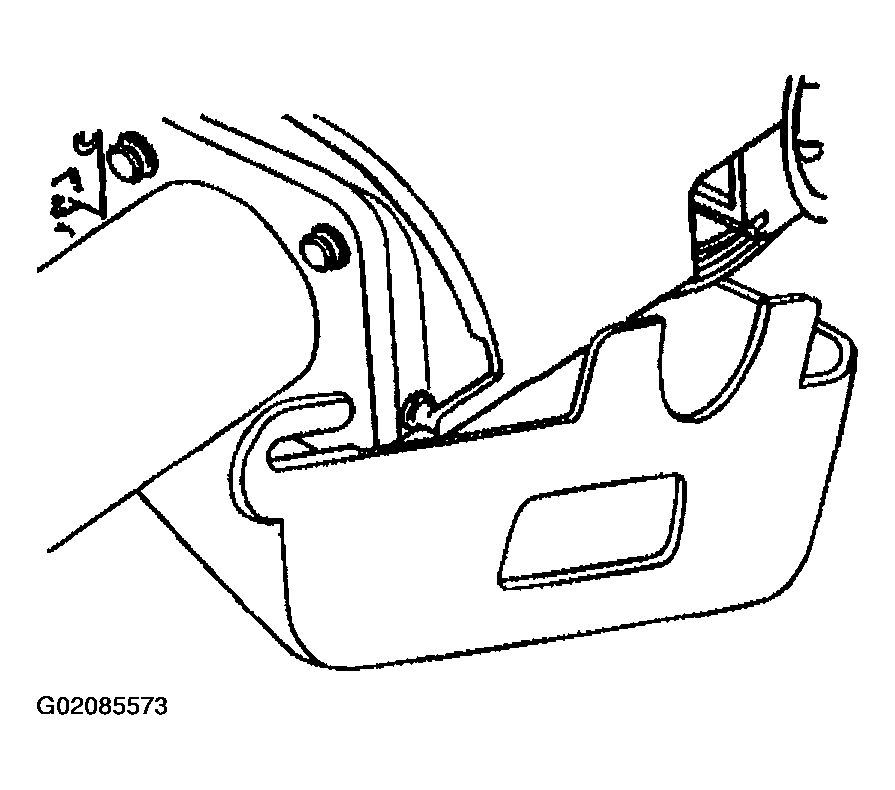

    Fig 2: Lower Steering Column Trim Cover
    G02085573Courtesy of GENERAL MOTORS CORP.
  4. Install the retaining screws (1) to the lower steering column trim cover (2).

    Tighten

    Tighten the screws to 3.5 N.m (31 lb in).

  5. If necessary, install the trim plug to the bottom of the lower trim cover.

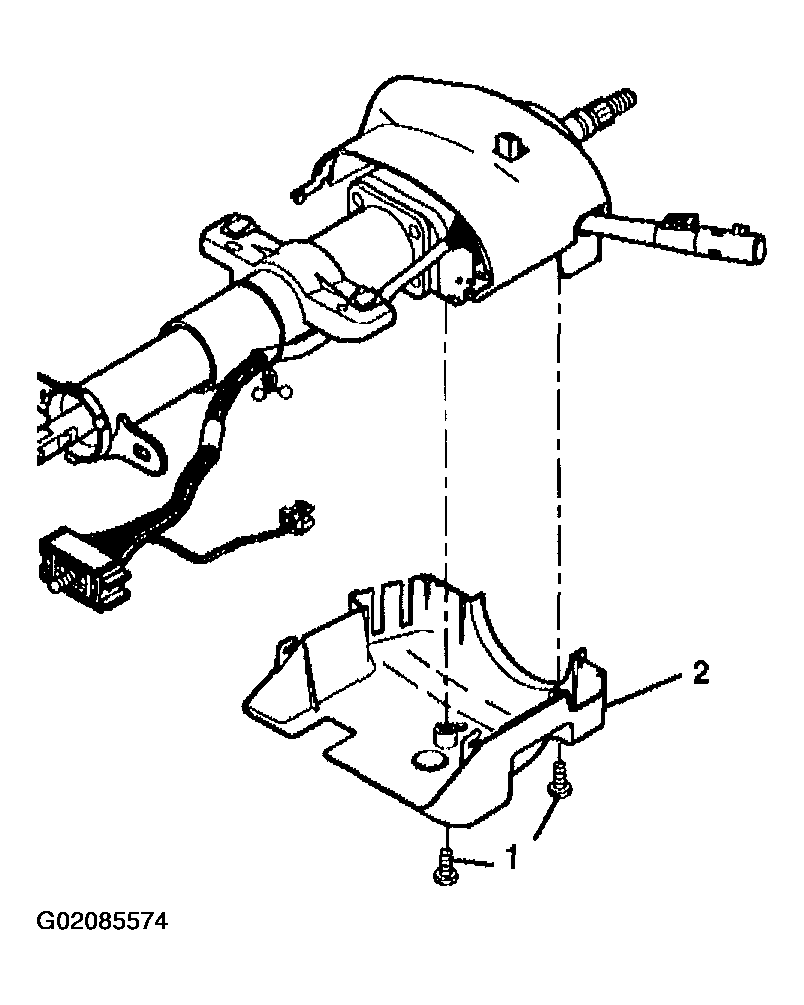

    Fig 3: Retaining Screws To Lower Steering Column Trim Cover
    G02085574Courtesy of GENERAL MOTORS CORP.
  6. Install the tilt steering column lever (1) to the steering column (2).
  7. Install the steering wheel. Refer to STEERING WHEEL REPLACEMENT .
  8. Enable the SIR system. Refer to SIR Disabling and Enabling ZONE 3 in SIR.

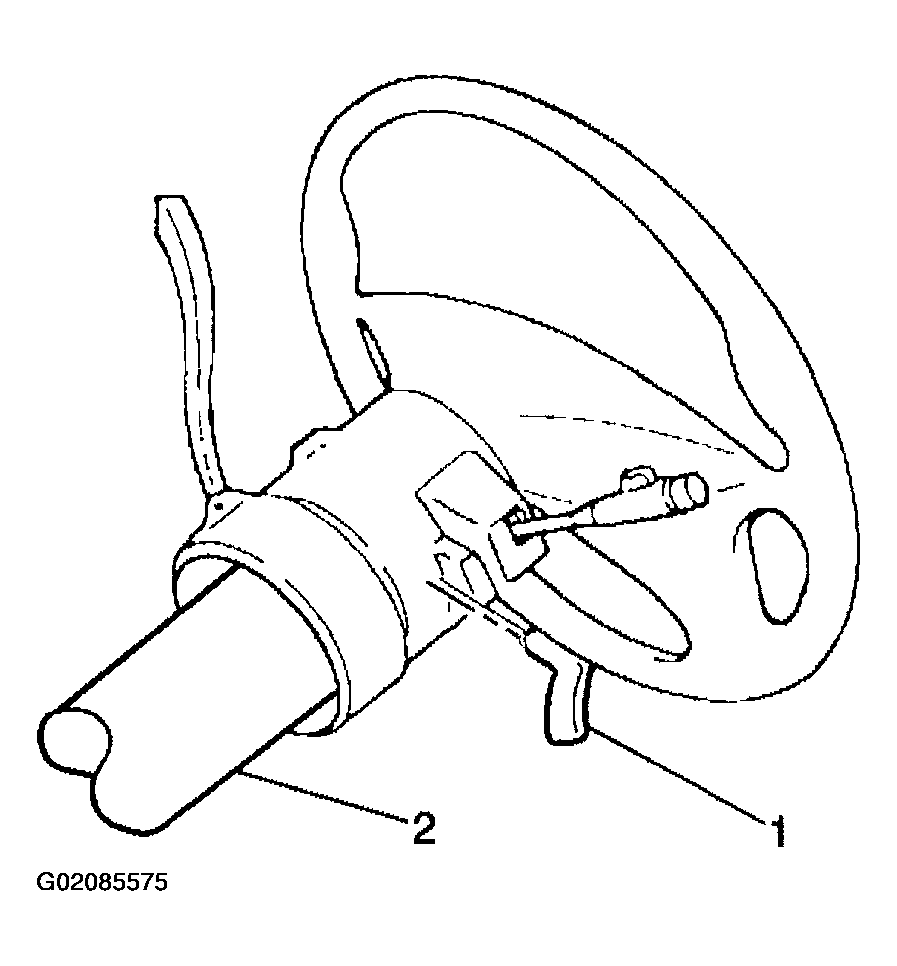

    Fig 4: Tilt Steering Column Lever To Steering Column
    G02085575Courtesy of GENERAL MOTORS CORP.
