Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Disable the inflatable restraint steering wheel module. Refer to SIR Disabling and Enabling ZONE 3 in SIR.
  2. Remove the steering column tilt head (1). Refer to STEERING COLUMN TILT HEAD REPLACEMENT .
  3. Check the steering column for accident damage. Refer to STEERING COLUMN ACCIDENT DAMAGE INSPECTION .

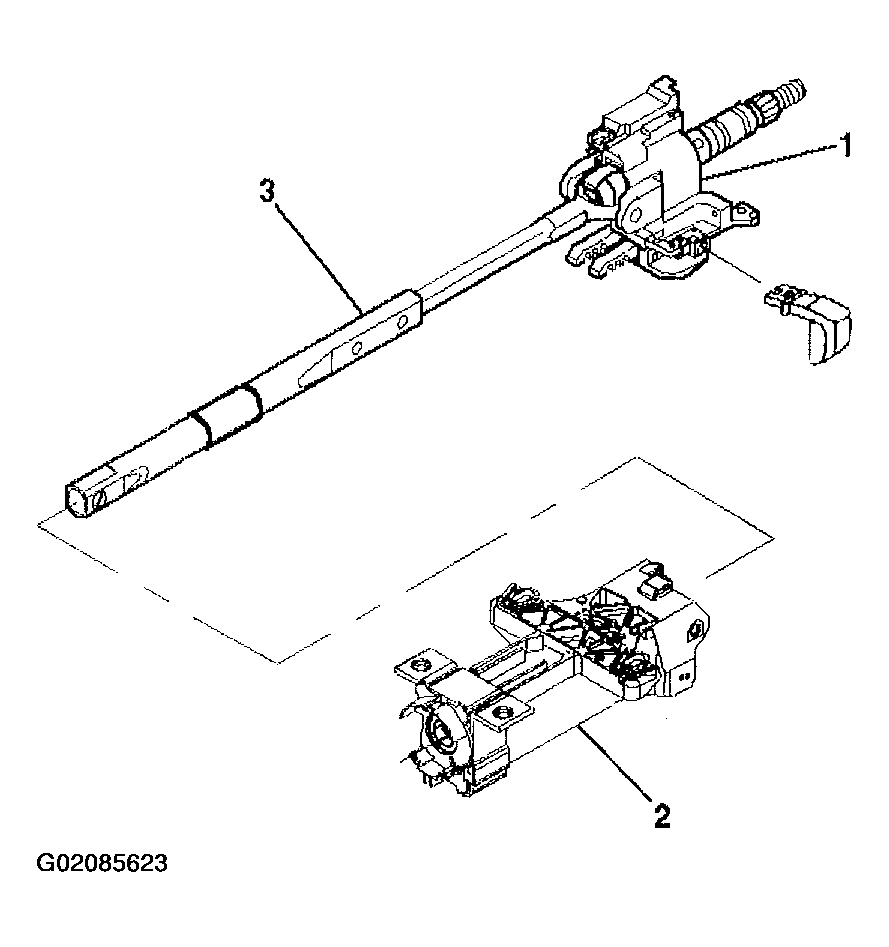

    Fig 1: Steering Column Tilt Head
    G02085623Courtesy of GENERAL MOTORS CORP.
