Installation Procedure

  1. Install the steering column tilt head (1). Refer to STEERING COLUMN TILT HEAD REPLACEMENT .
  2. Enable the inflatable restraint steering wheel module. Refer to SIR Disabling and Enabling ZONE 3 in SIR.

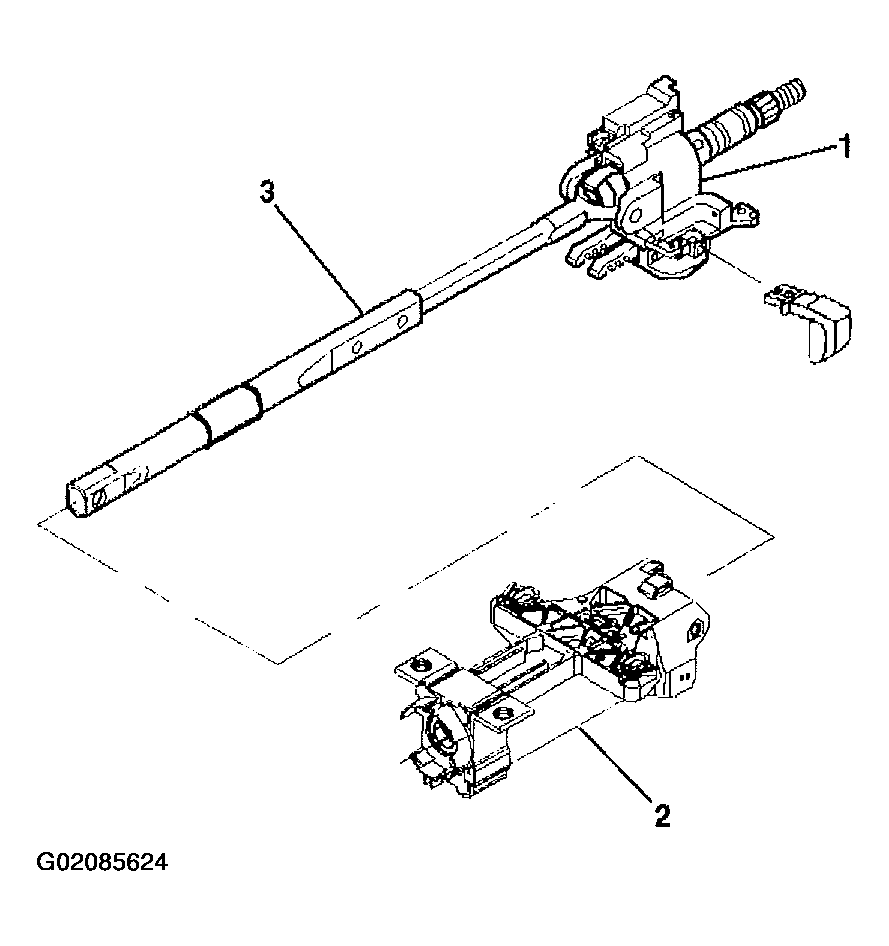

    Fig 1: Steering Column Tilt Head
    G02085624Courtesy of GENERAL MOTORS CORP.
