Installation Procedure

  1. Install the upper intermediate shaft to the steering column.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the upper intermediate shaft to the steering column retaining bolt.

    Tighten

    Tighten the upper intermediate shaft to the steering column retaining bolt to 48 N.m (35 lb ft).

  3. Install the steering column. Refer to STEERING COLUMN REPLACEMENT .

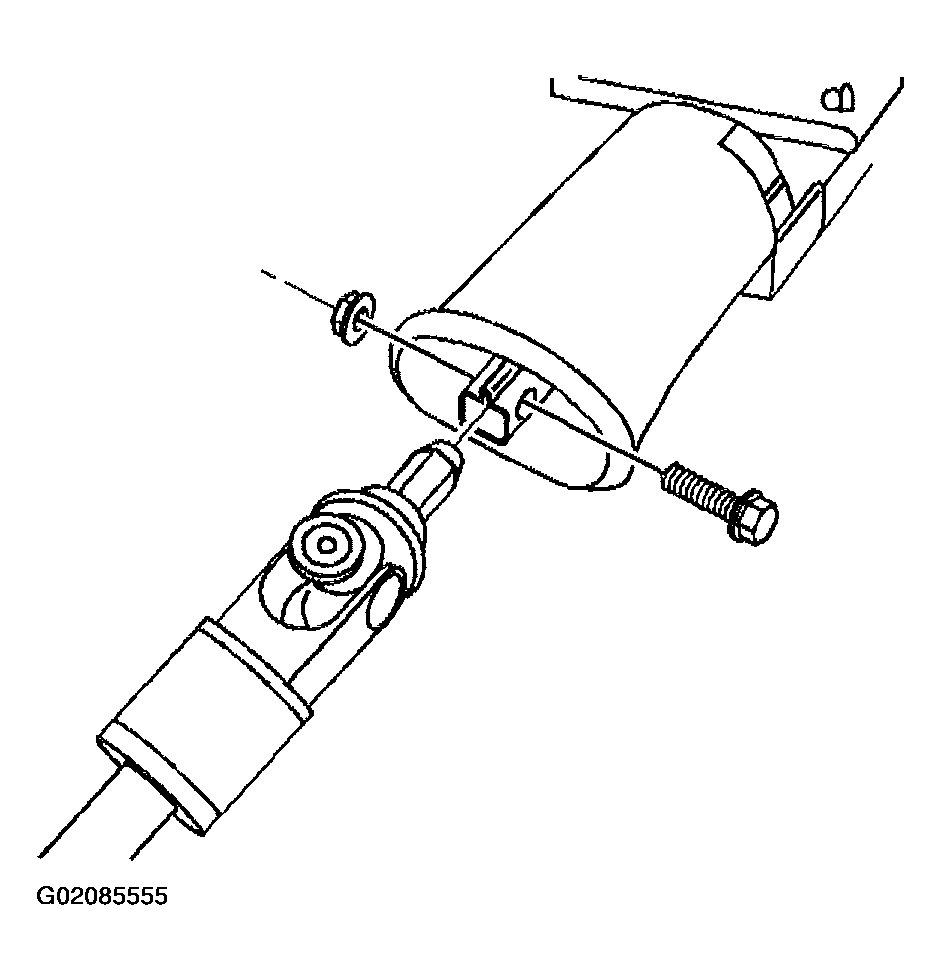

    Fig 1: Upper Intermediate Shaft To Steering Column Retaining Bolt
    G02085555Courtesy of GENERAL MOTORS CORP.
  4. Raise the vehicle. Refer to JACKING AND LIFTING in General Information.
  5. Install the upper intermediate shaft to the lower intermediate shaft.
  6. Install the upper intermediate shaft to the lower intermediate shaft retaining bolt.

    Tighten

    Tighten the retaining bolt to 48 N.m (35 lb ft).

  7. Lower the vehicle.

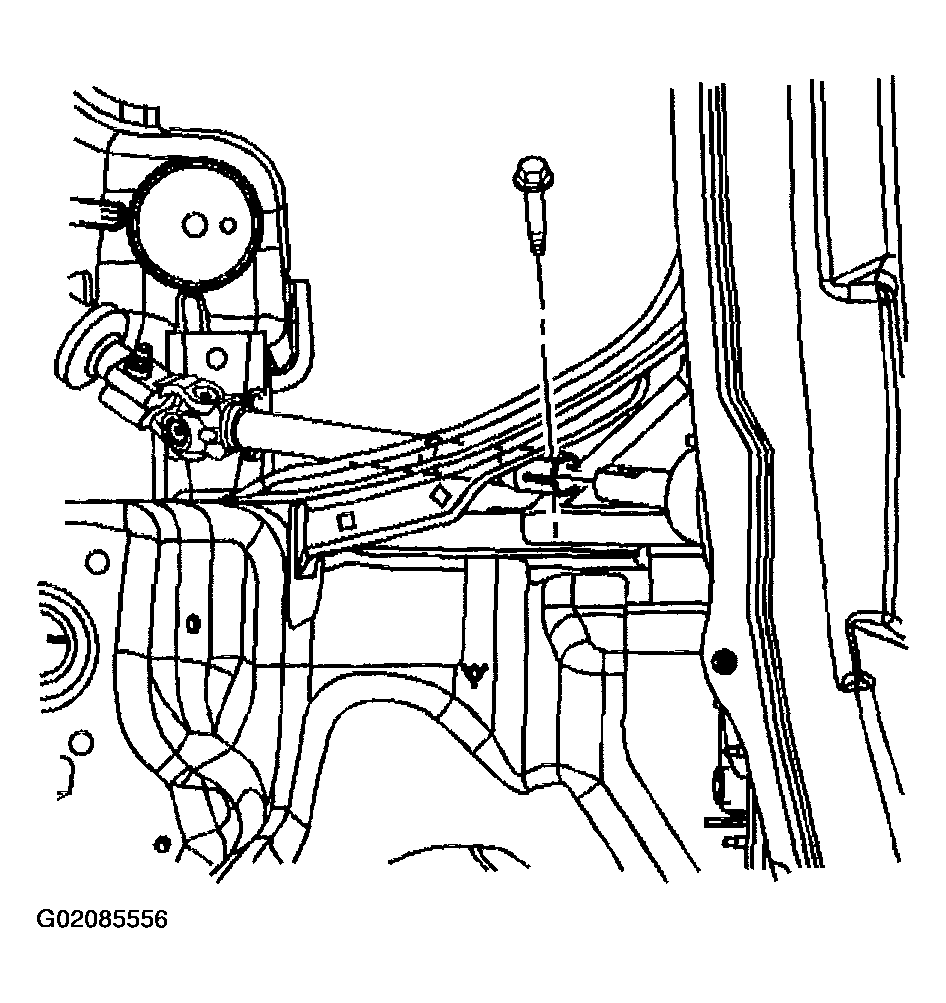

    Fig 2: Upper Intermediate Shaft To Lower Intermediate Shaft Retaining Bolt
    G02085556Courtesy of GENERAL MOTORS CORP.
  8. Unlock the steering column by removing J 42640  from the steering column lower trim cover access hole. See Special Tools and Equipment .
  9. Enable the SIR system. Refer to SIR Disabling and Enabling ZONE 3 in SIR.
    Fig 3: Removing Steering Column Anti Rotation Pin From Steering Column
    G02085557Courtesy of GENERAL MOTORS CORP.
