Removal Procedure

CAUTION: Refer to SIR HANDLING CAUTION .
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the IP (Instrument Panel) upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper
  3. Remove the IP cluster trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster
  4. Remove the screws from the accessory trim panel.
  5. Remove the PSIR module. Refer to REMOVAL & INSTALLATION (PASSENGER-SIDE) .

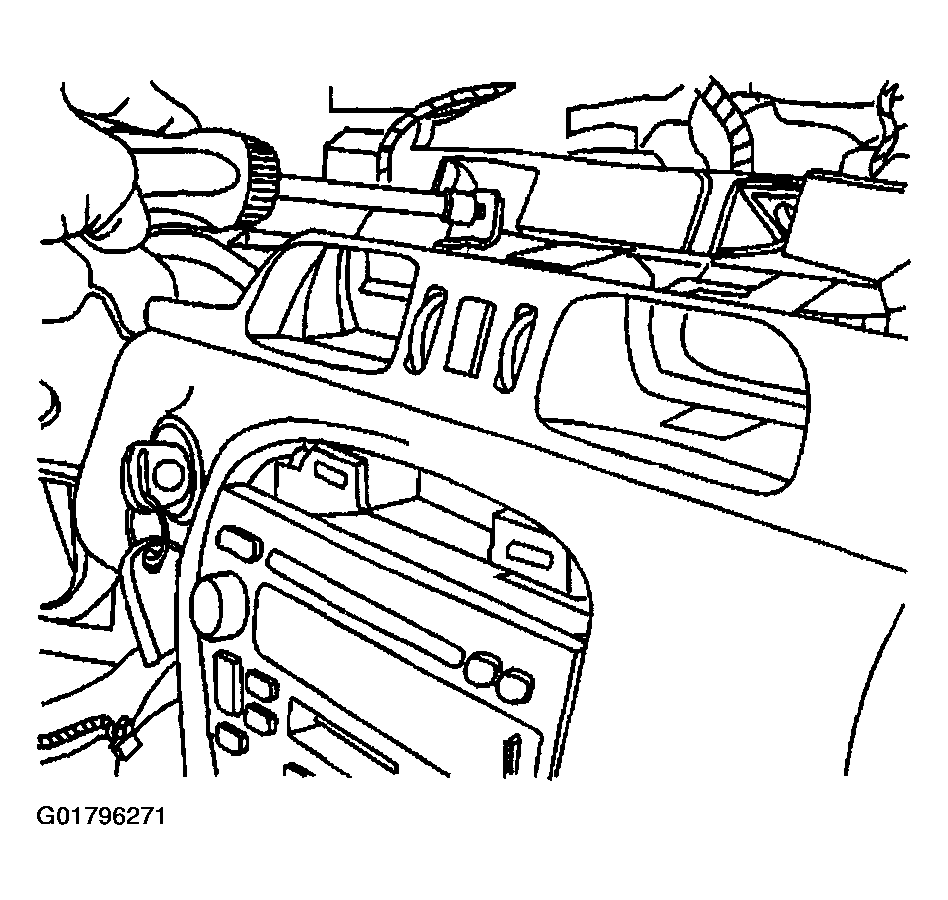

    Fig 1: Removing Trim Plate Replacement - Instrument Panel (I/P) Accessory Right (LHD)
    G01796271Courtesy of GENERAL MOTORS CORP.
  6. Remove the two screws from the straps at the carrier.
  7. Pull rearward on the trim panel in order to disengage the three retainers, and remove the trim plate.

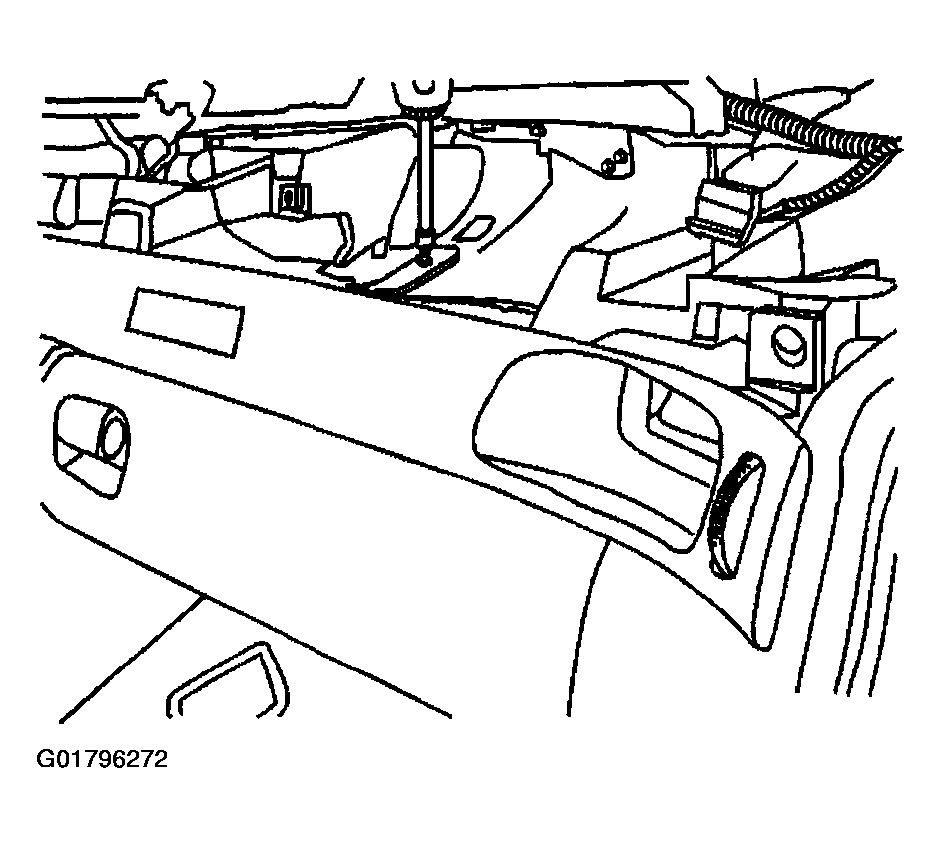

    Fig 2: Removing Screws & Straps At Carrier Right (LHD)
    G01796272Courtesy of GENERAL MOTORS CORP.
