Removal & Installation (Passenger-side)

  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

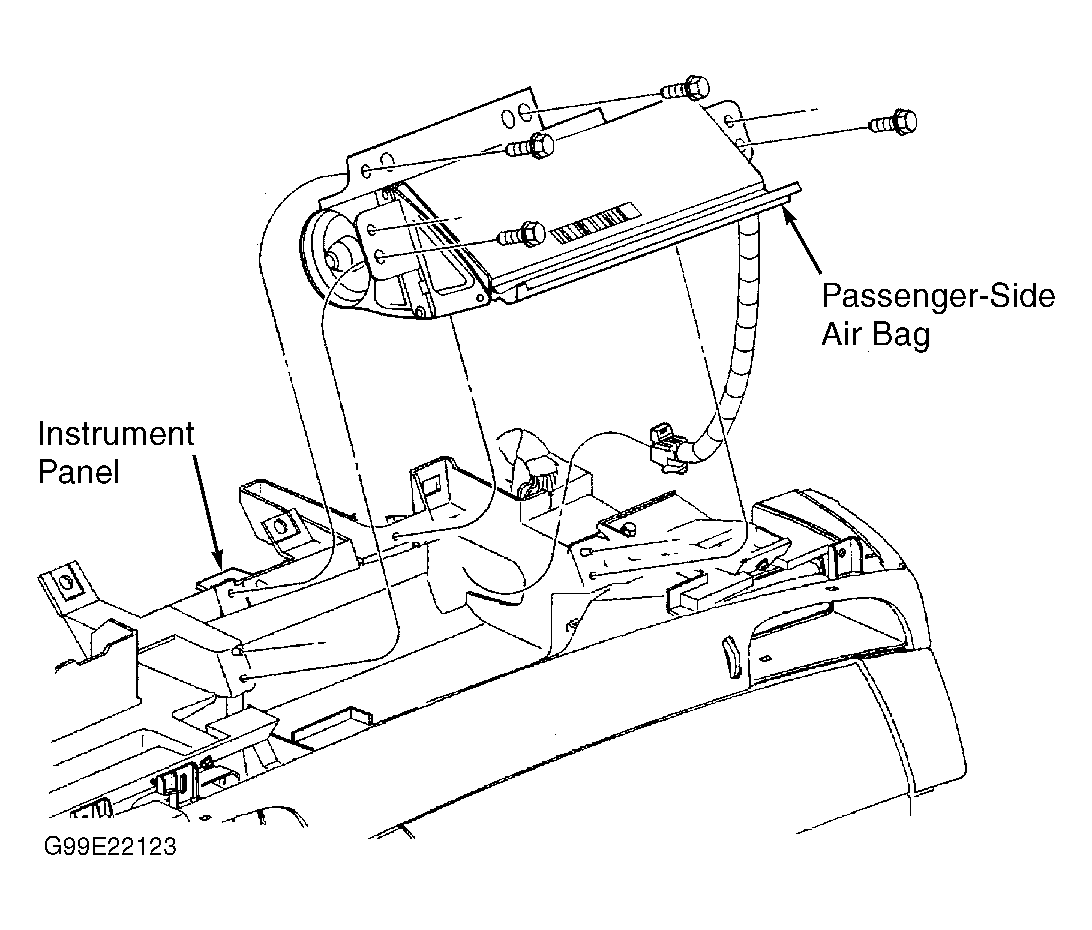

  2. Remove passenger-side sound insulator panel. Disconnect Connector Position Assurance (CPA) clip from passenger-side air bag module Yellow 2-pin connector and disconnect connector. See Figure. Unclip air bag module Yellow 2-pin connector from above passenger-side sound insulator panel. Remove instrument panel upper trim pad. See INSTRUMENT PANEL UPPER TRIM PAD . Remove passenger-side air bag module bolts. Remove passenger-side air bag module. See Figure.
  3. To install, reverse removal procedure. Tighten passenger-side air bag module and instrument panel upper trim pad screws to specification. See TORQUE SPECIFICATIONS . Activate air bag system.
