Removal Procedure

CAUTION: Refer to SIR HANDLING CAUTION .
  1. Disable the SIR. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the IP upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper
  3. Remove the IP cluster trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster
  4. Remove the inflatable restraint instrument panel module. Refer to REMOVAL & INSTALLATION (PASSENGER-SIDE) .
  5. Remove the screws from trim panel.

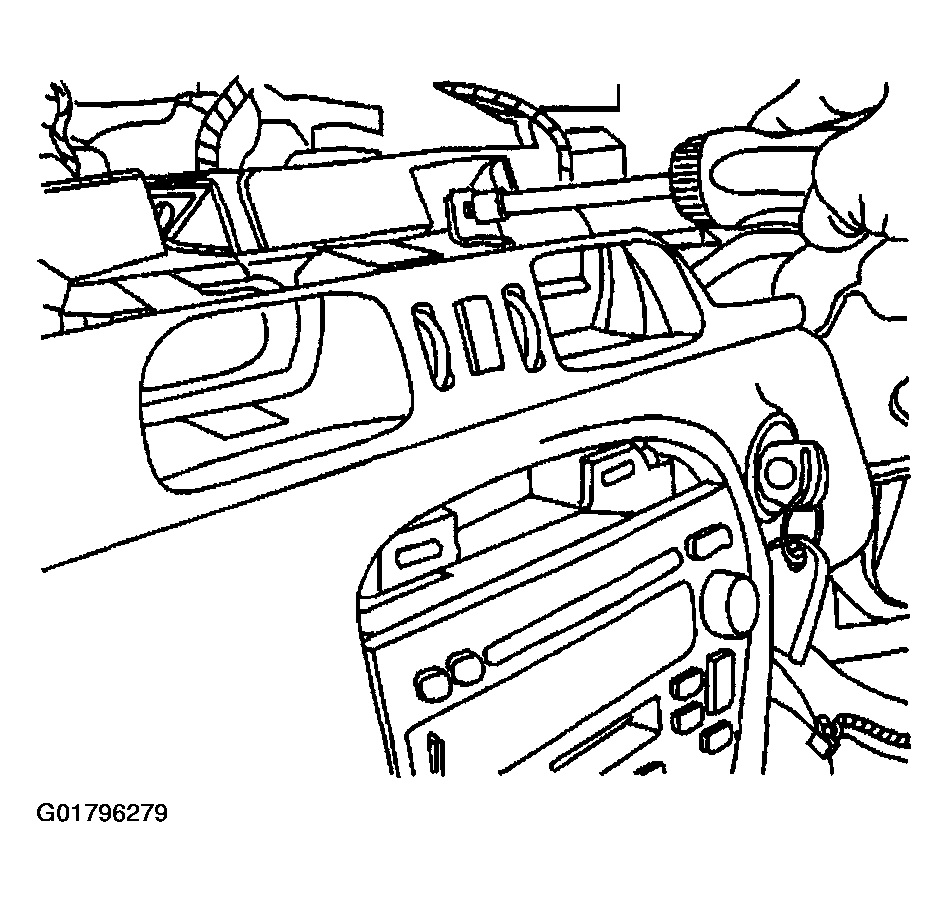

    Fig 1: Removing Trim Plate Replacement - Instrument Panel (I/P) Accessory Left (RHD)
    G01796279Courtesy of GENERAL MOTORS CORP.
  6. Remove the two screws from the straps at the carrier.
  7. Pull rearward on the trim panel in order to remove the trim panel.

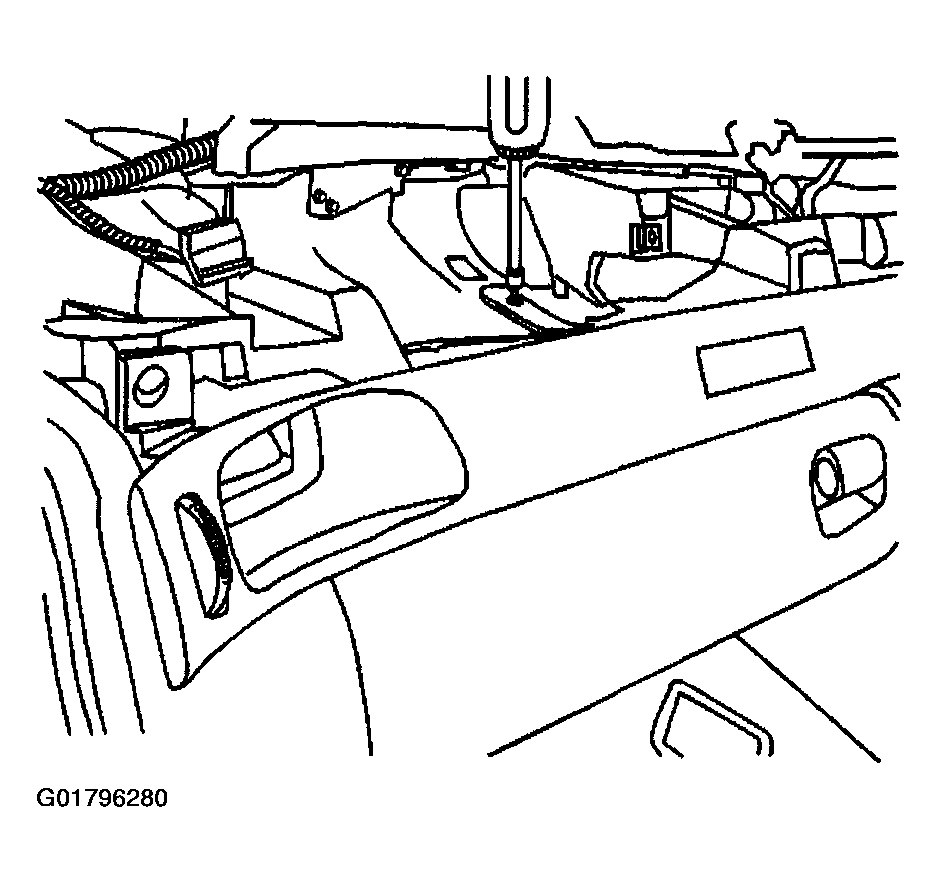

    Fig 2: Removing Screws & Straps At Carrier Left (RHD)
    G01796280Courtesy of GENERAL MOTORS CORP.
