Installation Procedure

  1. Align the trim panel with the IP retainer.
  2. Push forward on the trim plate in order to engage the three retainers, while aligning the A/C housing with the A/C ducts.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the IP cluster trim panel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster
  5. Install the IP upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper
  6. Enable the SIR system. Refer to ACTIVATING SYSTEM .

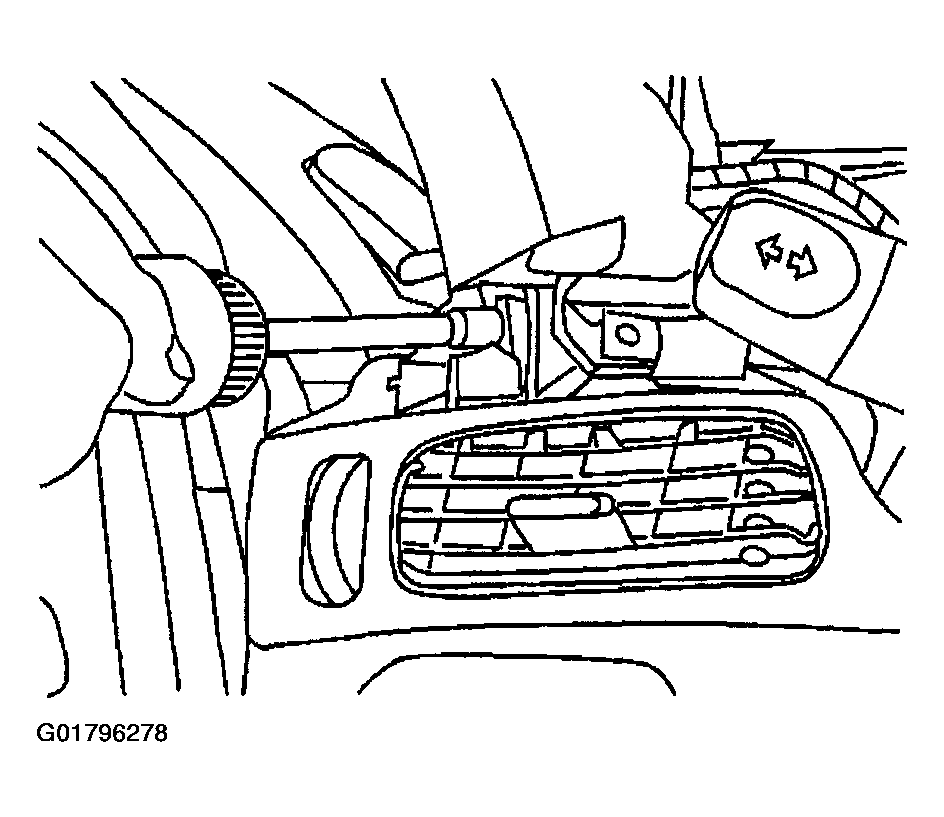

    Fig 1: Installing Trim Plate Replacement - Instrument Panel (I/P) Accessory Left (LHD)
    G01796278Courtesy of GENERAL MOTORS CORP.
