Activating System

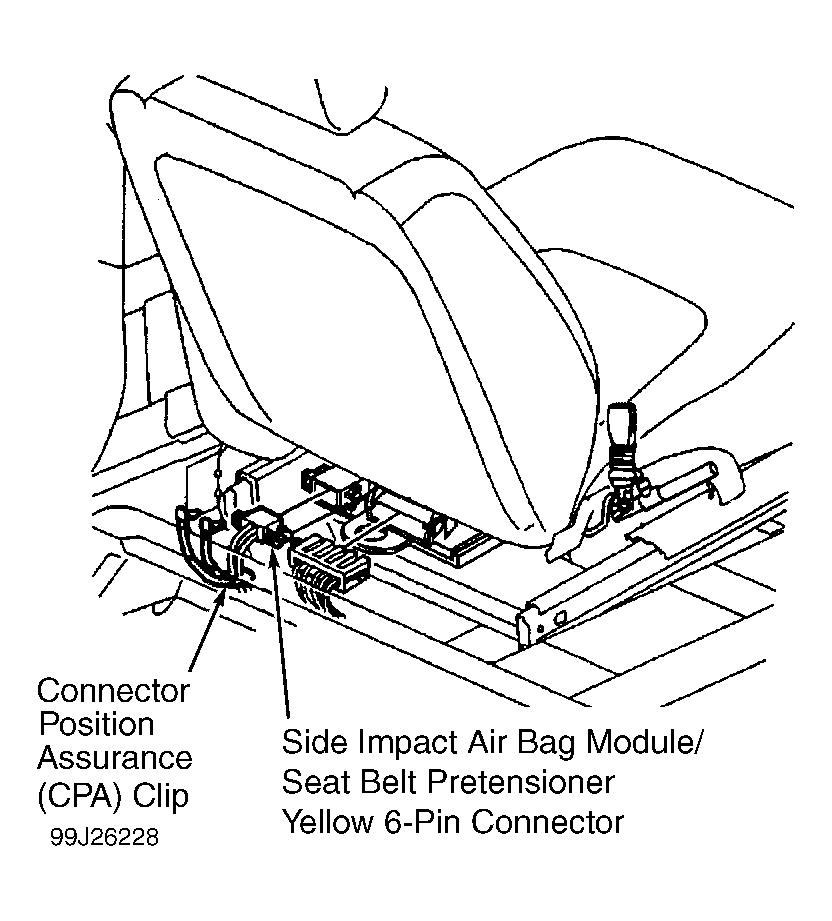

  1. Remove key from ignition switch. Connect passenger side impact air bag module/seat belt pretensioner Yellow 6-pin connector, located under passenger-side front seat. See Figure. Install Connector Position Assurance (CPA) clip. Connect driver side impact air bag module/seat belt pretensioner Yellow 6-pin connector, located under driver-side front seat. Install CPA clip.

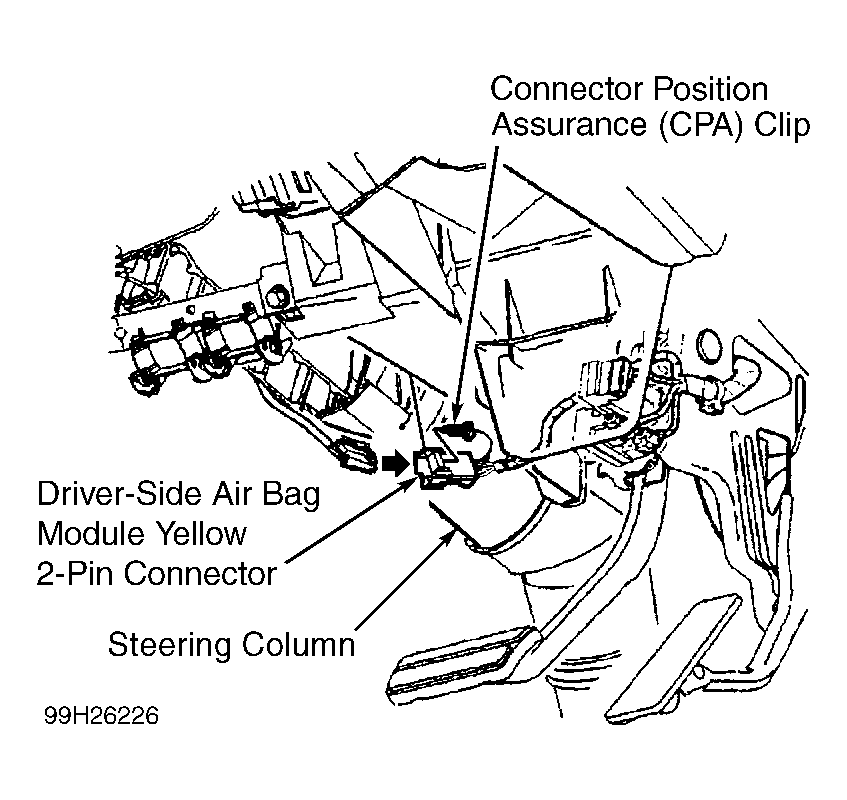

  2. Connect passenger-side air bag module Yellow 2-pin connector. Install CPA clip. See Figure. Install passenger-side sound insulator panel. Connect driver-side air bag module Yellow 2-pin connector, located at base of steering column. See Figure. Install CPA clip. Install driver-side sound insulator panel.
  3. Install SIR fuse in fuse block, located under driver-side rear seat cushion. Install rear seat cushion. Check SIR system for proper operation. See SYSTEM OPERATION CHECK .
