Installation Procedure

  1. Install the speaker wiring harness to the trim pad (2).
  2. Install the speaker grilles to the trim pad (2).

    Fold over the speaker grille retaining tabs, in order to secure the speaker grilles.

  3. Install the speakers to the trim pad (2). Refer to SPEAKER REPLACEMENT - FRONT .
  4. Install the I/P trim pad (2) to the I/P assembly, and reconnect the electrical connection (1).

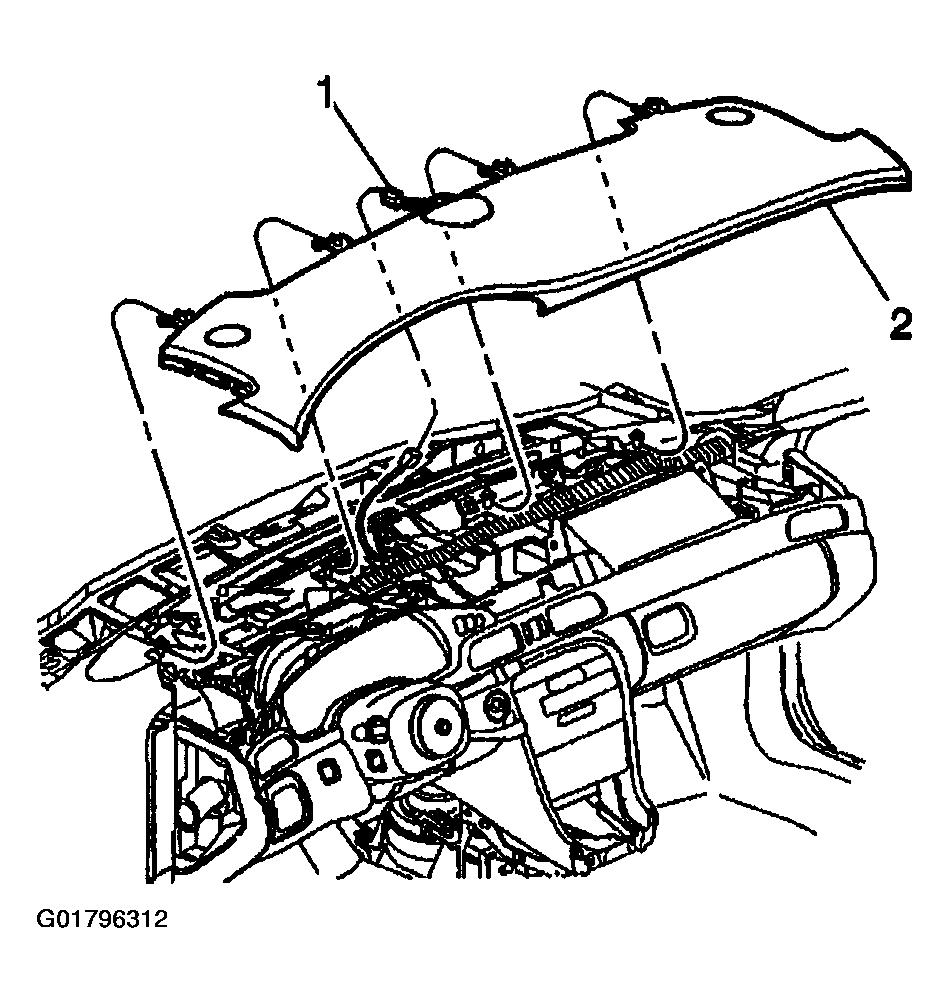

    Fig 1: Connecting Electrical Connector & Trim Pad
    G01796312Courtesy of GENERAL MOTORS CORP.
  5. Slide the I/P pad forward in order to engage the front retainers to the I/P carrier.
  6. Align the rear edge of the I/P pad (1) with the I/P cluster bezel, and snap the retainers into the upper pad.
    NOTE: Refer to FASTENER NOTICE .
  7. Install the fasteners (2) into the air outlet deflector openings.

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

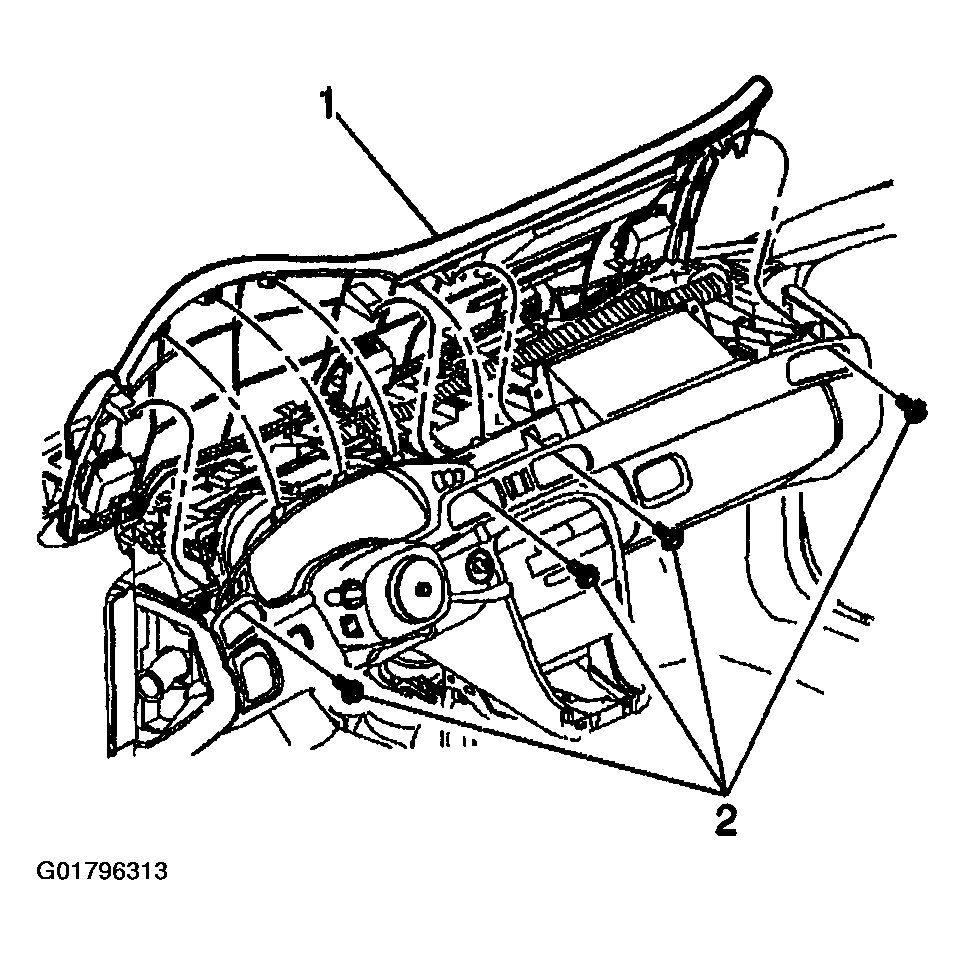

    Fig 2: Installing I/P Pad & Fasteners
    G01796313Courtesy of GENERAL MOTORS CORP.
  8. Open the air outlets (1).
  9. Install the air outlet vents. Refer to INSTRUMENT PANEL .
  10. Install the garnish moldings to the right and the left windshield. Refer to GARNISH MOLDING REPLACEMENT - WINDSHIELD PILL .
  11. Enable the SIR. Refer to ACTIVATING SYSTEM
    Fig 3: Open Air Outlets
    G01796314Courtesy of GENERAL MOTORS CORP.
