Installation Procedure

NOTE: When removing or installing the center console, do not allow the metal brackets to scrape the seats and damage the material.
  1. Partially install the floor console.
  2. Lift up the rear of the floor console to access the cellular phone connections.
  3. Connect the cellular phone electrical connector (1).
  4. Connect the cellular phone coaxial cable (2).

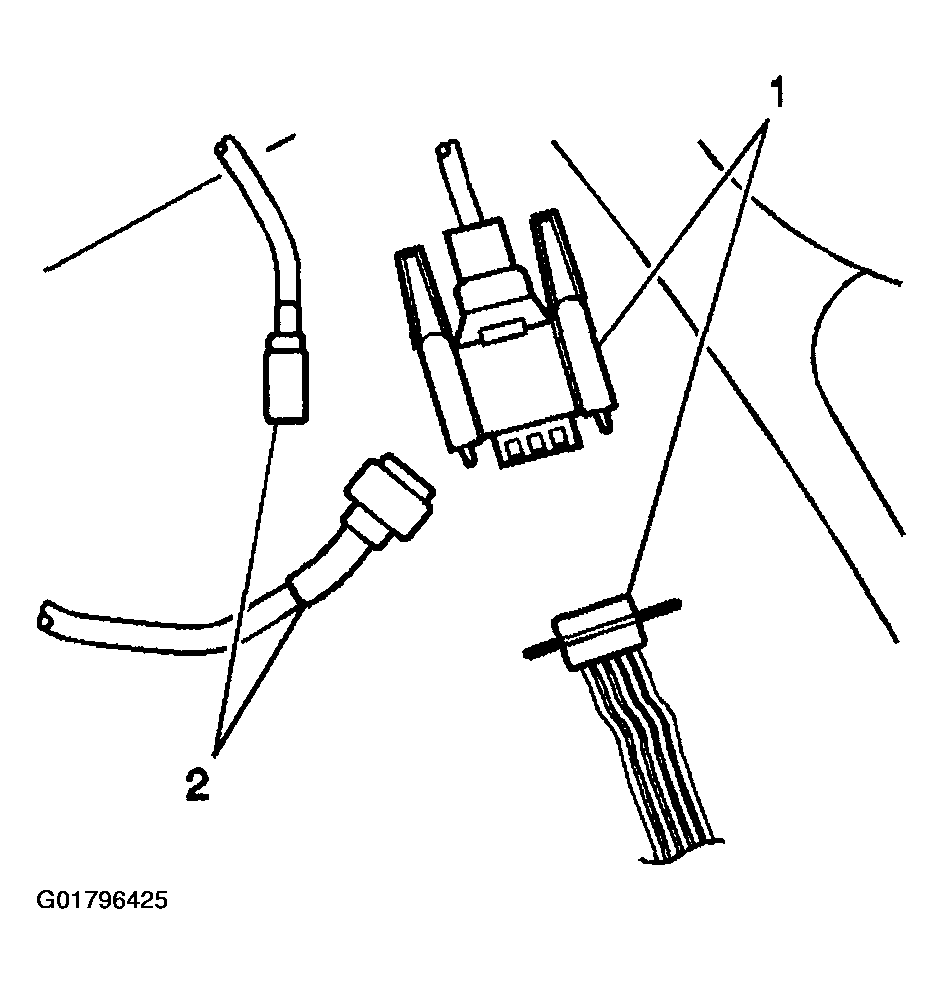

    Fig 1: Connecting Cellular Phone Electrical Connector & Cellular Phone Coaxial Cable
    G01796425Courtesy of GENERAL MOTORS CORP.
  5. Connect the floor console electrical connectors.
  6. Lift up on the rear of the floor console (1) and slide the console forward in order to align the front edges of the floor console with the lower IP.

    Place the rear of the floor console onto the rear studs.

  7. Install the screws (2) through the floor console (1) to lower IP.

    Tighten

    Tighten the screws (2) to 2 N.m (18 lb in).

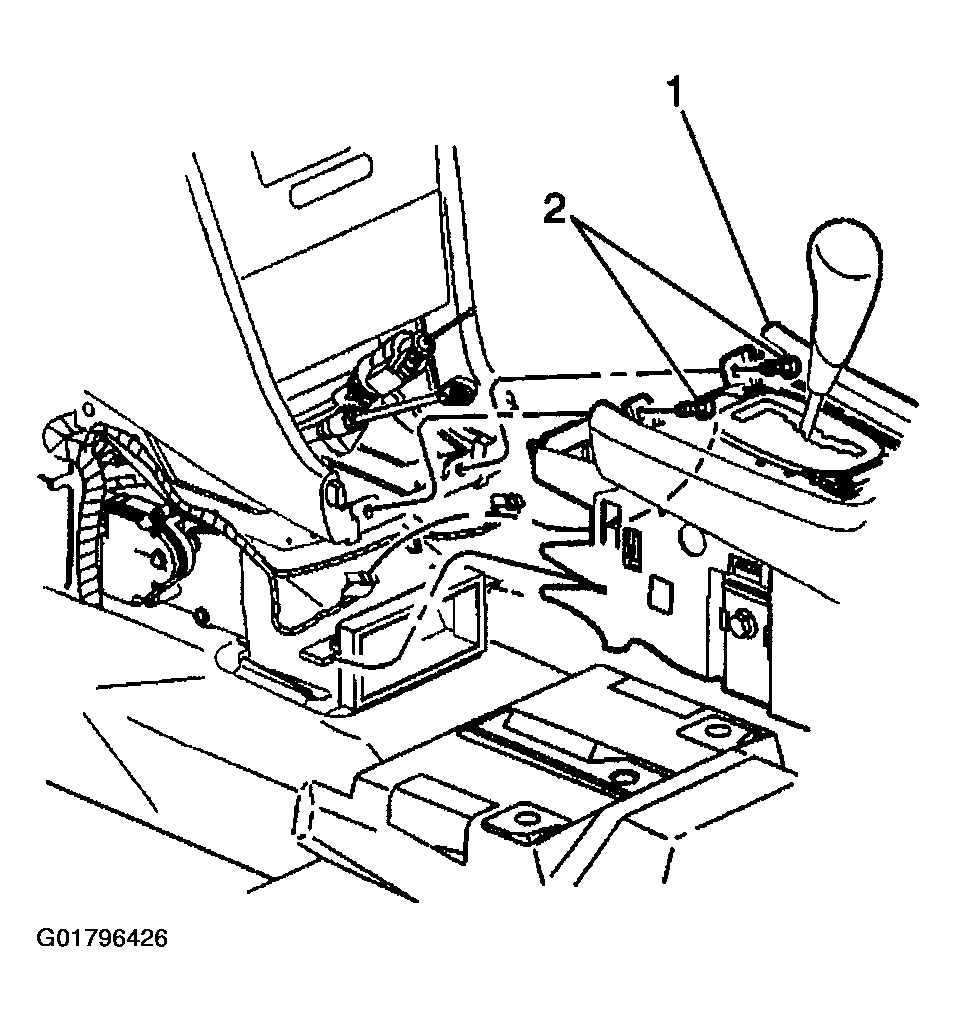

    Fig 2: Installing Screws, Console & Lower Instrument Panel
    G01796426Courtesy of GENERAL MOTORS CORP.
  8. Install the nuts (2) to the studs.

    Tighten

    Tighten the nuts (2) to 10 N.m (89 lb in).

  9. Install the bolts (1).

    Tighten

    Tighten the bolts (1) to 10 N.m (89 lb in).

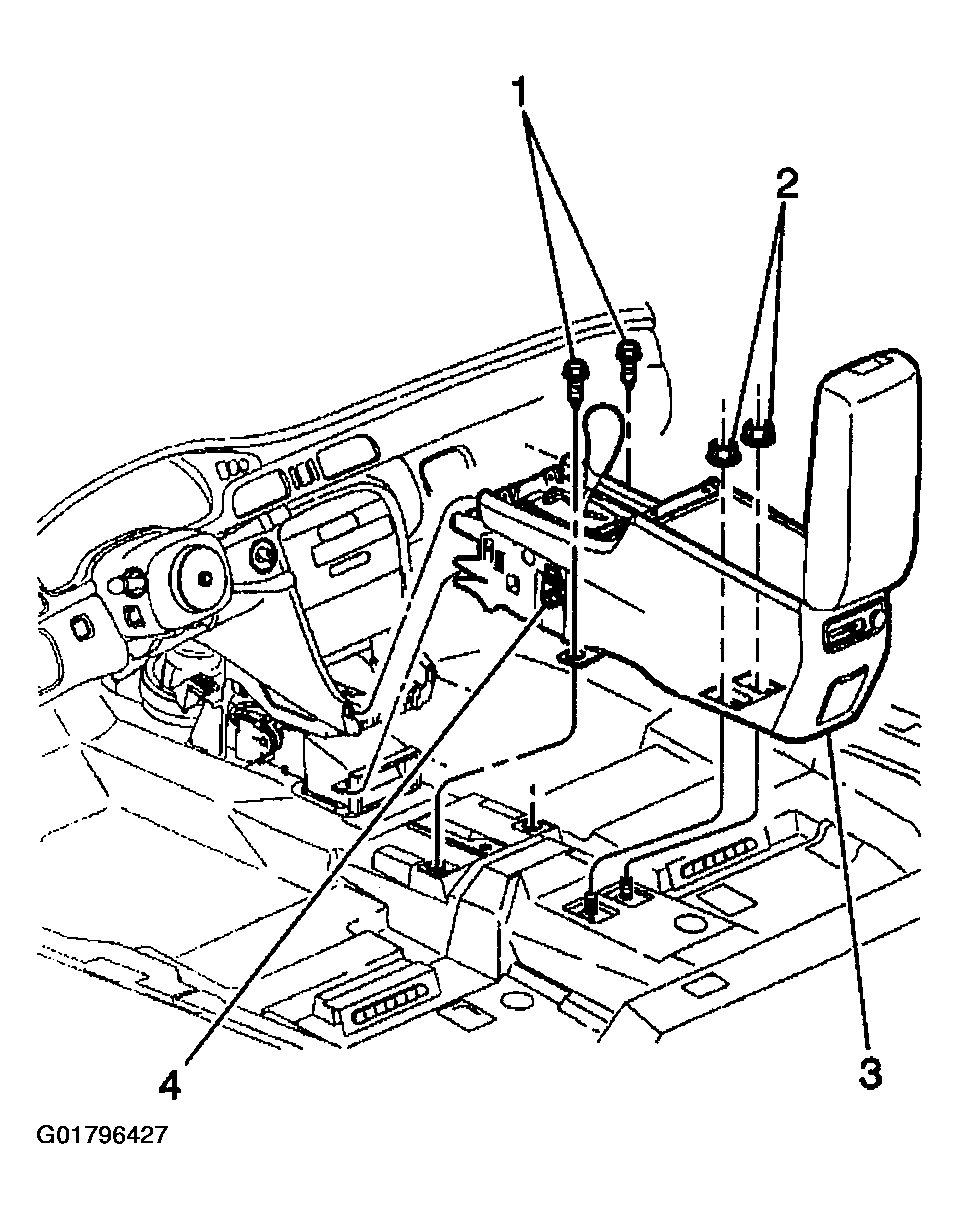

    Fig 3: Installing Bolts & Nuts Metal Bracket Arms
    G01796427Courtesy of GENERAL MOTORS CORP.
  10. Connect the electrical connectors (1,2,3) on both sides of the console.

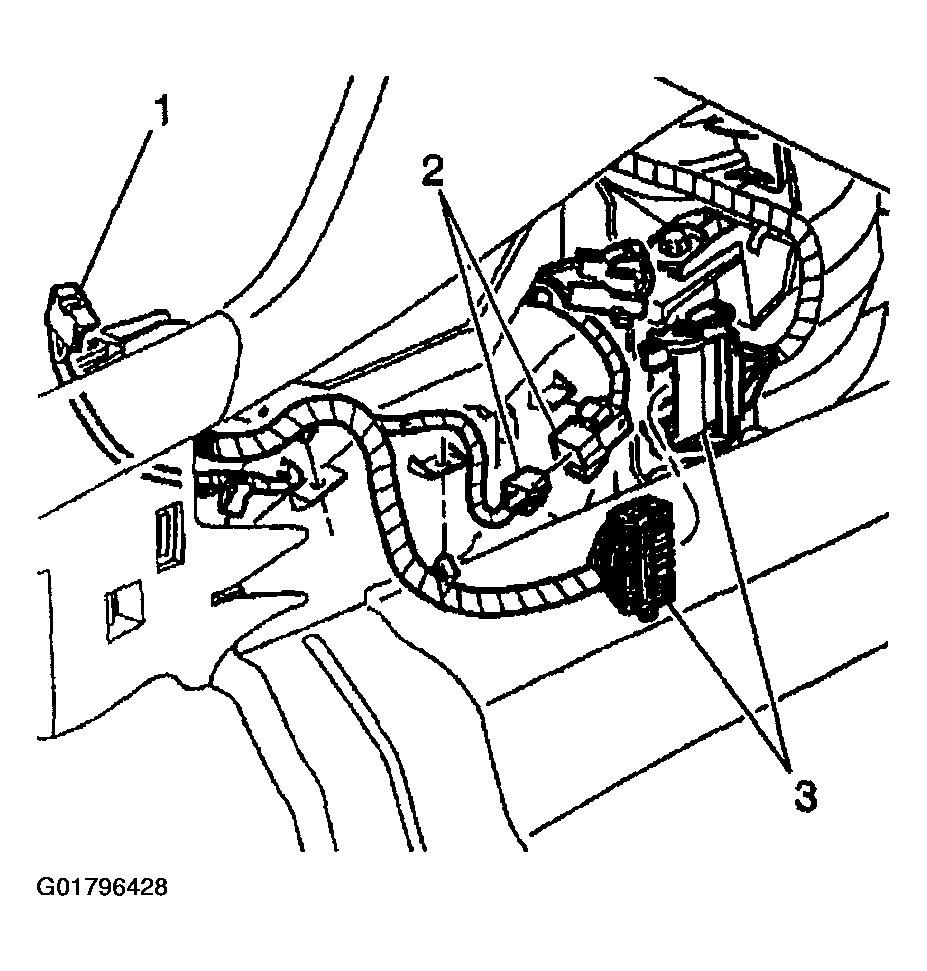

    Fig 4: Connecting Floor Console Electrical Connectors
    G01796428Courtesy of GENERAL MOTORS CORP.
  11. Install the cover (1) to the floor of the storage bin.
  12. Install the park lock cable to the shifter. Refer to PARK LOCK CABLE .
  13. Install the shift cable. Refer to SHIFT CABLE (CONSOLE SHIFT) .
  14. Install the left console trim panel. Refer to Console Trim Panel Replacement - Left
  15. Install the right console trim panel. Refer to Console Trim Panel Replacement - Right
  16. Install the console trim plate. Refer to Trim Plate Replacement - Console
  17. Install the storage bins or the CD changer as needed. Refer to Console Storage Bin Replacement  or REMOTE CD CHANGER REPLACEMENT .
  18. Enable the SIR. Refer to ACTIVATING SYSTEM .

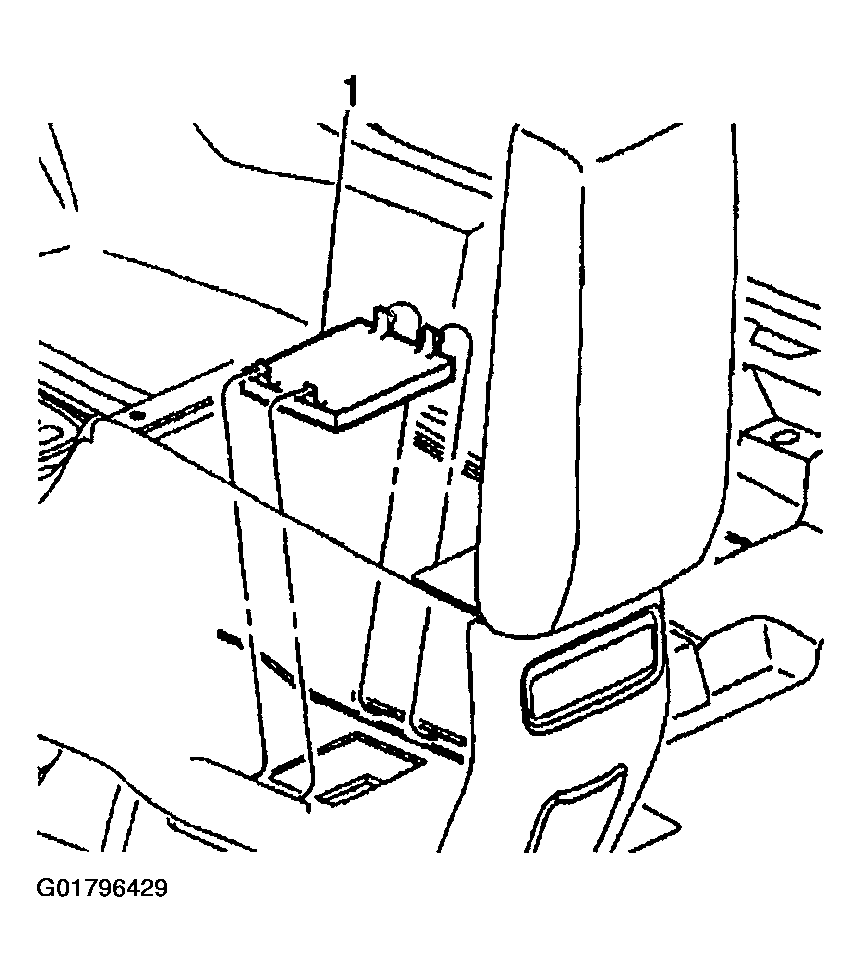

    Fig 5: Installing Cover & Floor Of Storage Bin
    G01796429Courtesy of GENERAL MOTORS CORP.
