Installation Procedure

Position the console assembly on the floor in the vehicle.
Connect the console electrical connectors.
Lift up on the rear of the center console and slide the center console (1) forward in order to align the front edges of the center console with the lower IP.
Place the rear of the center console (1) onto the rear studs.

NOTE: Refer to FASTENER NOTICE .
Install the 2 fasteners (2) from the center console (1) to lower IP.
Tighten

Tighten the fasteners (2) to 2 N.m (18 lb in).

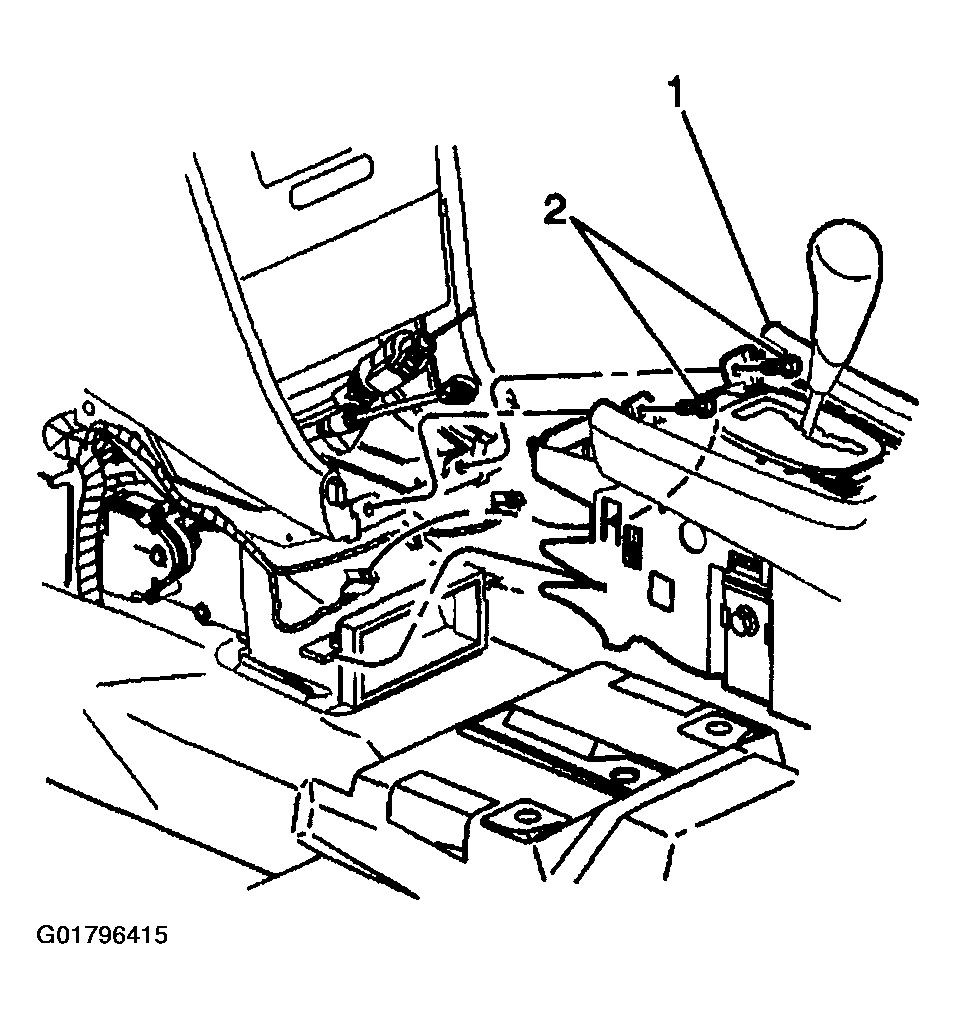

Fig 1: Installing Fasteners & Console
Courtesy of GENERAL MOTORS CORP.
Install the 2 nuts (2) to the floor studs in the center console compartment.
Tighten

Tighten the fasteners (2) to 10 N.m (89 lb in).
Install the fasteners (1) to the metal bracket arms on the console.
Tighten

Tighten the fasteners (1) to 10 N.m (89 lb in).

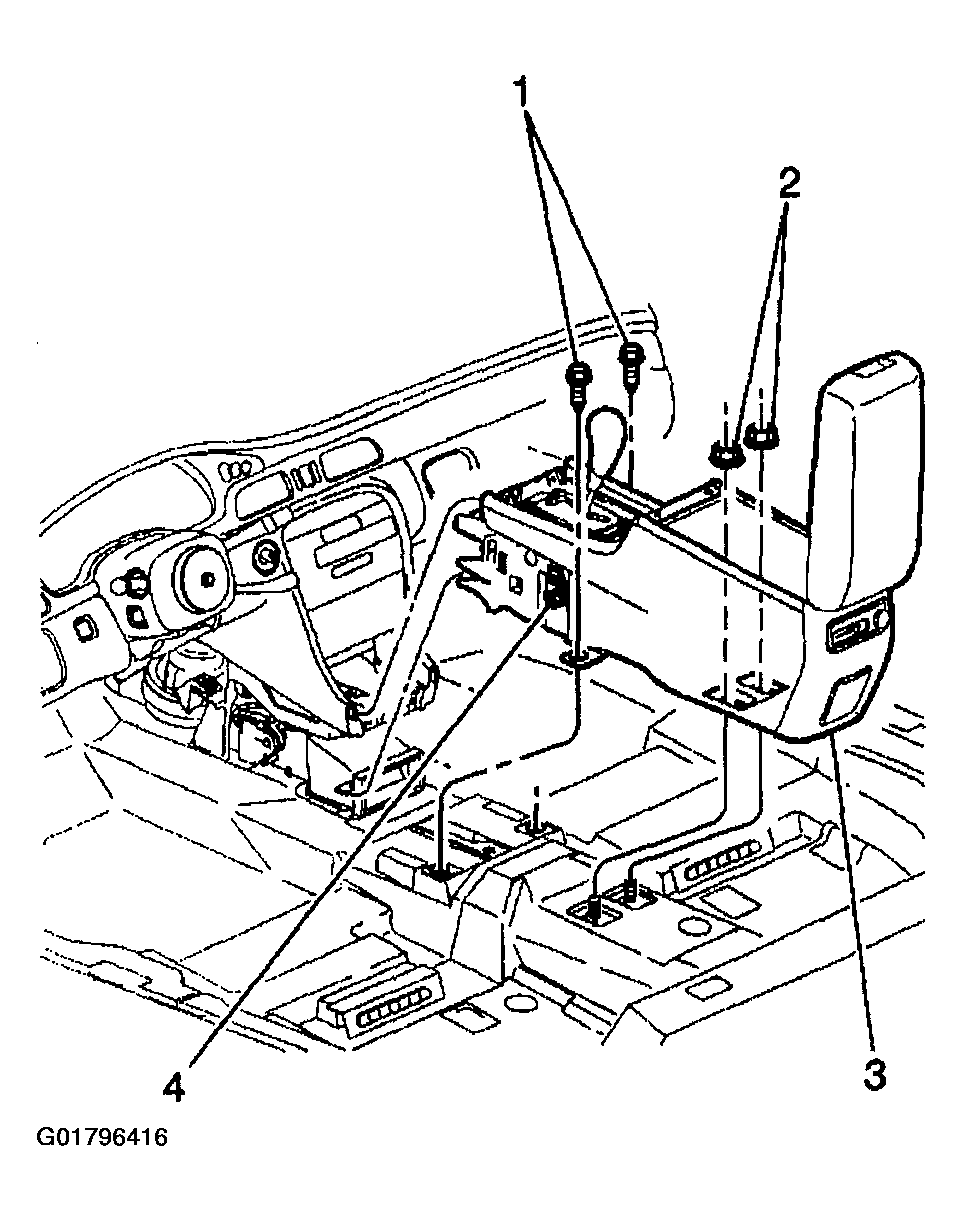

Fig 2: Installing Nuts & Fastener
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connectors (1,2,3) on both sides of the console.

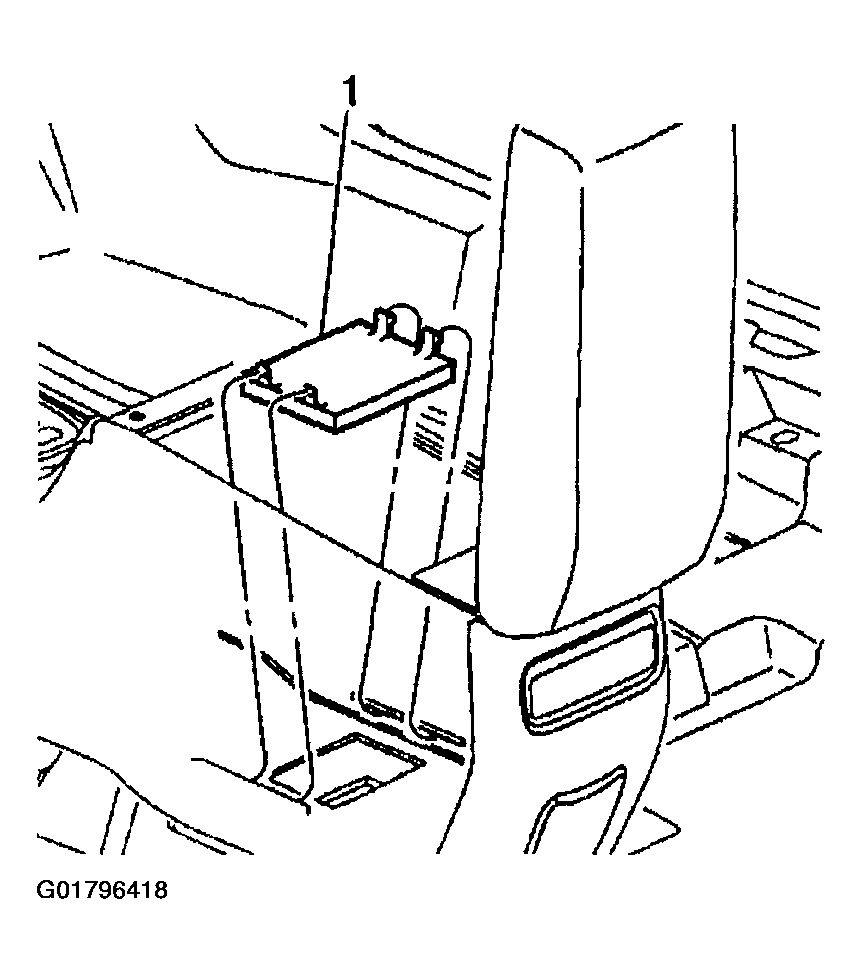

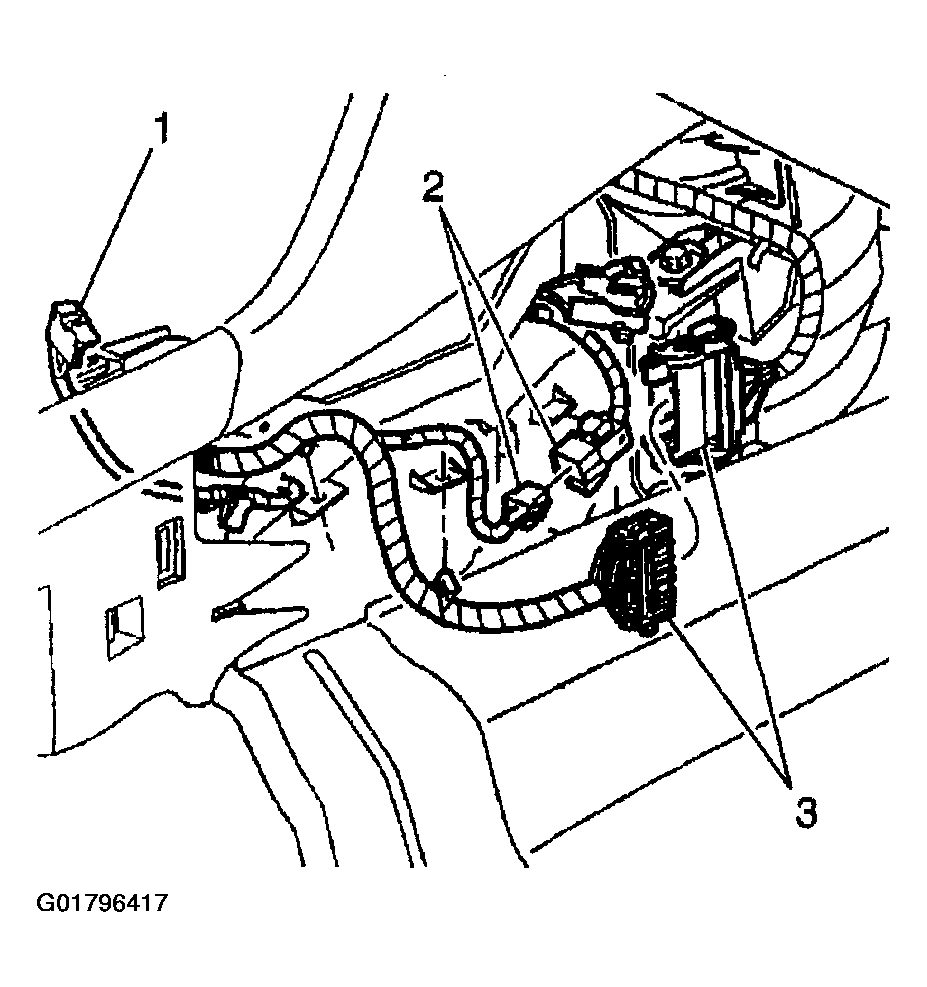

Fig 3: Installing Cover & Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Install the cover (1) to the floor of the storage bin.
Install the park lock cable to the shifter. Refer to PARK LOCK CABLE .
Connect the shift cable to the shifter. Refer to SHIFT CABLE (CONSOLE SHIFT) .
Install the left console panel. Refer to Console Trim Panel Replacement - Left
Install the right console panel. Refer to Console Trim Panel Replacement - Right
Install the console trim plate. Refer to Trim Plate Replacement - Console
Install the storage bins or the CD changer as needed. Refer to Console Storage Bin Replacement or REMOTE CD CHANGER REPLACEMENT .
Enable the SIR. Refer to ACTIVATING SYSTEM .

Fig 4: Installing Storage Bins & CD Changer
Courtesy of GENERAL MOTORS CORP.
