Suspension Controls Schematics (Power and Ground)

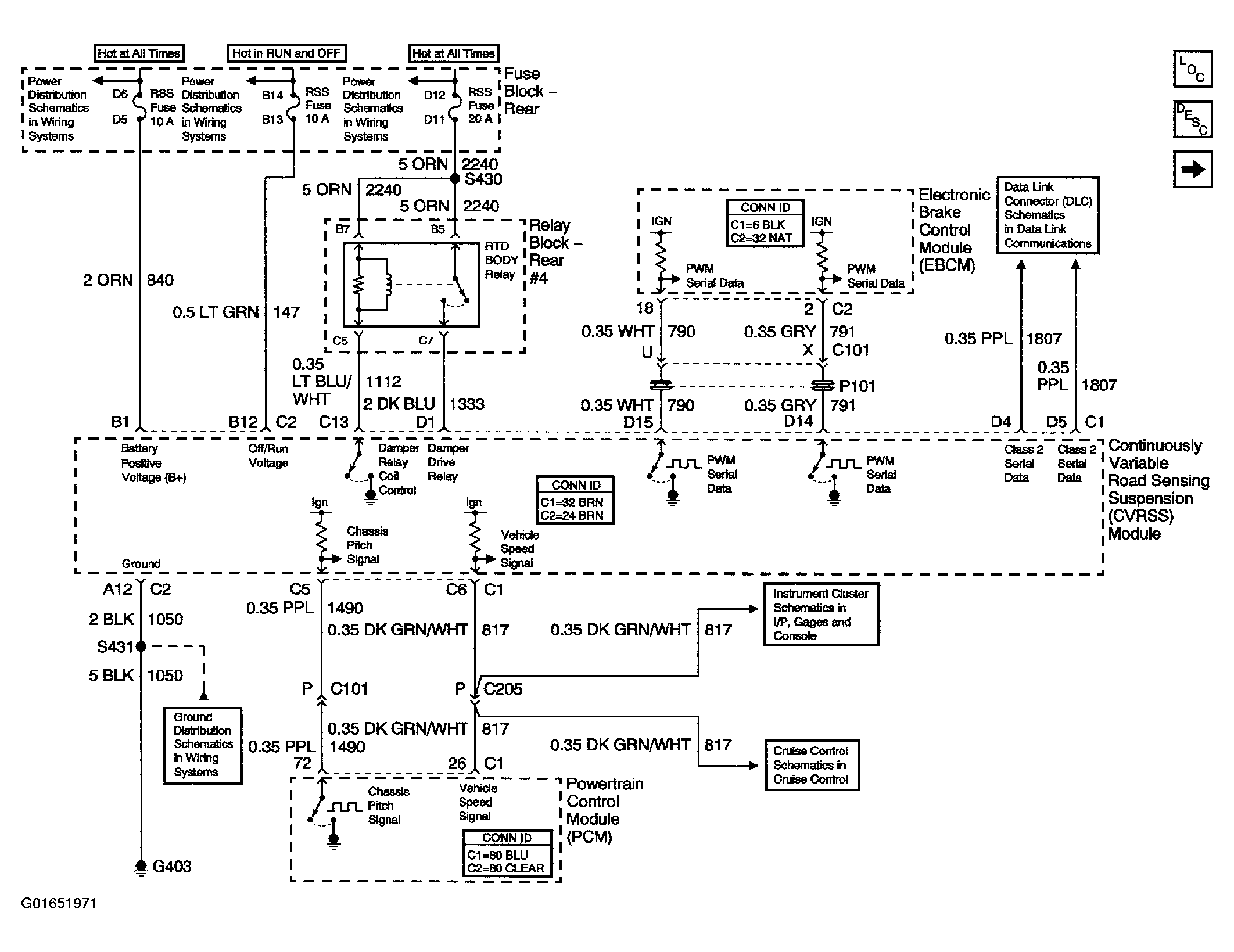

Fig 1: Suspension Controls Schematics (Power and Ground)

Courtesy of GENERAL MOTORS CORP.

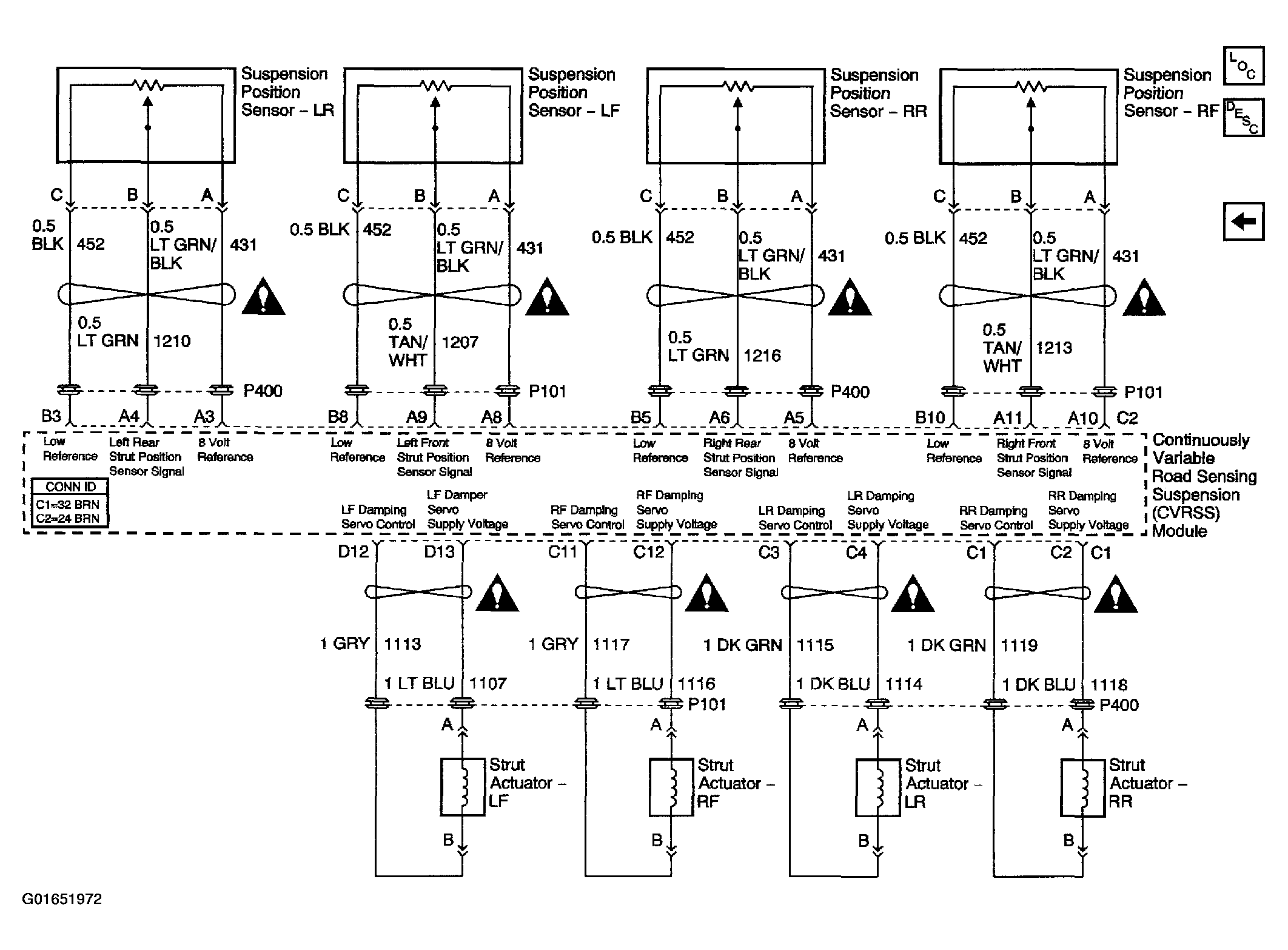

Fig 2: Suspension Controls Schematics (Sensors and Actuators)

Courtesy of GENERAL MOTORS CORP.
