Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the wheel from the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Disconnect the sensor harness connector from the vehicle harness connector.
  4. Disconnect three sensor harness clips from the vehicle.
  5. Disconnect the sensor link from the ball stud.
  6. Remove the two screws and the position sensor from the vehicle.

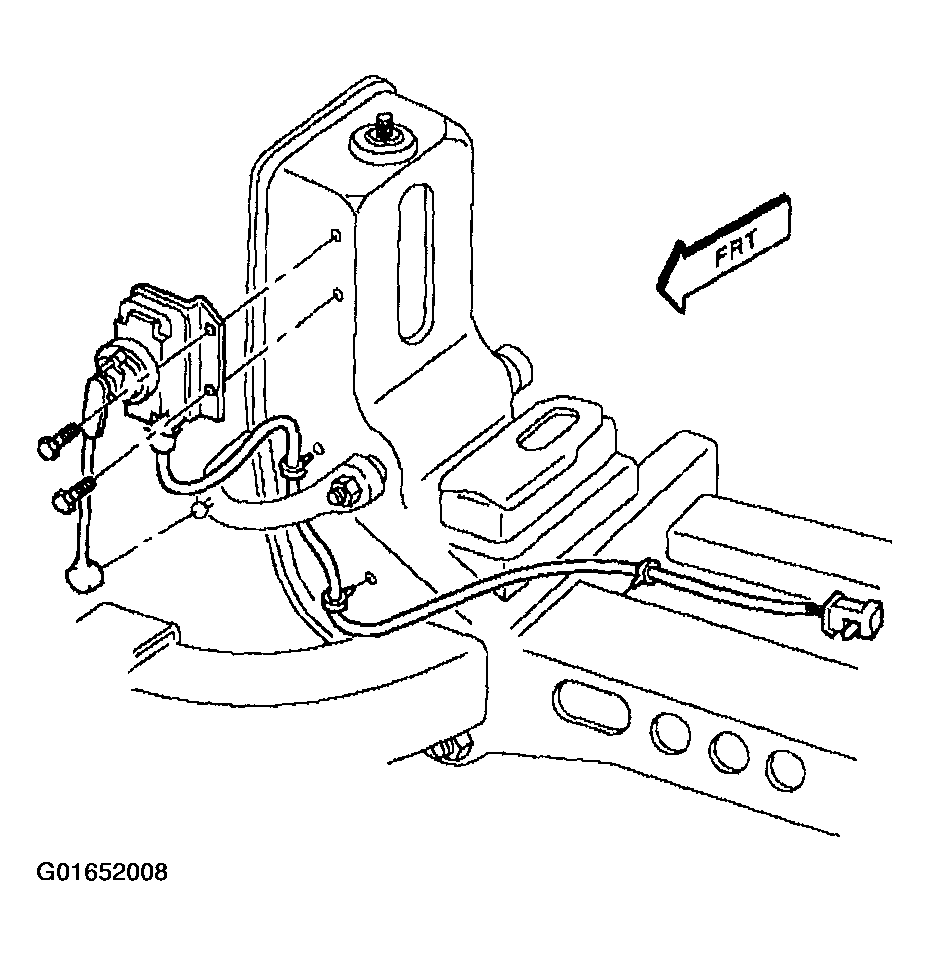

    Fig 1: Rear Position Sensor
    G01652008Courtesy of GENERAL MOTORS CORP.
