Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the position sensor on the vehicle with two screws.

    Tighten

    Tighten two screws to 9 N.m (80 lb in).

  2. Connect the sensor link to the ball stud.
  3. Connect the three sensor harness clips onto the vehicle.
  4. Connect the sensor harness connector to the vehicle harness connector.
  5. Install the wheel onto the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  6. Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  7. Inspect the Trim Height. Refer to TRIM HEIGHT INSPECTION PROCEDURE .

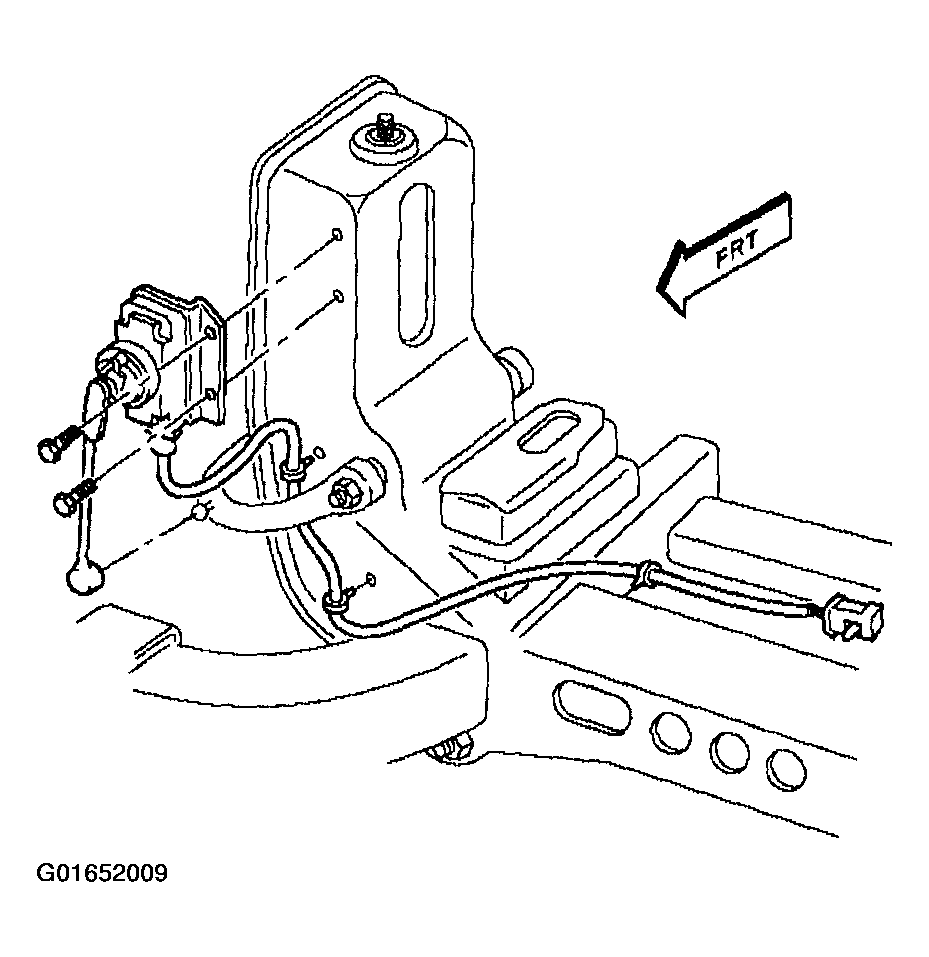

    Fig 1: Rear Position Sensor
    G01652009Courtesy of GENERAL MOTORS CORP.
