Removal Procedure

  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the wheel from the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Disconnect the sensor harness connector from the vehicle harness connector.
  4. Disconnect the sensor harness clips from the vehicle at two places.

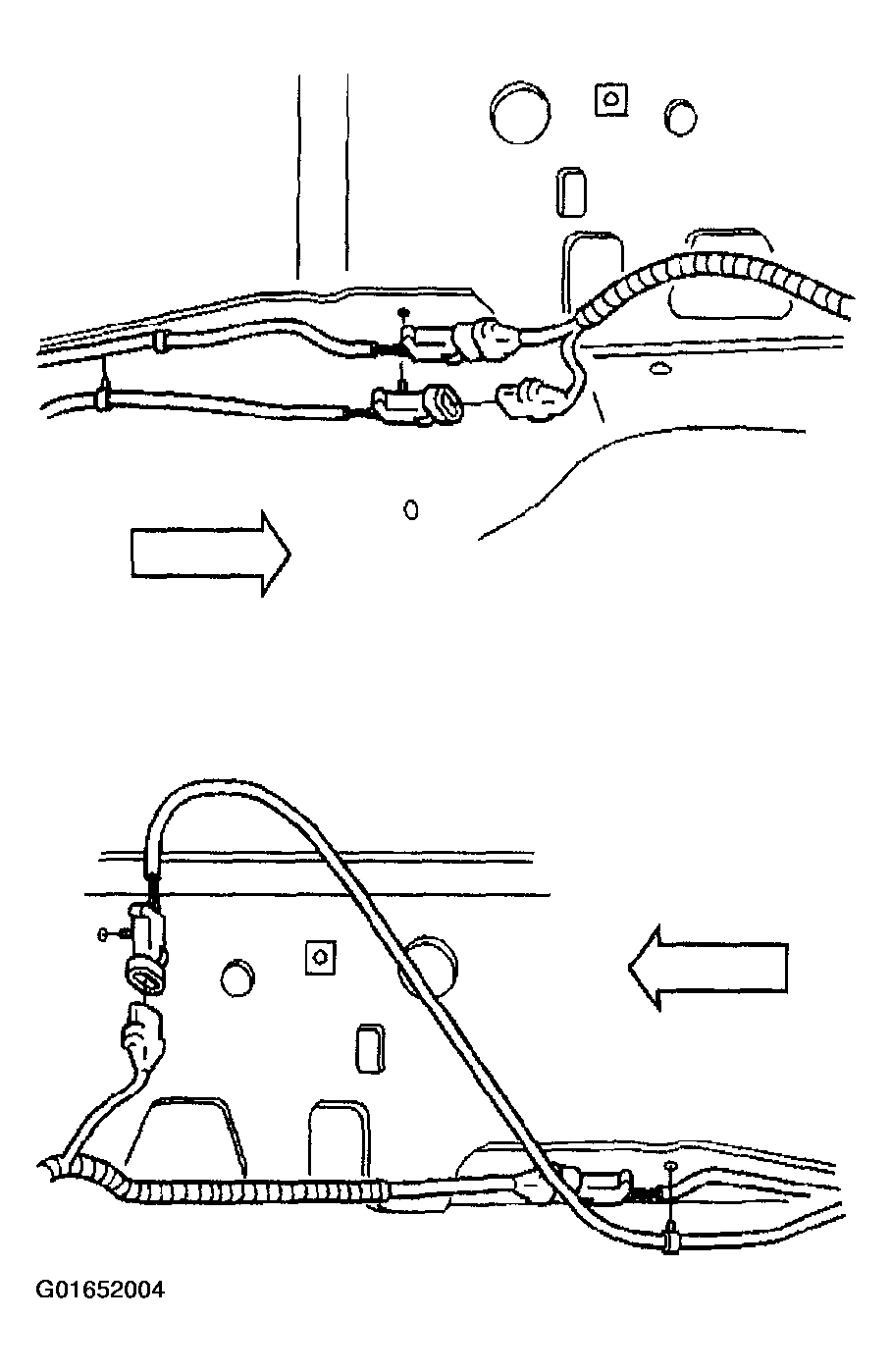

    Fig 1: Disconnecting Sensor Harness Clips From Vehicle At Two Places
    G01652004Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the sensor link from the ball stud.
  6. Remove the two screws and position sensor from the vehicle.

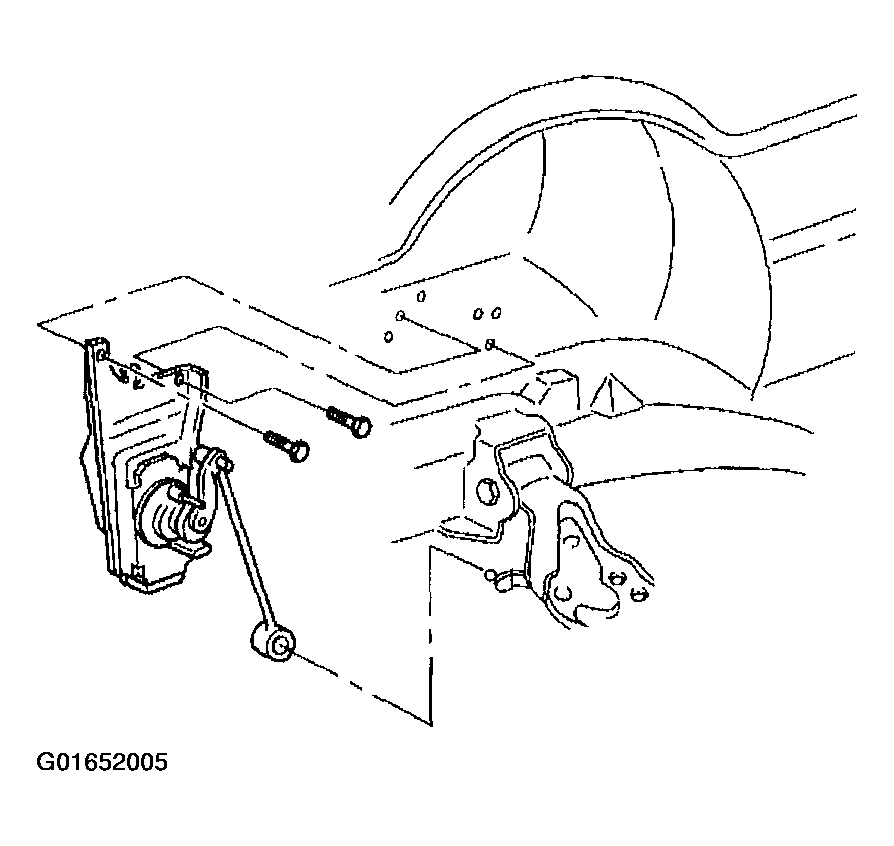

    Fig 2: Front Position Sensor
    G01652005Courtesy of GENERAL MOTORS CORP.
