Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the position sensor on the vehicle with two screws.

    Tighten

    Tighten two screws to 10 N.m (89 lb in).

  2. Connect the sensor link to the ball stud.

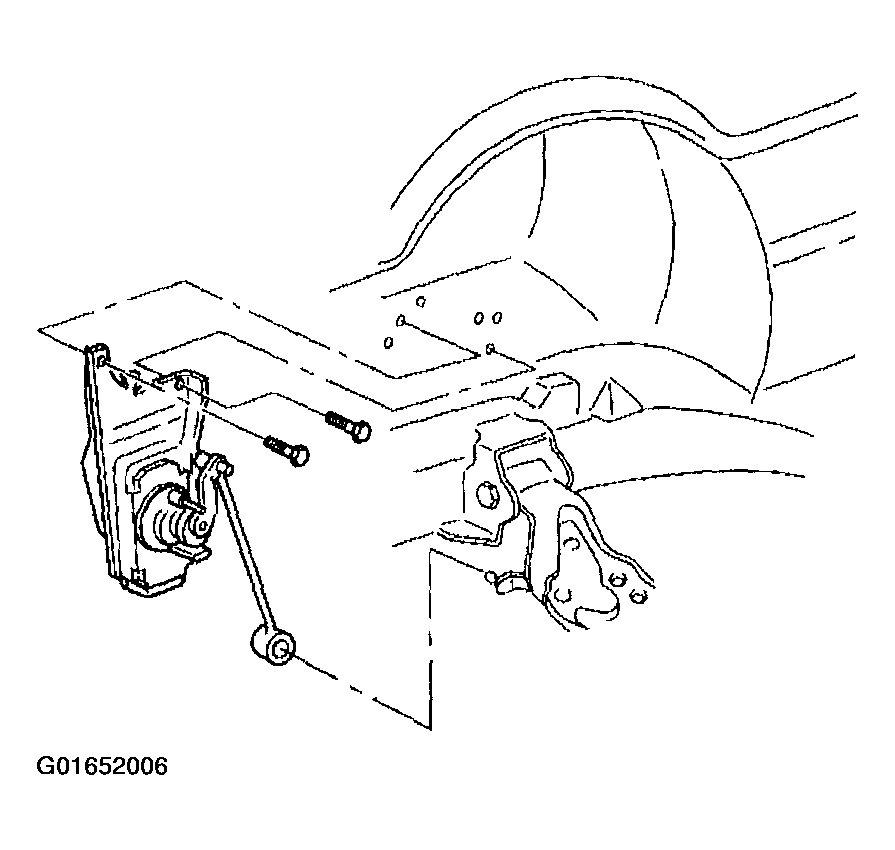

    Fig 1: Front Position Sensor
    G01652006Courtesy of GENERAL MOTORS CORP.
  3. Connect the sensor harness connector to the vehicle harness connector.
  4. Connect the sensor harness clips to the vehicle at two places.
  5. Install the wheel onto the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  6. Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.

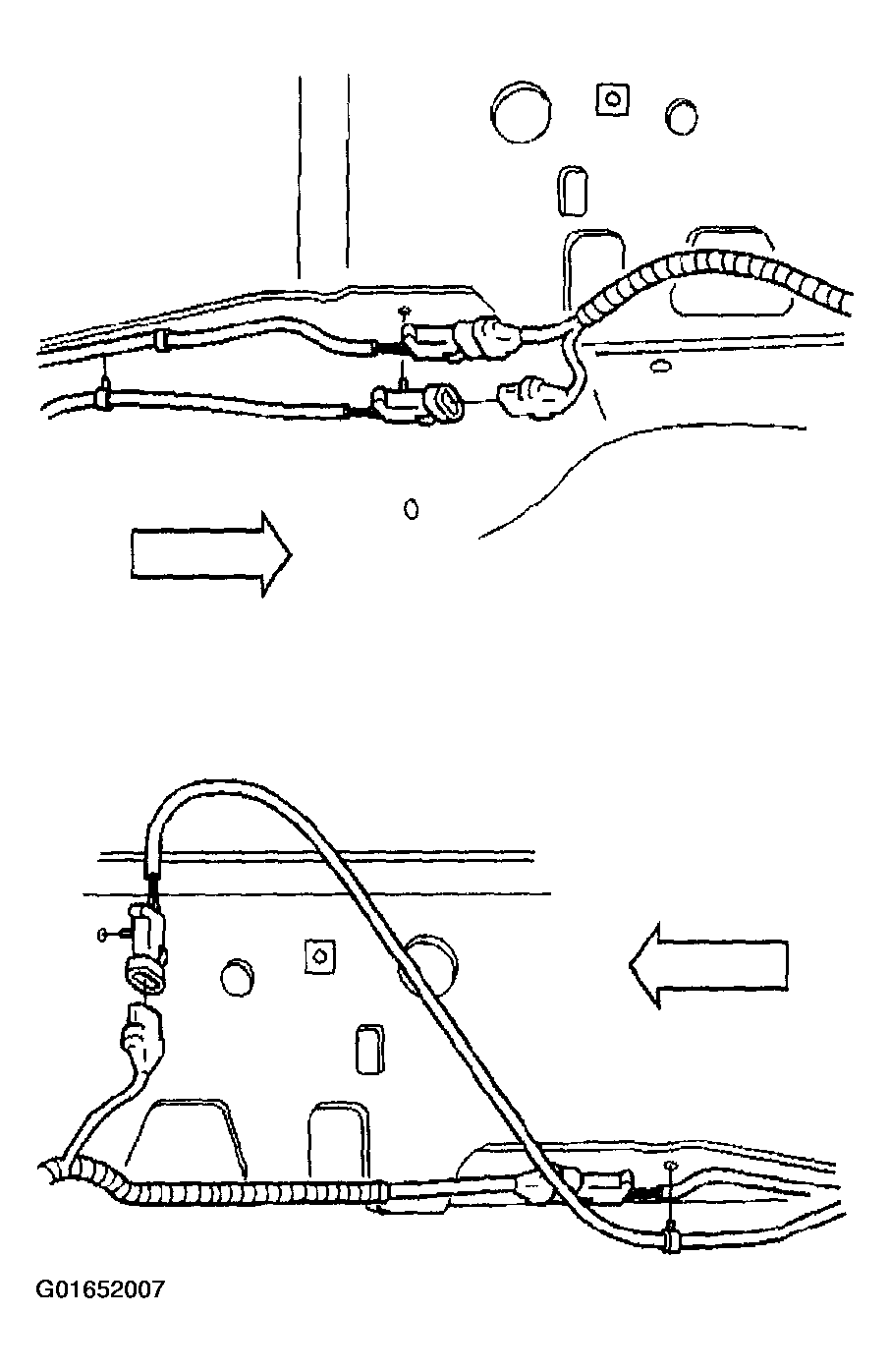

    Fig 2: Connecting Sensor Harness Clips To Vehicle At Two Places
    G01652007Courtesy of GENERAL MOTORS CORP.
