Removal Procedure

  1. Remove the rear compartment trim panel. Refer to COMPARTMENT FRONT TRIM PANEL REPLACEMENT - REAR in Body Rear End.
  2. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  3. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR in Seats.
  4. Disconnect the electronic suspension control module connectors.
  5. Remove the nuts from the electronics bay board.
  6. Tilt the electronics bay board to access the electronic suspension control module.
  7. Remove the electronic suspension control module from the electronics bay board.

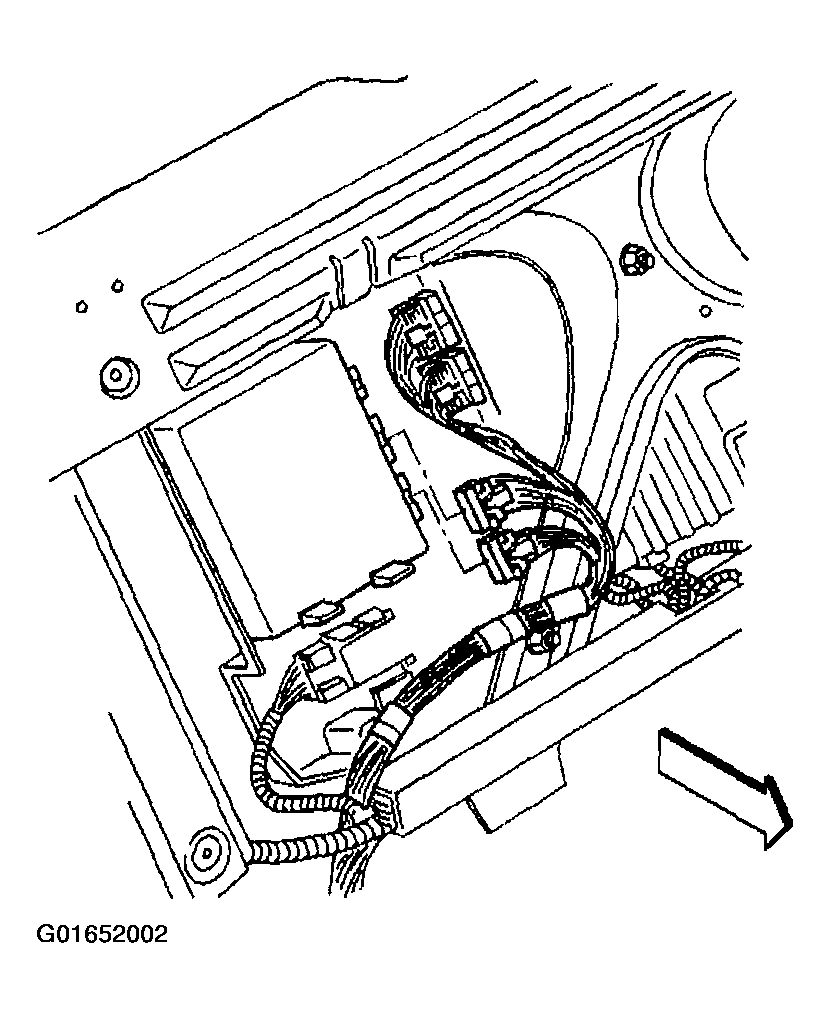

    Fig 1: Electronic Suspension Control Module
    G01652002Courtesy of GENERAL MOTORS CORP.
