Installation Procedure

  1. Install the electronic suspension control module in the right electronics bay.
  2. Install the electronics bay board.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the nuts on the electronics bay board.

    Tighten

    Tighten two screws to 9 N.m (80 lb in).

  4. Connect the electrical connectors to the electronic suspension control module.
  5. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR in Seats.
  6. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  7. Install the rear compartment trim panel. Refer to COMPARTMENT FRONT TRIM PANEL REPLACEMENT - REAR in Body Rear End.
  8. Perform the electronic suspension control module calibration. Refer to Electronic Suspension Control Module Calibration .
  9. Inspect the Trim Height. Refer to TRIM HEIGHT INSPECTION PROCEDURE .

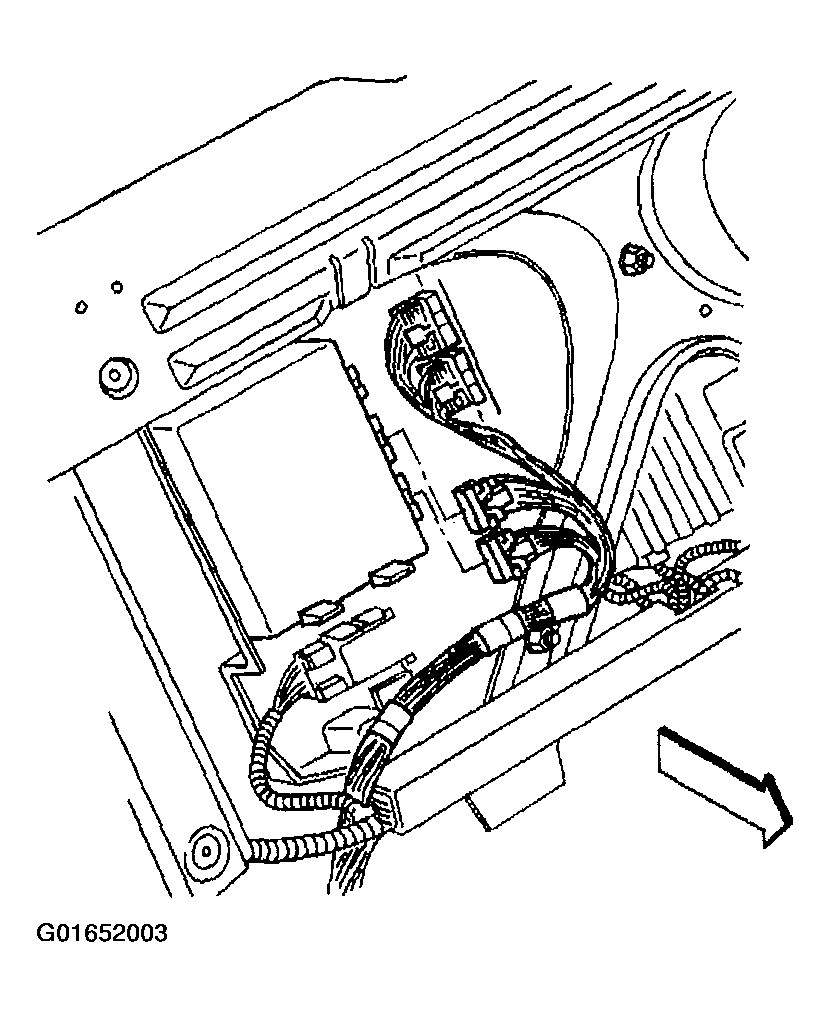

    Fig 1: Electronic Suspension Control Module
    G01652003Courtesy of GENERAL MOTORS CORP.
