Diagnostic Trouble Code (DTC) List

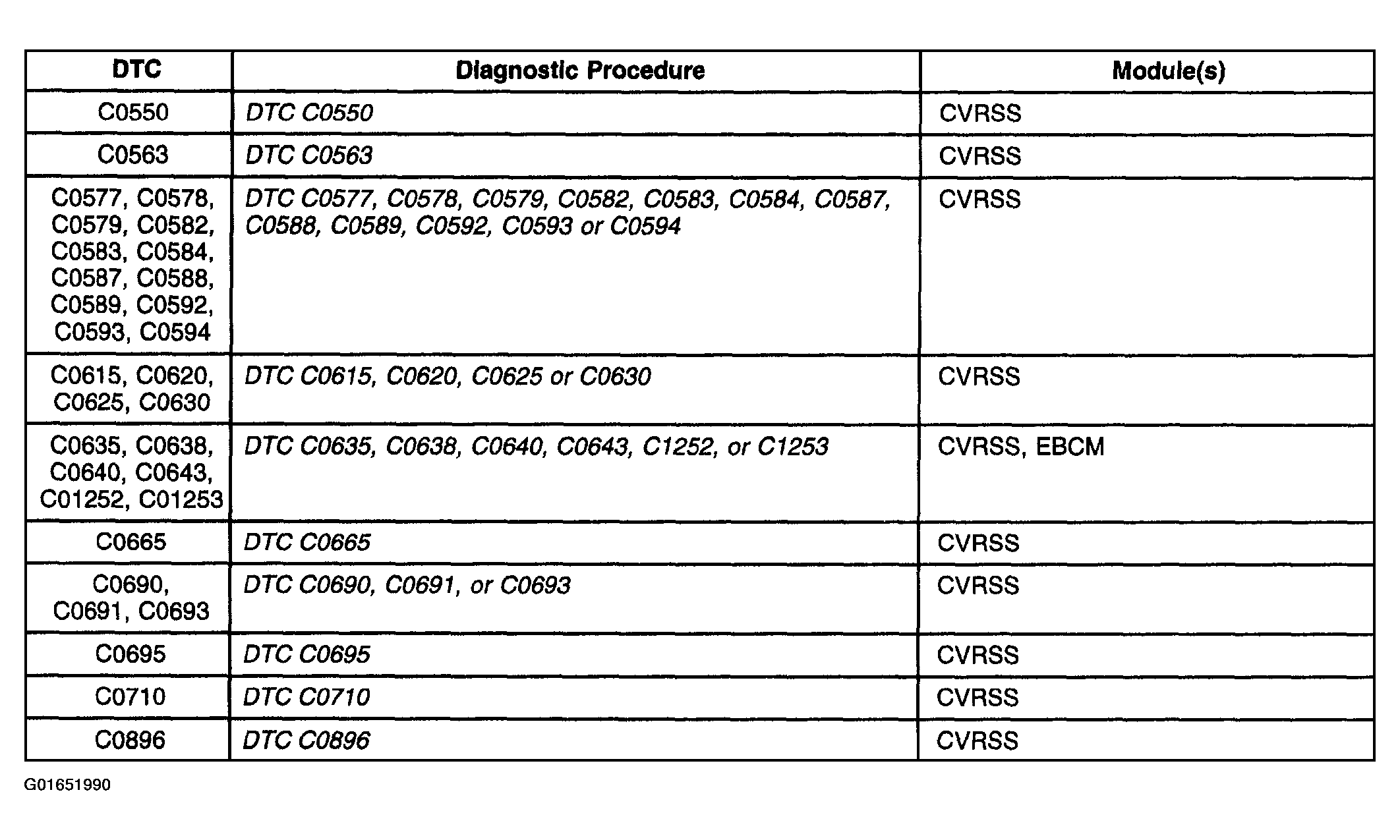

DIAGNOSTIC TROUBLE CODE (DTC) IDENTIFICATION
| DTC | Definition |
|---|---|
| C0550 | ECU Malfunction - Internal Write/Checksum Malfunction |
| C0563 | Calibration ROM Checksum Error |
| C0577 | LF Solenoid Circuit Low |
| C0578 | LF Solenoid Circuit High |
| C0579 | LF Solenoid Circuit Open |
| C0582 | RF Solenoid Circuit Low |
| C0583 | RF Solenoid Circuit High |
| C0584 | RF Solenoid Circuit Open |
| C0587 | LR Solenoid Circuit Low |
| C0588 | LR Solenoid Circuit High |
| C0589 | LR Solenoid Circuit Open |
| C0592 | RR Solenoid/Motor/Actuator Circuit |
| C0593 | RR Solenoid Circuit High |
| C0594 | RR Solenoid Circuit Open |
| C0615 | LF Position Sensor Malfunction |
| C0620 | RF Position Sensor Malfunction |
| C0625 | LR Position Sensor Malfunction |
| C0630 | RR Position Sensor Malfunction |
| C0635 | LF Normal Force Circuit Malfunction |
| C0638 | LF Normal Force Circuit High |
| C0640 | RF Normal Force Circuit Malfunction |
| C0643 | RF Normal Force Circuit High |
| C0665 | Chassis Pitch Signal Circuit |
| C0690 | Damper Control Relay Circuit Malfunction |
| C0691 | Damper Control Relay Circuit Range |
| C0693 | Damper Control Relay Circuit High |
| C0695 | Position Sensor Overcurrent (8 Volt Supply) |
| C0710 | Steering Position Signal Malfunction |
| C0896 | Electronic Suspension Control (ESC) Voltage Is Outside The Normal Range Of 9-15.5 Volts |
| C1252 | LF Normal Force Malfunction |
| C1253 | RF Normal Force Malfunction |
