Home >> Cadillac >> 2002 >> Eldorado ECS >> Repair and Diagnosis >> Suspension >> Electronic Suspension >> Electronic Suspension System - Road Sensing Suspension >> Diagnostic Information and Procedures >> DTC C0710: Steering Position Signal Malfunction >> Test Description

Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step tests for normal function of the EBCM.
  2. 3. This step tests for normal function of the EBCM
  3. 4. This step tests for an intermittent or poor connection at the EBCM.
  4. 5. This step tests for a short to ground in the Steering Wheel Position Signal circuit.

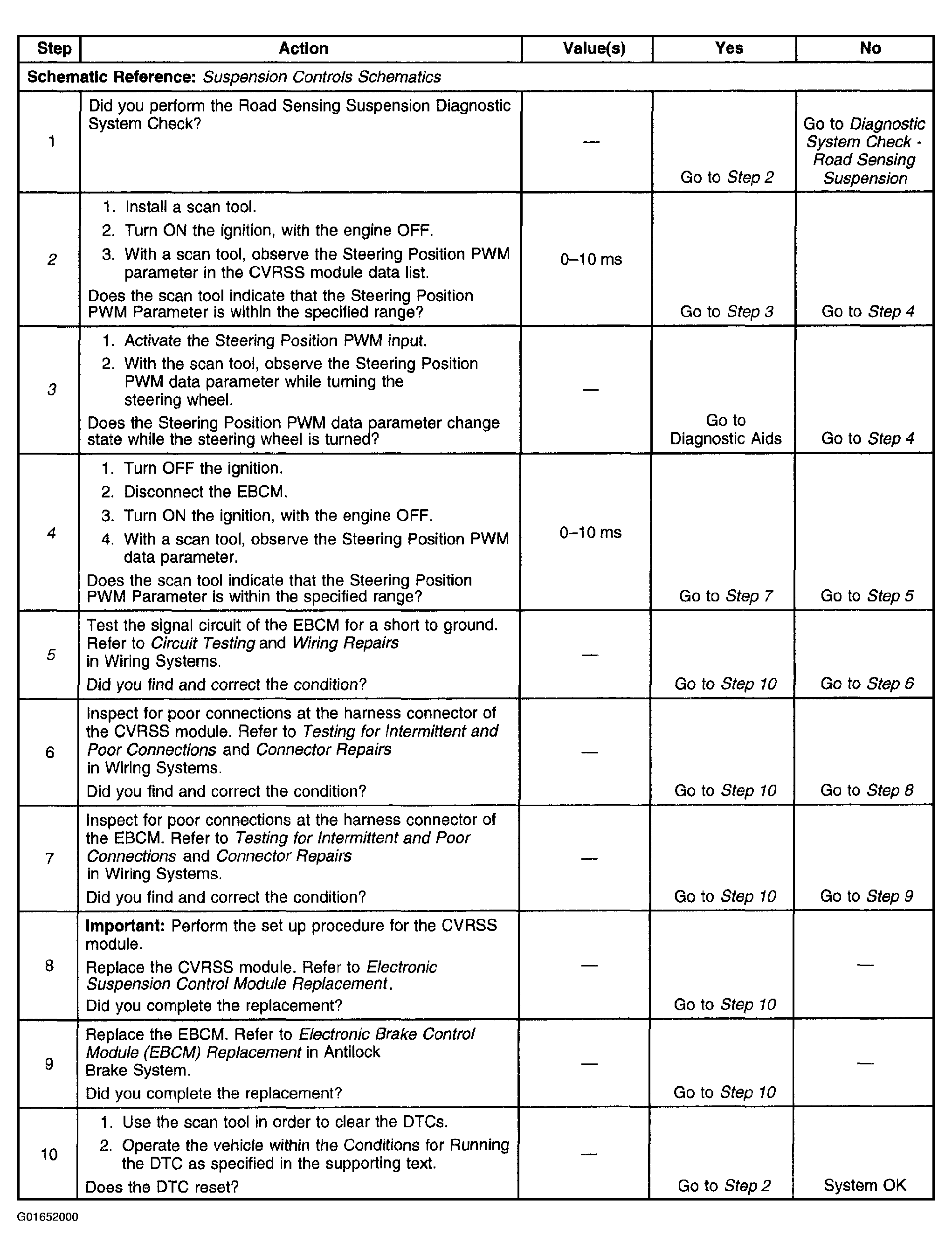

    Fig 1: DTC C0710
    G01652000Courtesy of GENERAL MOTORS CORP.
