Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step tests for voltage in the damping relay coil control circuit.
  2. 3. This step tests for a short to voltage in the damping relay coil control circuit.
  3. 4. This step tests for a short to voltage in the damper drive relay circuit.
  4. 5. This step tests for an open in the damper drive relay circuit.

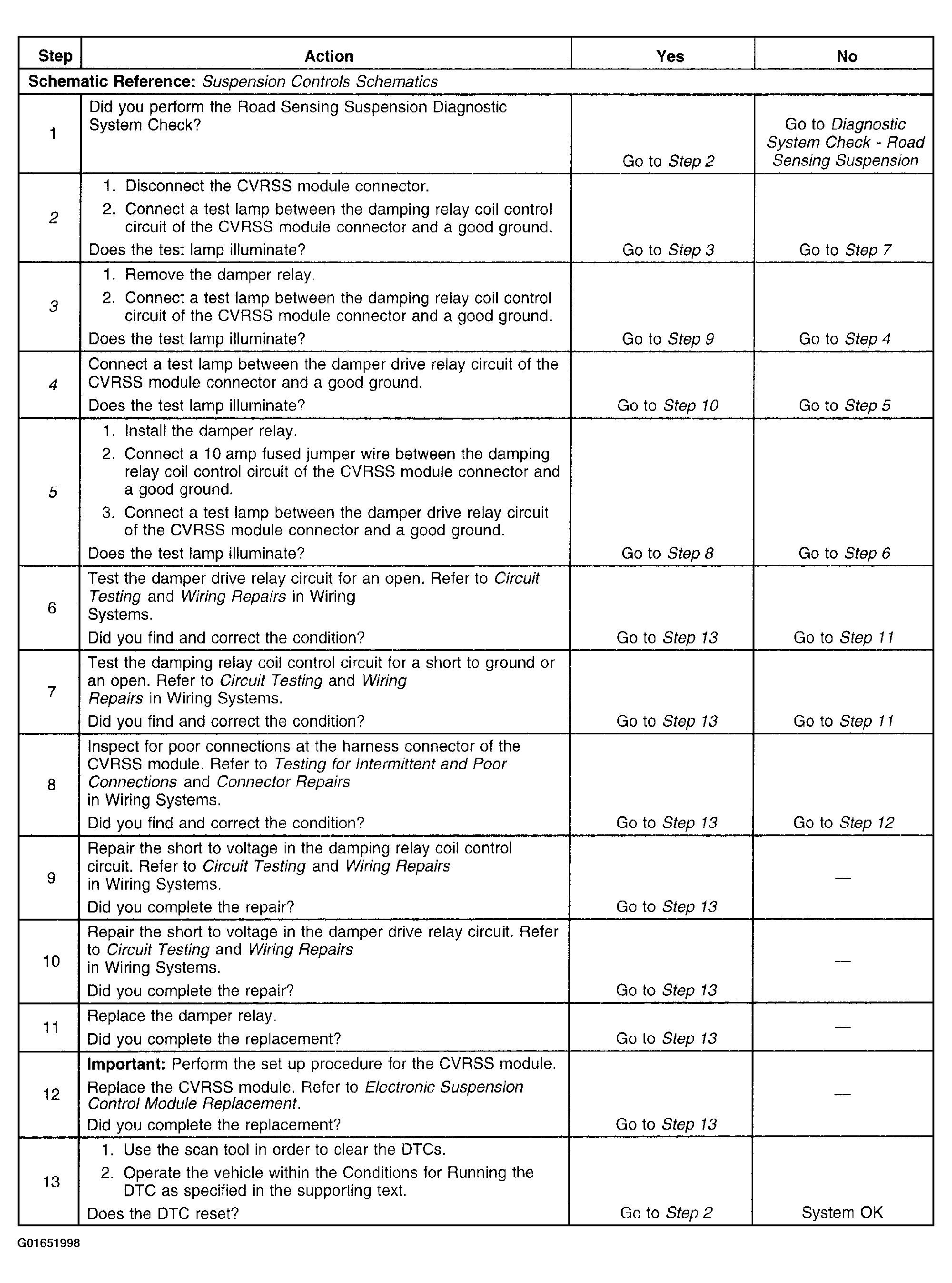

    Fig 1: DTC C0690, C0691, Or C0693
    G01651998Courtesy of GENERAL MOTORS CORP.
