Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step tests for proper voltage in the chassis pitch signal circuit.
  2. 3. This step tests for proper communication between the PCM and the CVRSS module.

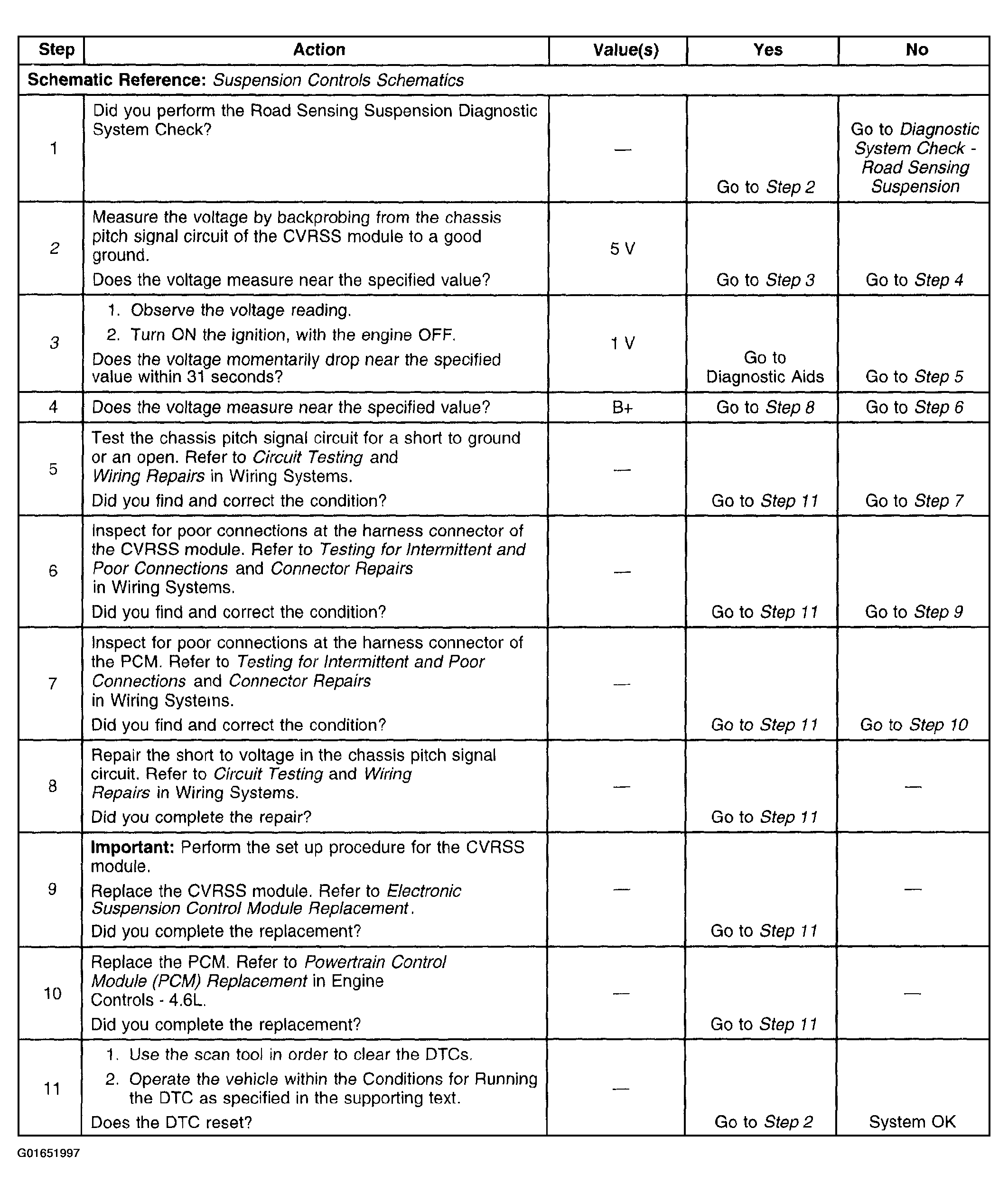

    Fig 1: DTC C0665
    G01651997Courtesy of GENERAL MOTORS CORP.
