Home >> Cadillac >> 2002 >> Eldorado ECS >> Repair and Diagnosis >> Suspension >> Electronic Suspension >> Electronic Suspension System - Road Sensing Suspension >> Diagnostic Information and Procedures >> DTC C0563: Calibration ROM Checksum Error >> Test Description

Test Description

The number below refers to the step number on the diagnostic table.

  1. 2. This step checks to see if the problem has cleared after the CVRSS module has been calibrated.

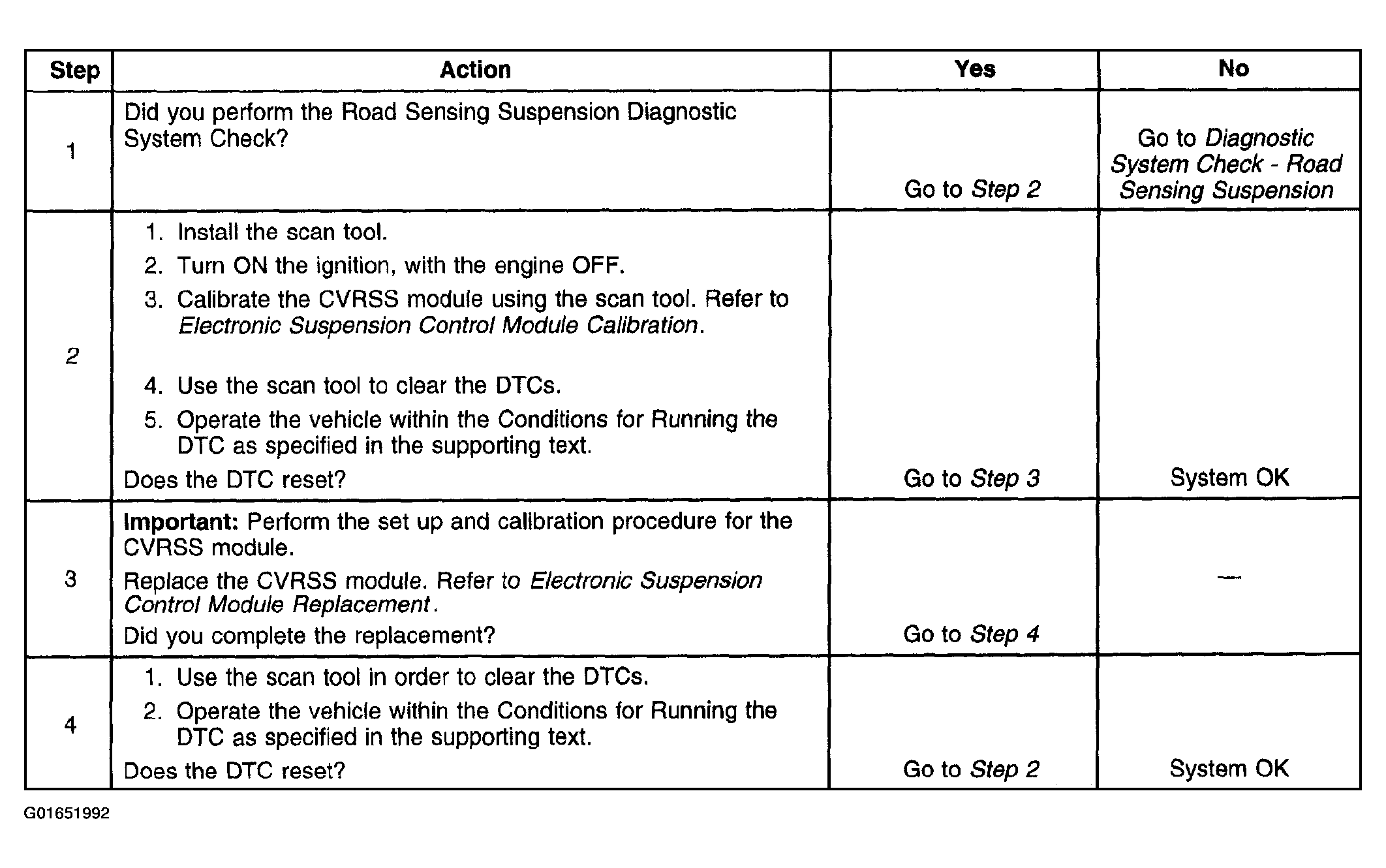

    Fig 1: DTC C0563
    G01651992Courtesy of GENERAL MOTORS CORP.
