Suspension Controls Connector End Views

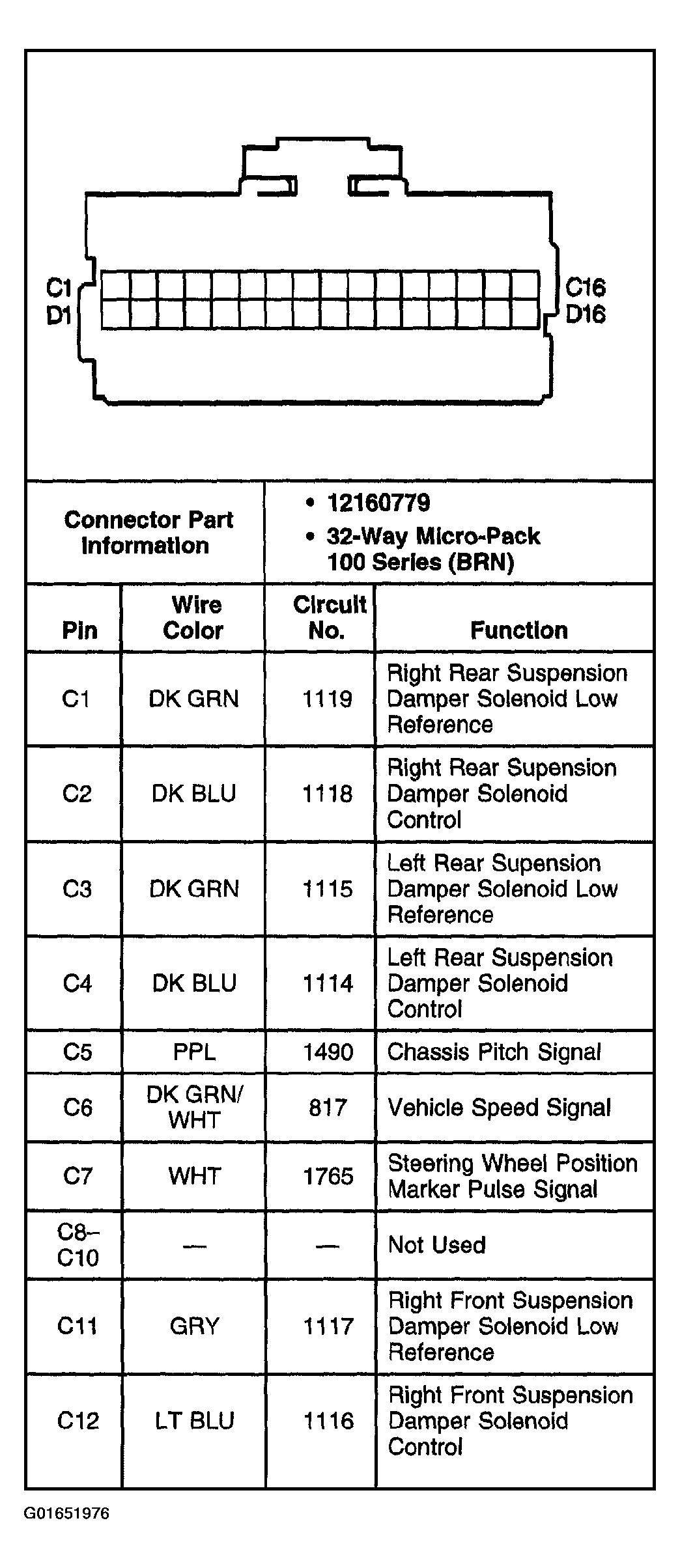

Fig 1: Continuously Variable Road Sensing Suspension (CVRSS) Module Connector C1 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

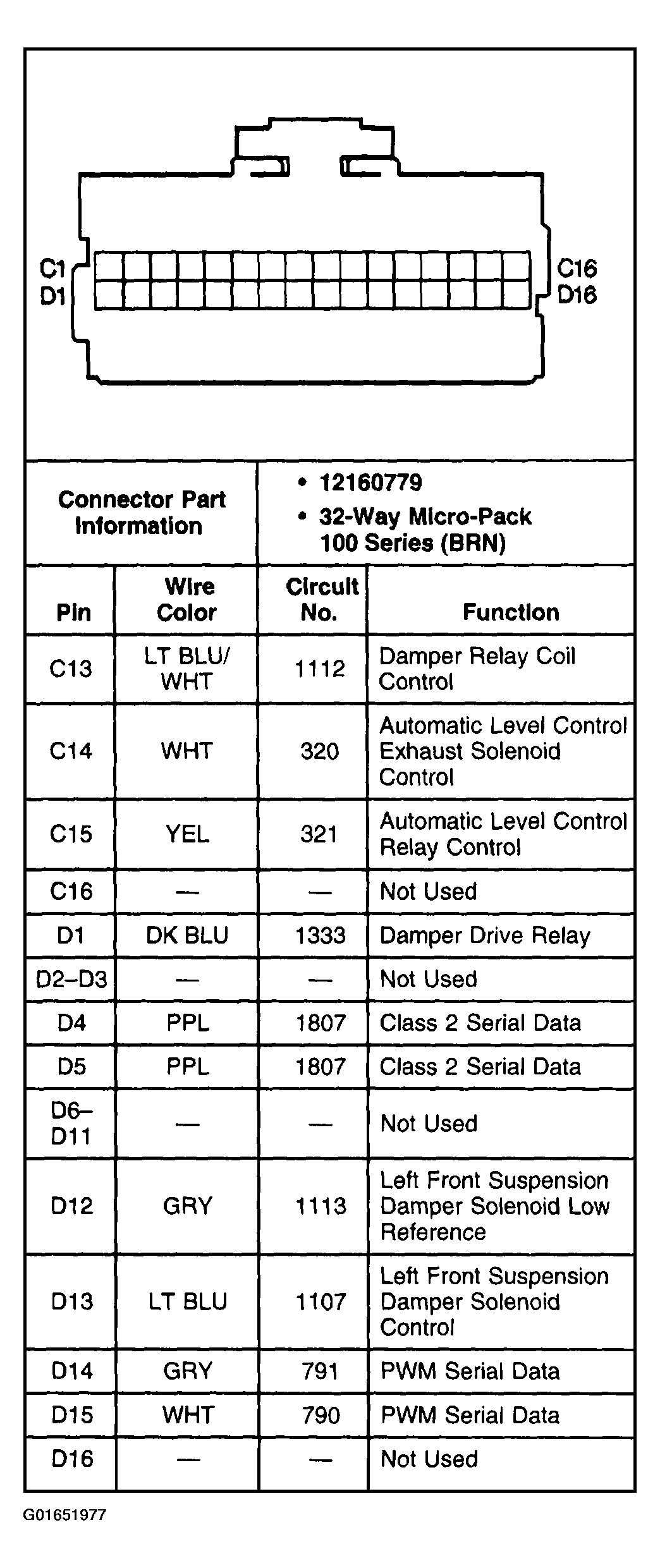

Fig 2: Continuously Variable Road Sensing Suspension (CVRSS) Module Connector C1 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

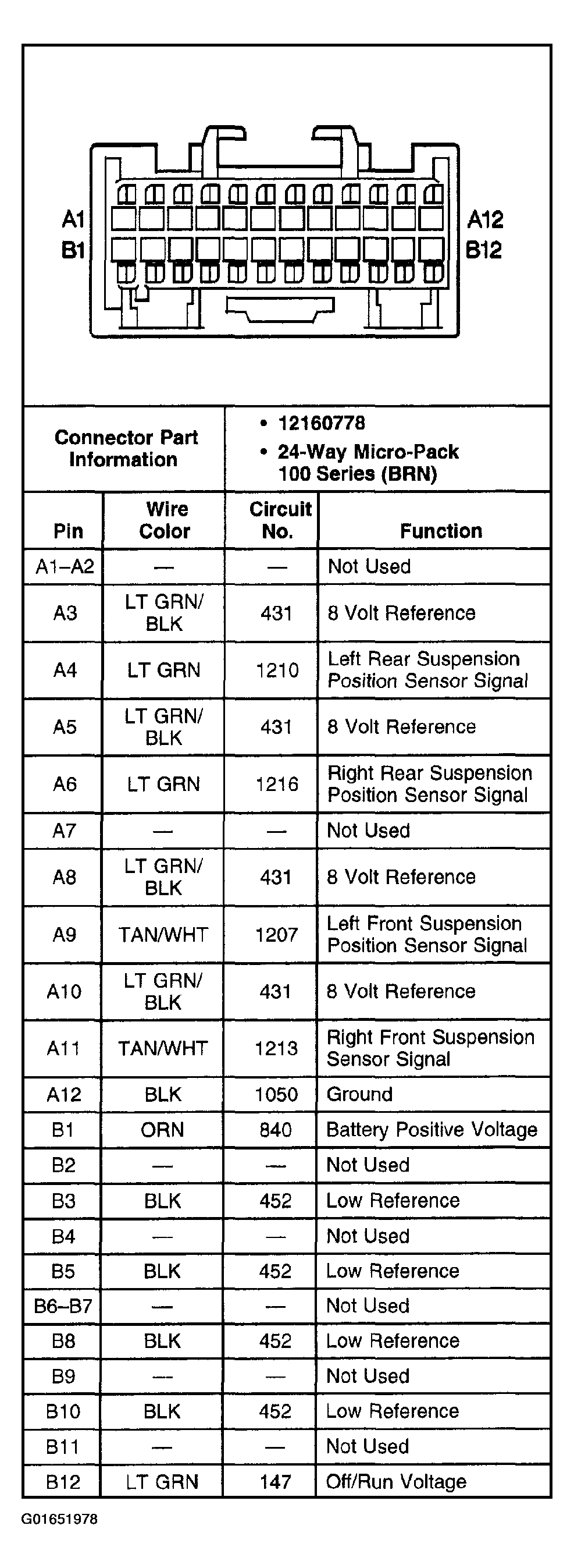

Fig 3: Continuously Variable Road Sensing Suspension (CVRSS) Module Connector C2

Courtesy of GENERAL MOTORS CORP.

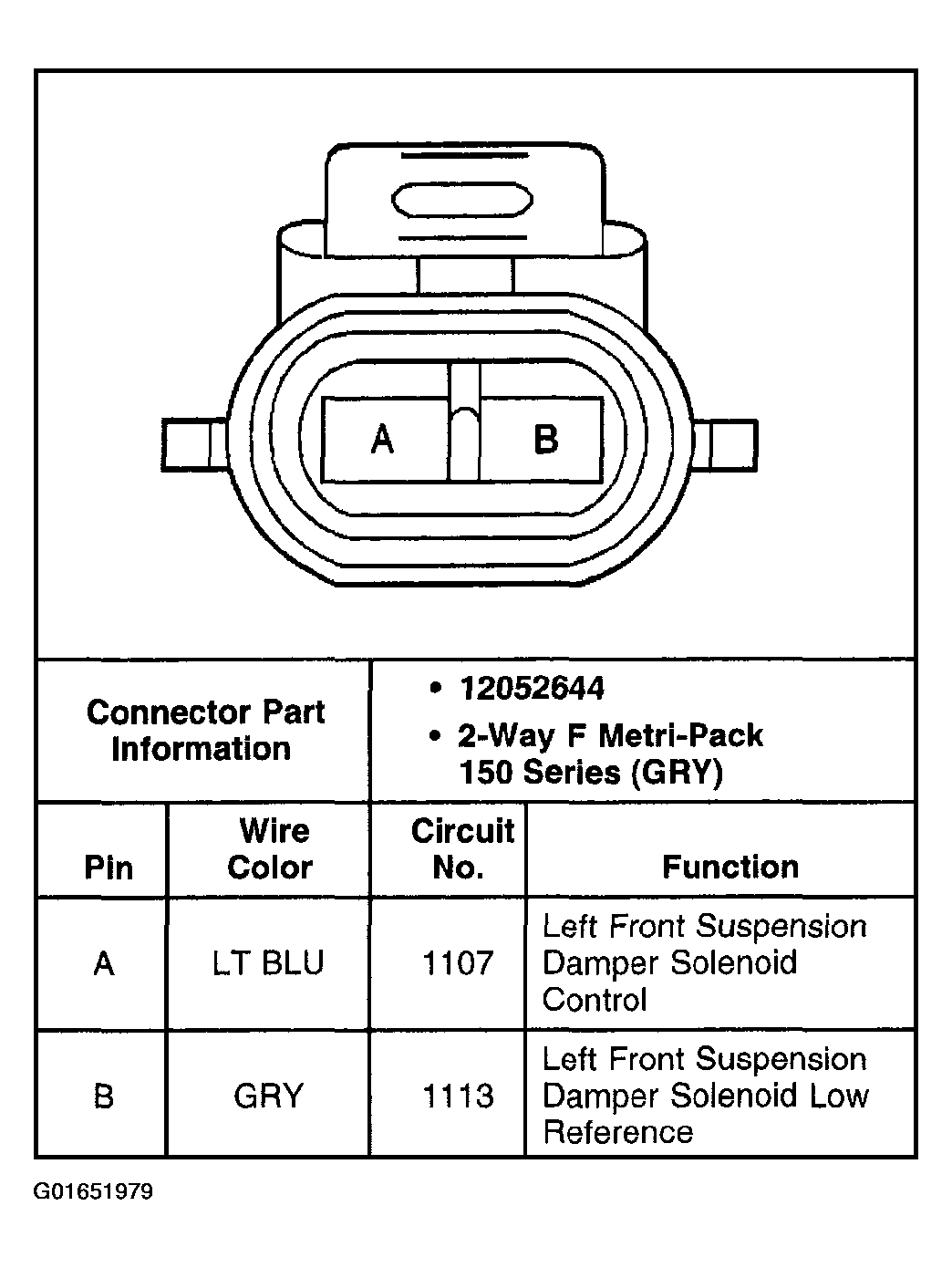

Fig 4: Strut Actuator - LF

Courtesy of GENERAL MOTORS CORP.

Fig 5: Strut Actuator - LR

Courtesy of GENERAL MOTORS CORP.

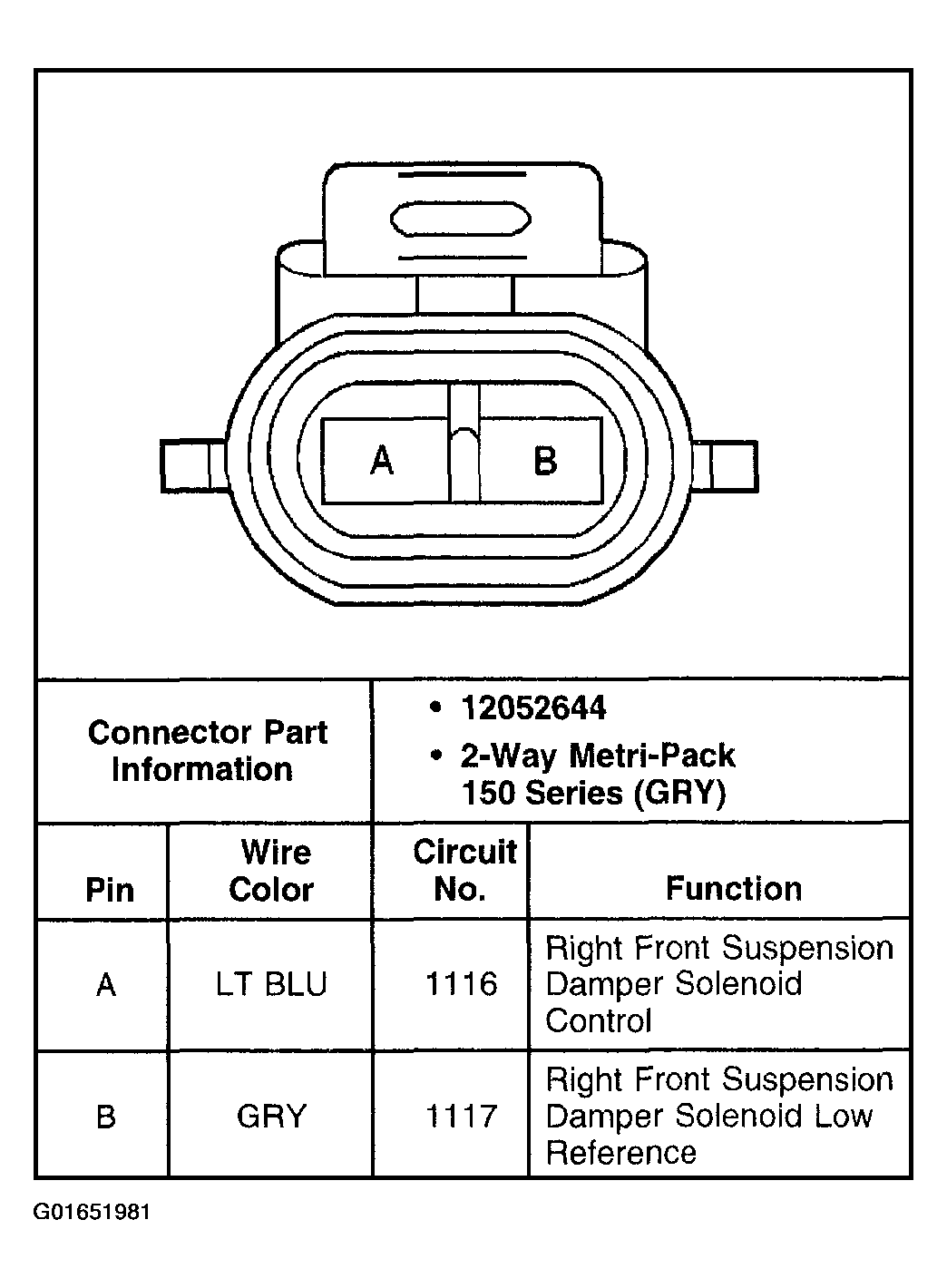

Fig 6: Strut Actuator - RF

Courtesy of GENERAL MOTORS CORP.

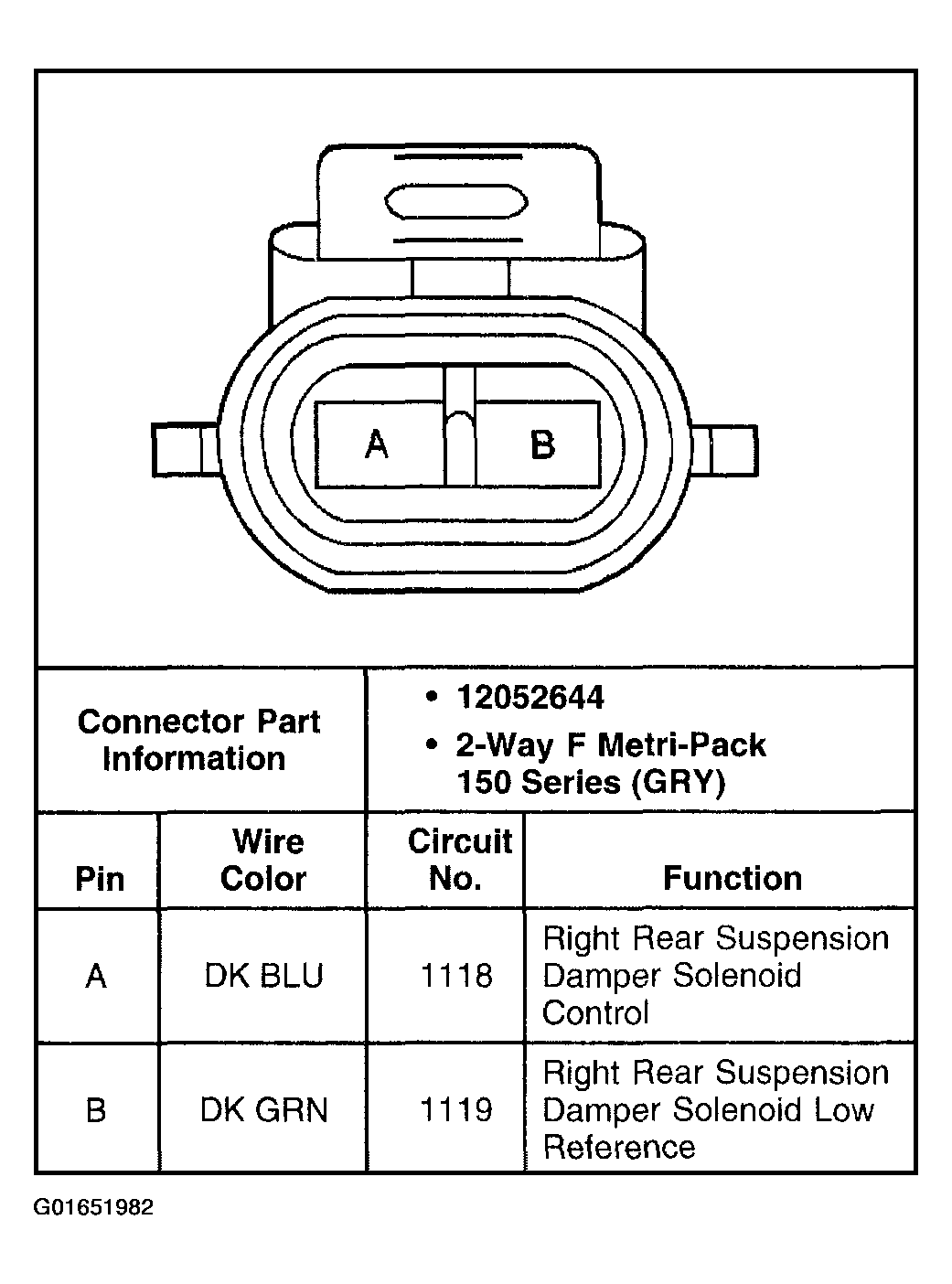

Fig 7: Strut Actuator - RR

Courtesy of GENERAL MOTORS CORP.

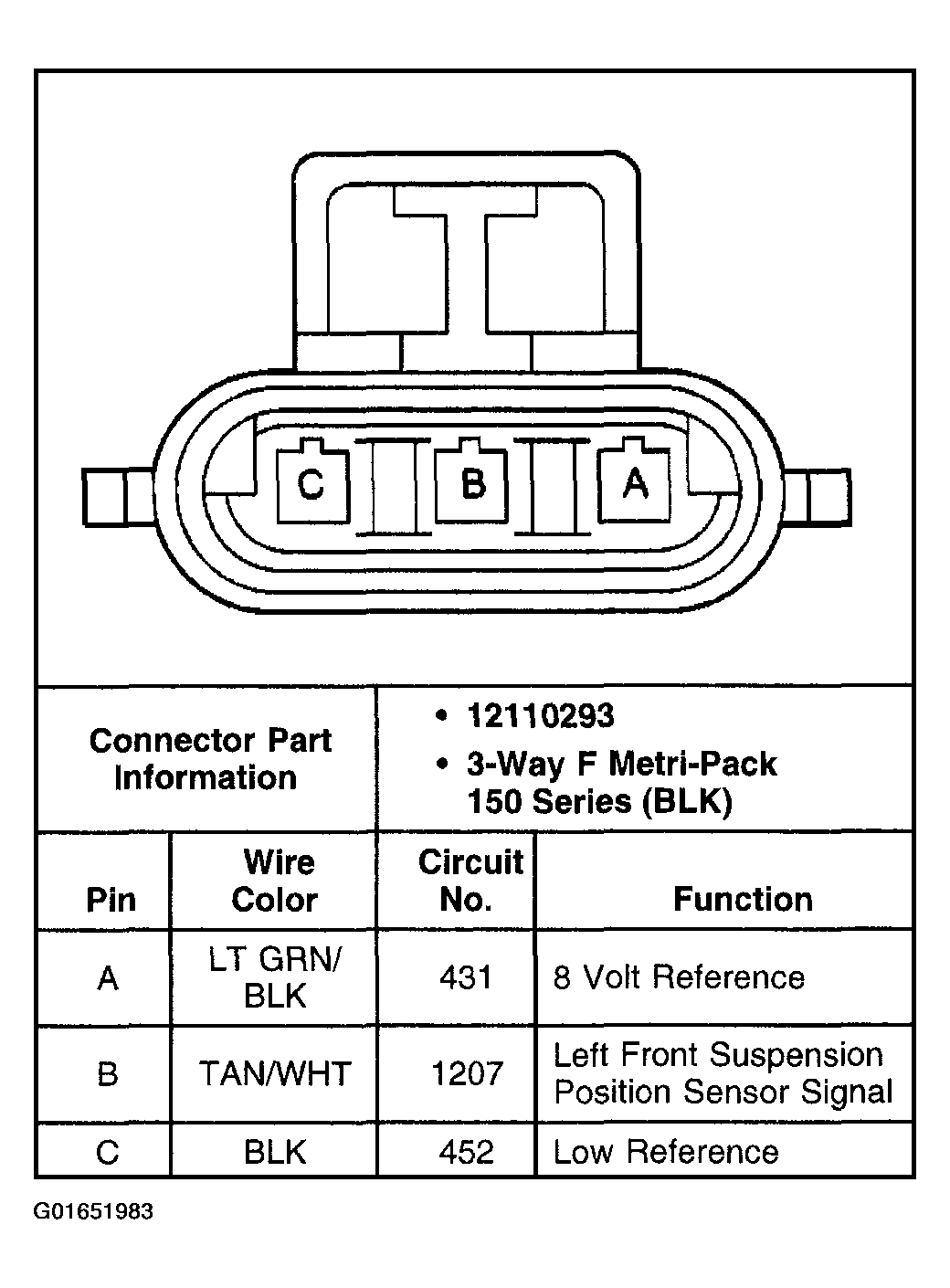

Fig 8: Suspension Position Sensors - LF

Courtesy of GENERAL MOTORS CORP.

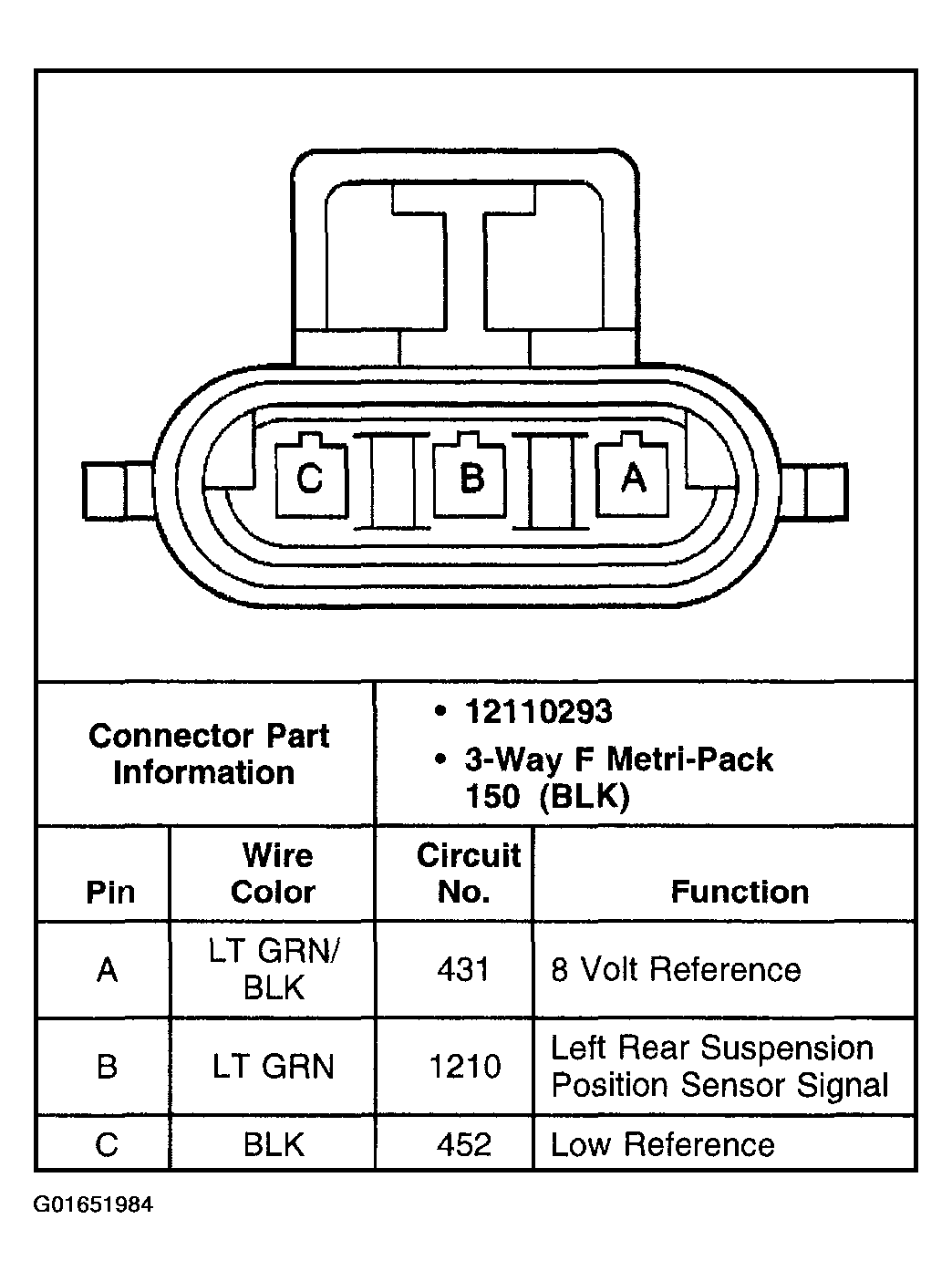

Fig 9: Suspension Position Sensors - LR

Courtesy of GENERAL MOTORS CORP.

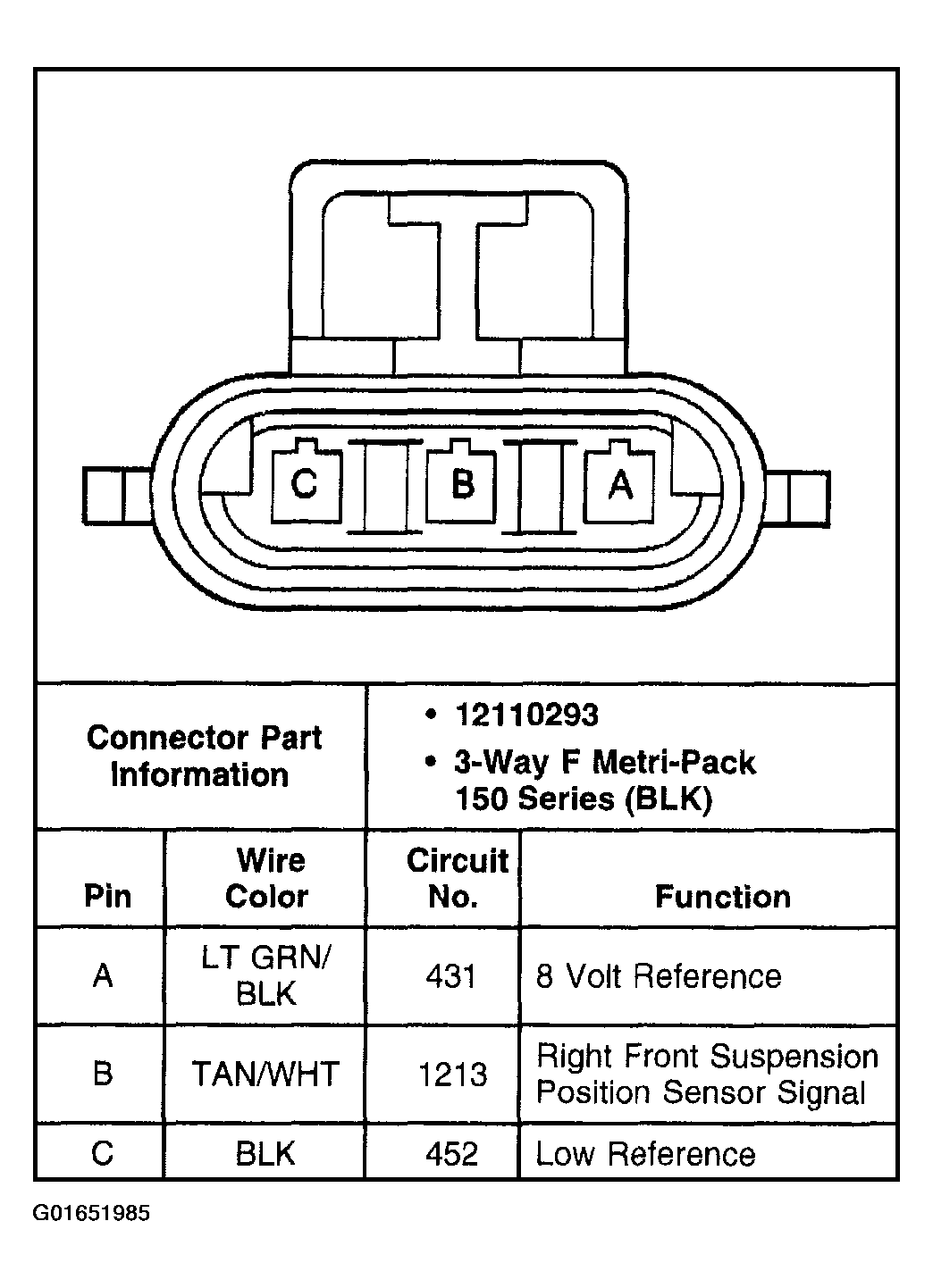

Fig 10: Suspension Position Sensors - RF

Courtesy of GENERAL MOTORS CORP.

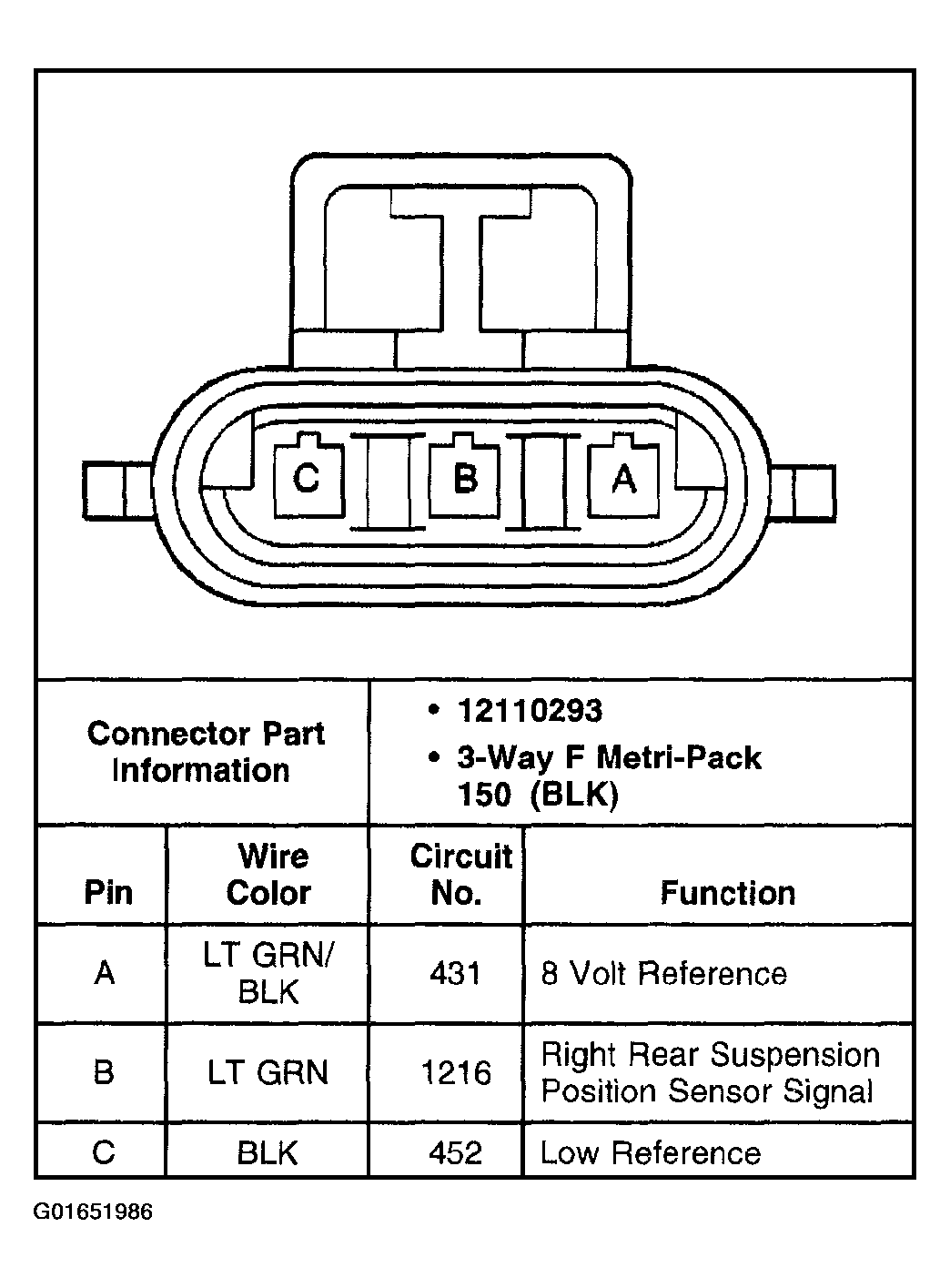

Fig 11: Suspension Position Sensors - RR

Courtesy of GENERAL MOTORS CORP.
