Suspension Controls Component Views

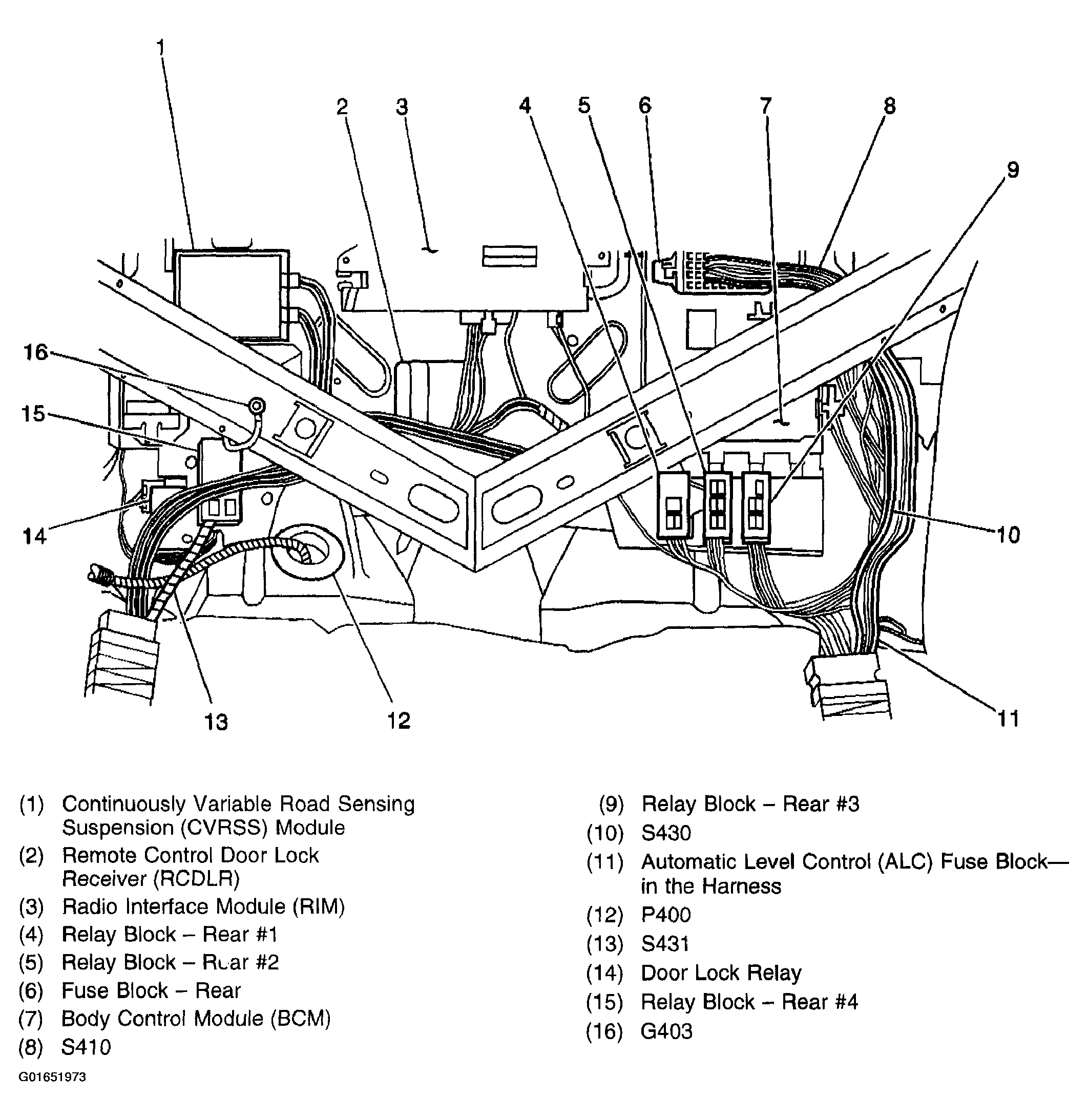

Fig 1: Passenger Compartment, Behind the Rear Seat
G01651973Courtesy of GENERAL MOTORS CORP.

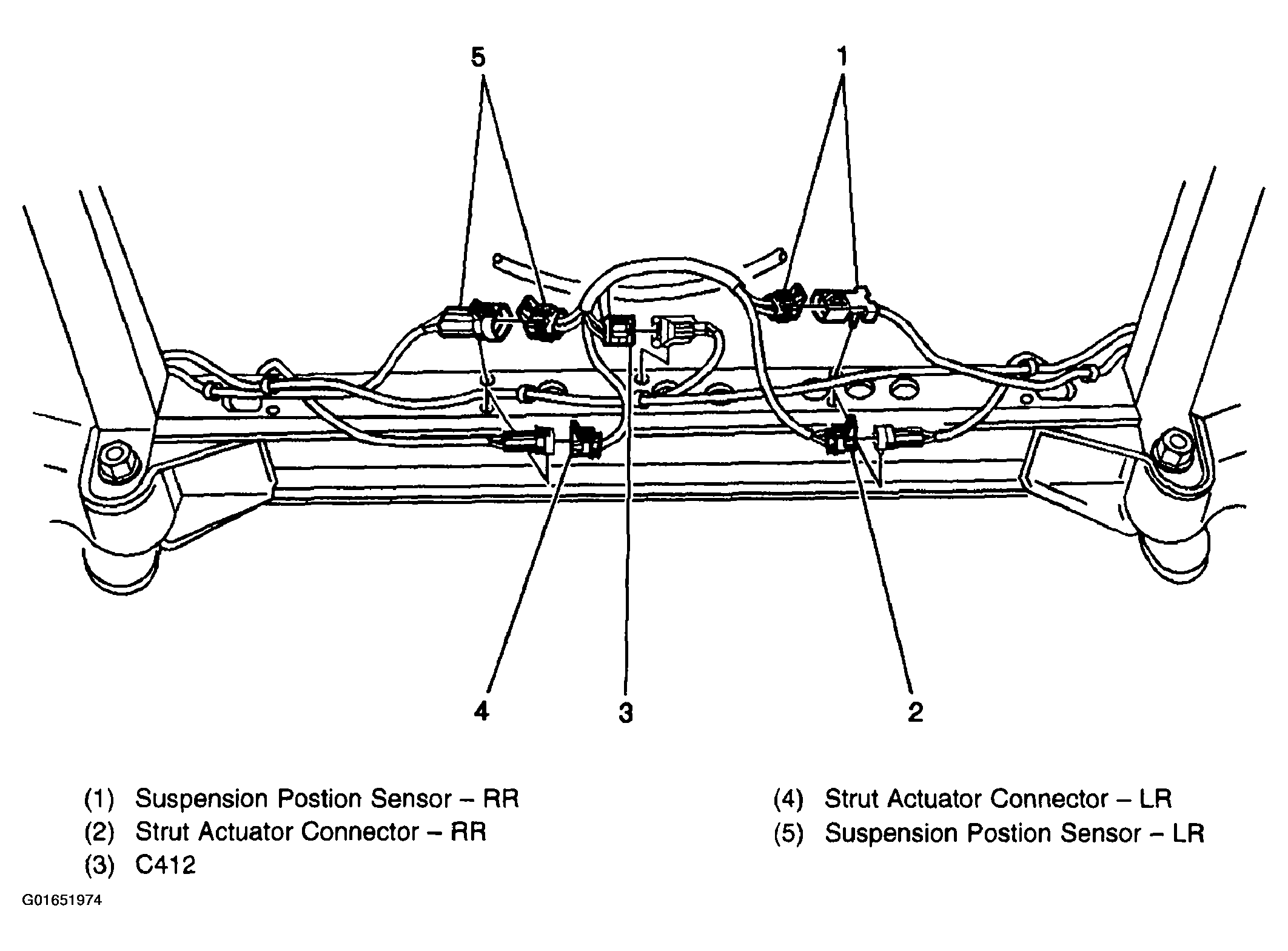

Fig 2: Rear of the Vehicle, Below the Passenger Compartment
G01651974Courtesy of GENERAL MOTORS CORP.

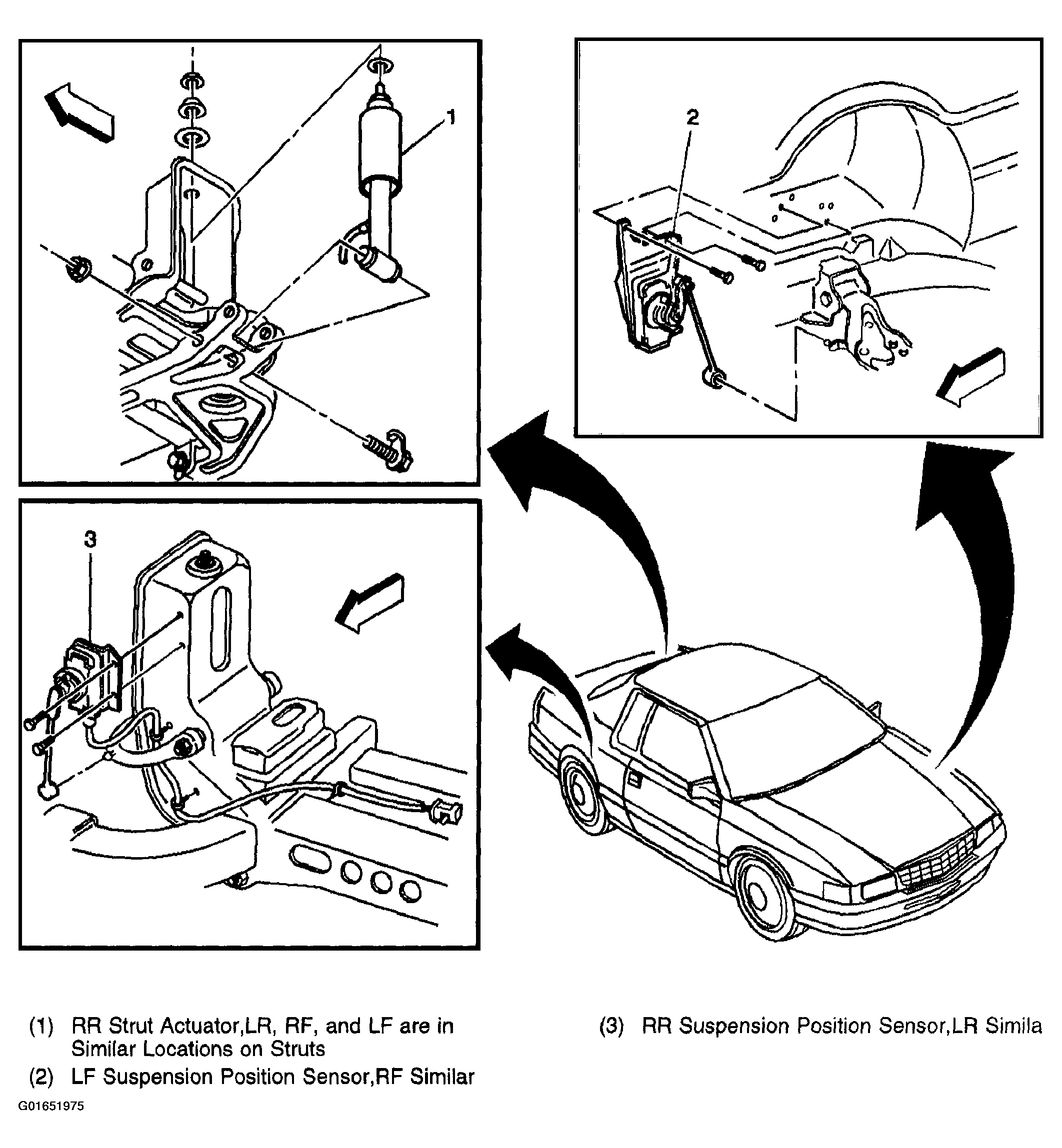

Fig 3: Suspension Position Sensors and Strut Actuators
G01651975Courtesy of GENERAL MOTORS CORP.
