Removal Procedure

CAUTION: Refer to SIR CAUTION .
  1. Disable the air bag system. Refer to DISABLING SYSTEM .
  2. Set the park brake.
  3. Remove the left console trim panel. Refer to Console Trim Panel Replacement - Left (DTS) .
  4. Remove the right console trim panel. Refer to Console Trim Panel Replacement - Right (DTS) .
  5. Remove the console center trim plate. Refer to Trim Plate Replacement - Front Floor Console (DTS) .

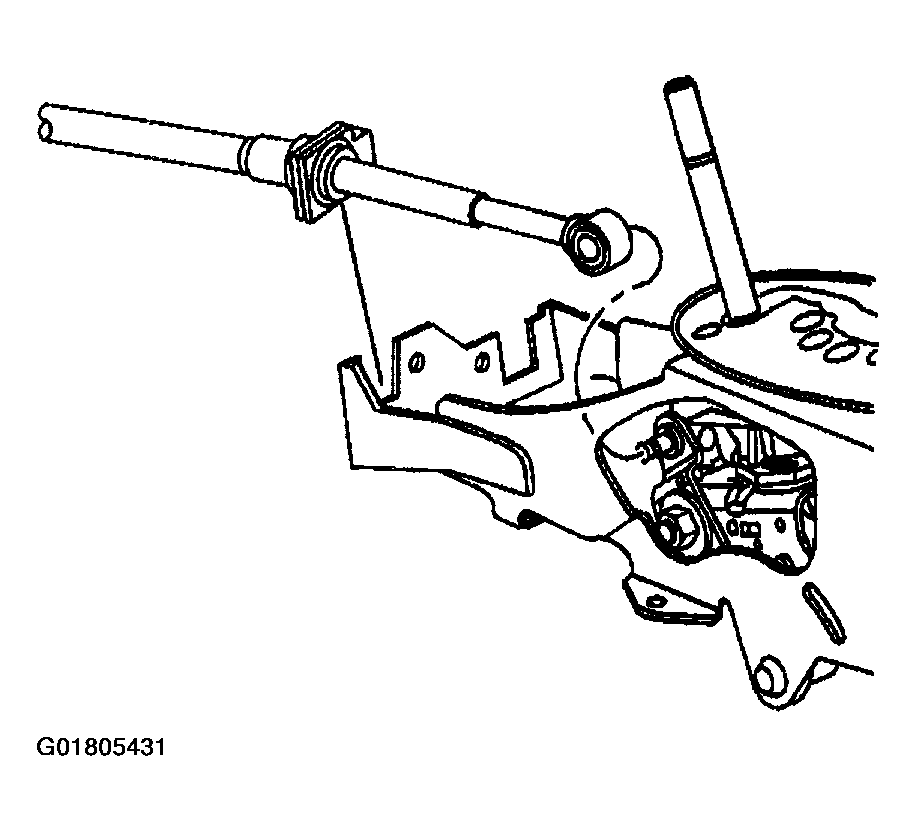

    Fig 1: Disconnecting Transaxle Range Selector Cable
    G01805431Courtesy of GENERAL MOTORS CORP.
  6. Remove the IP center compartment. Refer to Compartment Replacement - IP (Base and DHS)  or Compartment Replacement - IP (DTS) .
  7. Remove the left knee bolster. Refer to Knee Bolster Replacement - Left (Without UV2)  or Knee Bolster Replacement - Left (UV2) .
  8. Remove the right knee bolster. Refer to Knee Bolster Replacement - Right .
  9. Disconnect the transaxle range selector cable from the shift lever pin.
  10. Remove the transaxle range selector cable from the shift bracket.
  11. Remove the console bolts (1, 2) to the IP.
  12. Adjust the front seats rearward.
  13. Remove the front console to floor bolts (3).
  14. Adjust the front seats forward.
  15. Remove the rear console to floor bolts (4).
  16. Move the console rearward, in order to access the center console electrical connectors.
  17. Disconnect the center console electrical connectors.

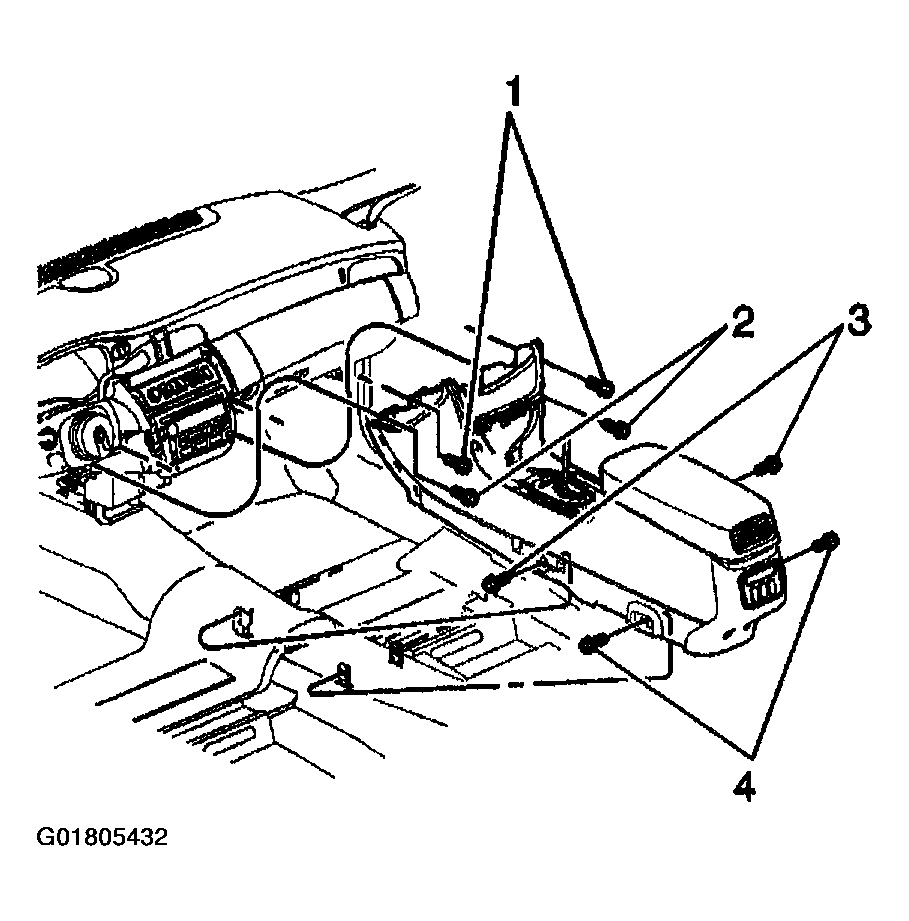

    Fig 2: Removing Console Bolts
    G01805432Courtesy of GENERAL MOTORS CORP.
  18. Lift the center console to access the Cellular phone electrical connections.
  19. Disconnect the cellular phone electrical connector (1).
  20. Disconnect the cellular phone coaxial cable (2).
  21. Remove the center console.

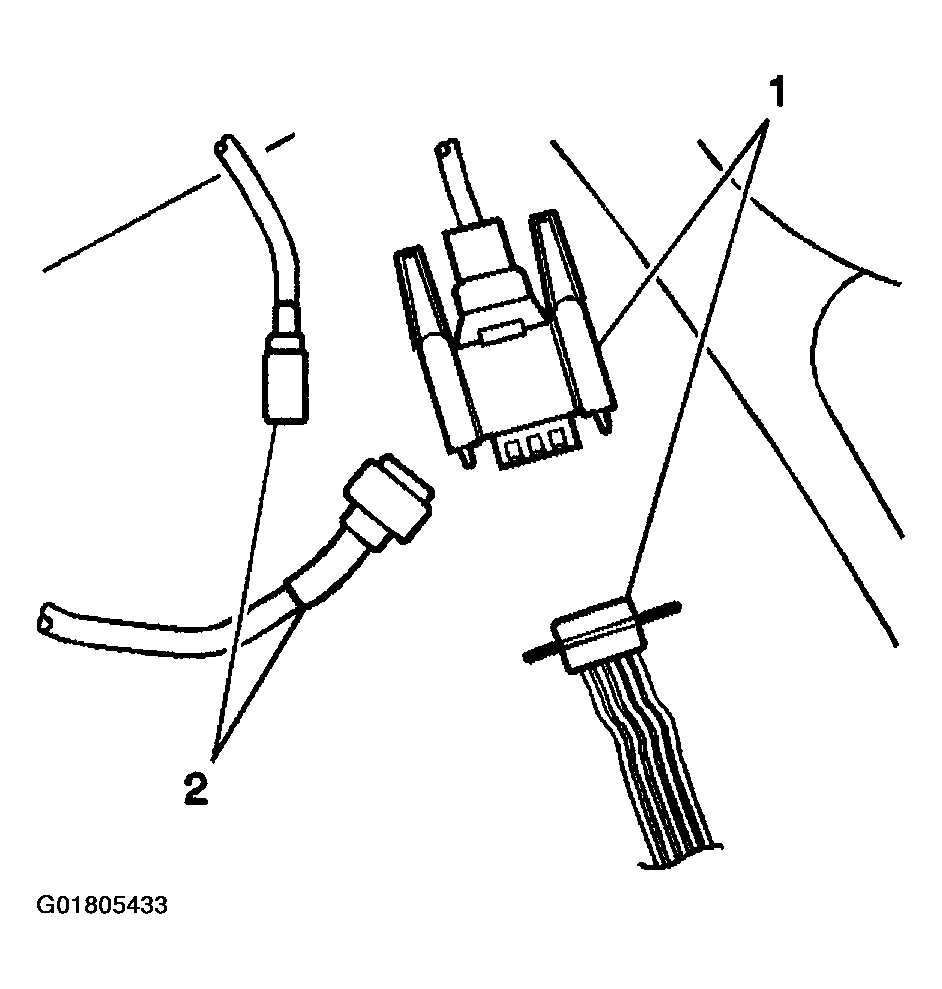

    Fig 3: Disconnecting Cellular Phone Coaxial Cable & Electrical Connector
    G01805433Courtesy of GENERAL MOTORS CORP.
