Removal & Installation (Cluster)

Remove the instrument panel upper trim pad. See Removal (Upper) . Remove the screw holding the cluster trim panel and the passenger trim panel together. See Fig 1. Remove the screws from the outside edges of the IP cluster trim panel. Disconnect the Driver Information Center (DIC) harness connectors. Remove the IP cluster trim panel. See Fig 2. To install, reverse removal procedure. Tighten the screws to 18 INCH lbs. (2 N.m).

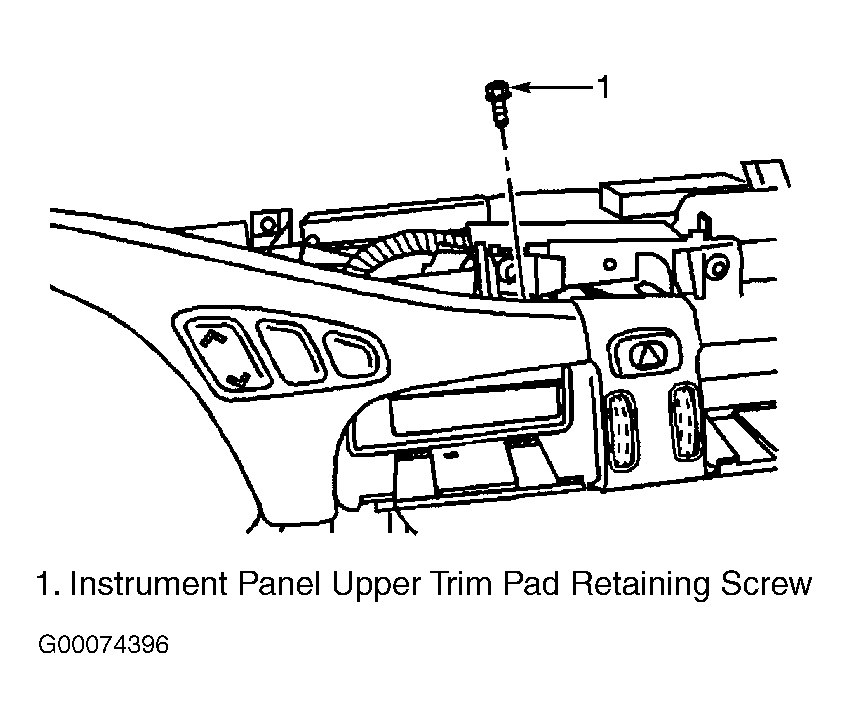

Fig 1: Removing Retaining Screw From Instrument Panel Trim Panel

Courtesy of GENERAL MOTORS CORP.

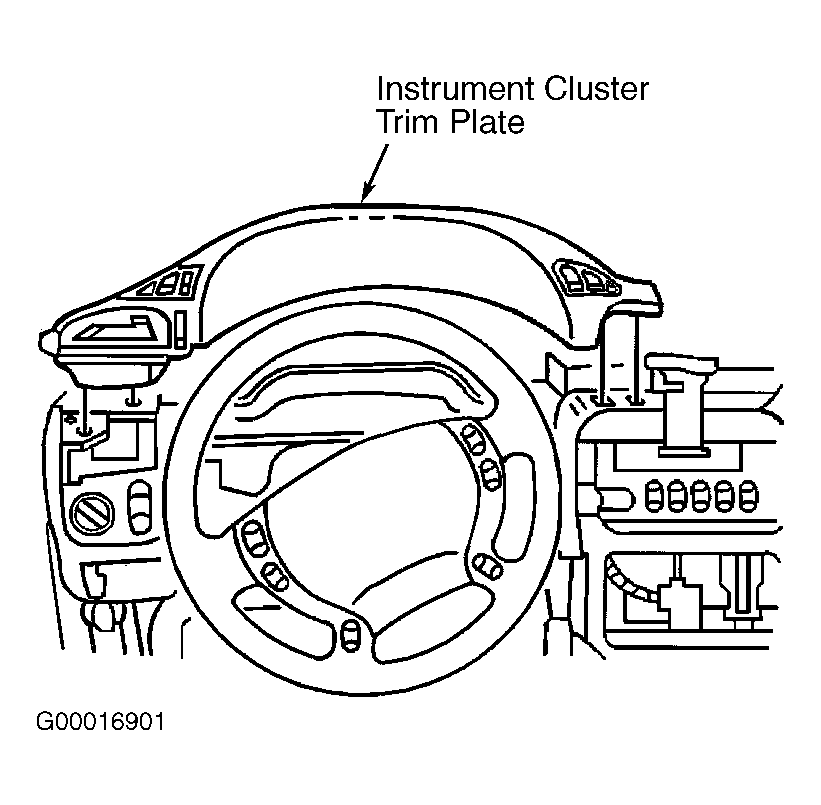

Fig 2: Removing Instrument Cluster Trim Panel

Courtesy of GENERAL MOTORS CORP.
